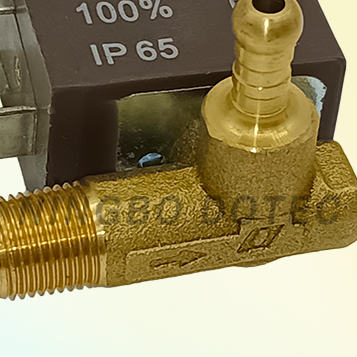

5523 CEME Type Steam Iron Solenoid Valve R1/8''
Product introduction
This is 5523 CEME Type direct acting brass solenoid valve, R1/8'' inlet, Hose Connection (6.2mm OD) outlet, 2 to 3mm orifice size, 2 way normally closed type, which is made of high-quality brass valve body. The valve diaphragm can be customized as EPDM or VITON diaphragm to adapt to different working media. This type of valve is commonly used for home applaction. We have a variety of voltage options 12VDC, 24VDC, 24VAC, 110VAC, 220VAC.
Brass valve body
The body of 5523 is made of solid brass and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.
Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation. When not powered, the valve is normally open.
Wide range of application
It can be used for househould use, such as air control, liquid control, air compressor, etc.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
| Model No | 5523 | |
| Port Size |
Inlet: R1/8''
Outlet: Hose Connection (6.2mm OD)
|
|
| Orifice Size | 2 to 3 mm | |
| Function | 2 Way Nomally Closed | |
| Operation | Direct Acting | |
| Body Material | Brass | |
| Seal Material | EPDM | FKM |
| Temperature | -30~120℃ | -30~150℃ |
| Working Pressure | 0 to 10 bar | |
| Media | Steam | |
| Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |
5523 Dimension
