2S160-15 Stainless Steel Solenoid Valve
2 year ago
1/2" 2S160-15 NC Direct Diaphragm Solenoid Valve 220VAC
Product introduction
2S160-15 1/2 inch stainless steel water solenoid valve 220VAC is suitable for air, liquid, oil, water and vacuum processing. It has direct acting without the need for differential pressure, normally closed operation, 16mm orifice size, 4.8 CV value. Diaphragm design ensures excellent shock absorption and dust removal effects. The operating temperature from -10℃ to 80℃, and seals pressure from full vacuum to 10 bar.

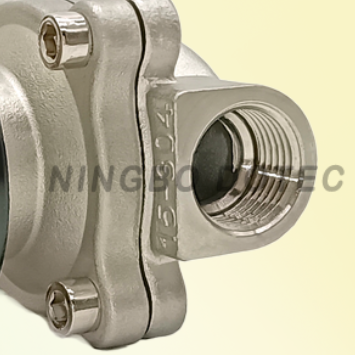

Stainless Steel valve body
The body of 2S160-15 is made of stainless steel and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.

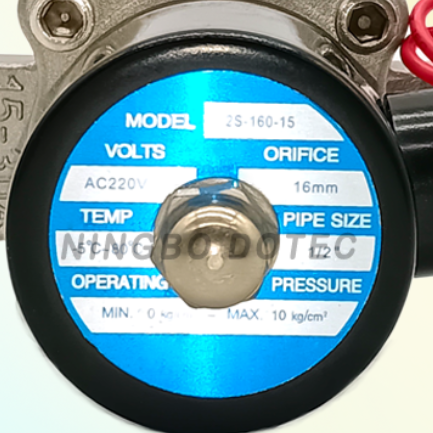

Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.

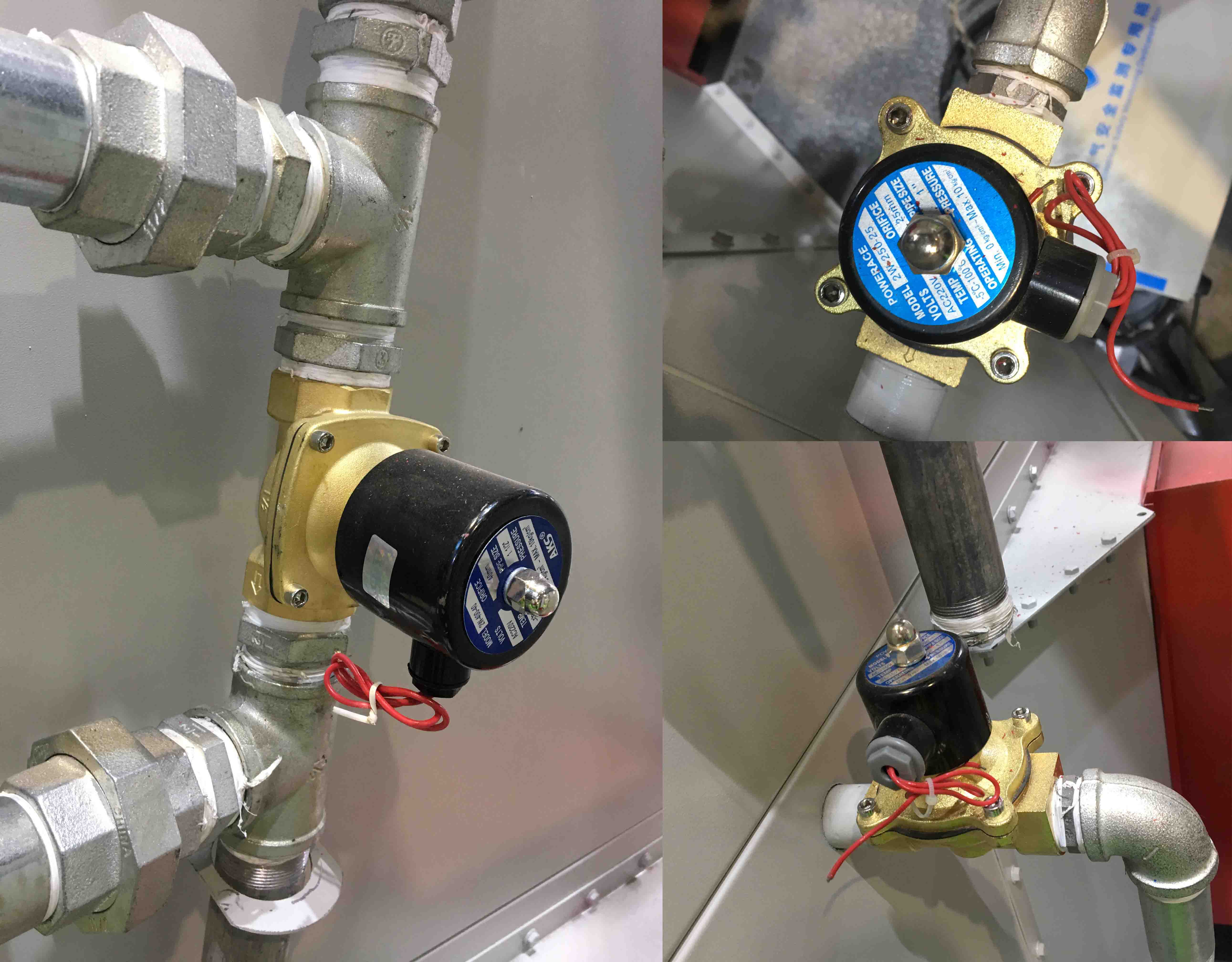

Wide application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
2S160-10 |
2S160-15 |
2S200-20 |
2S250-25 |
2S350-35 |
2S400-40 |
2S500-50 |
|
Port Size (Inch) |
3/8'' |
1/2'' |
3/4'' |
1'' |
1 1/4'' |
1 1/2'' |
2'' |
|
Orifice Size (mm) |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
|
CV Value |
4.8 |
12 |
24 |
29 |
48 |
||
|
Material |
Stainless Steel |
||||||
|
Seal |
NBR, EPDM, VITION |
||||||
|
Voltage |
12VDC, 24VD, 24VAC, 110VAC, 220VAC |
||||||
|
Fluid Viscosity |
20 CST below |
||||||
|
Working Media |
Water, Air, Oil, Gas, etc |
||||||
|
Pressure |
0 to 10 bar |
||||||
|
Operation |
Directing Acting |
||||||
|
Function |
Normally Closed |
||||||
|
Temperature Range |
NBR: -5 to 80℃; EPDM: -5 to 120℃; VITON: -10 to 150 |
||||||

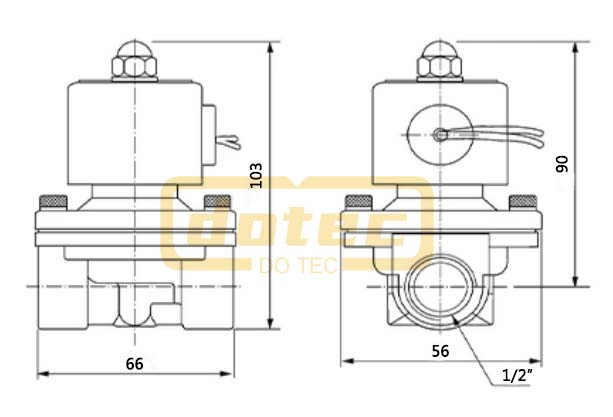

2S160-15 Dimension
