2W200-20 3/4" Diaphragm Solenoid Valve 220VAC
Product introduction
This is 2W200-20 brass water solenoid valve, 3/4" female threaded port, 20mm orifice size, 4.8 CV valve, 2 way normally closed type, direct acting diaphragm operation, 0 to 10 bar working pressure with brass body. It is standard NBR valve diaphragm, and can be customized as an EPDM or VITION diaphragm to adapt different working media. We have solenoid coil various voltages for your to choose from, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, ect.
Brass valve body
The body of 2W200-20 is made of solid brass and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.

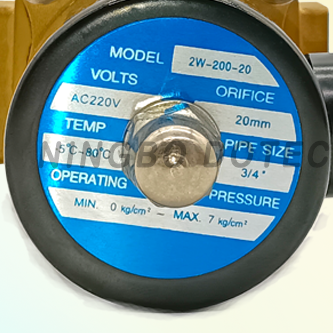

Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. The surface shell clearly and comprehensively display the specific parameters of the water valve.

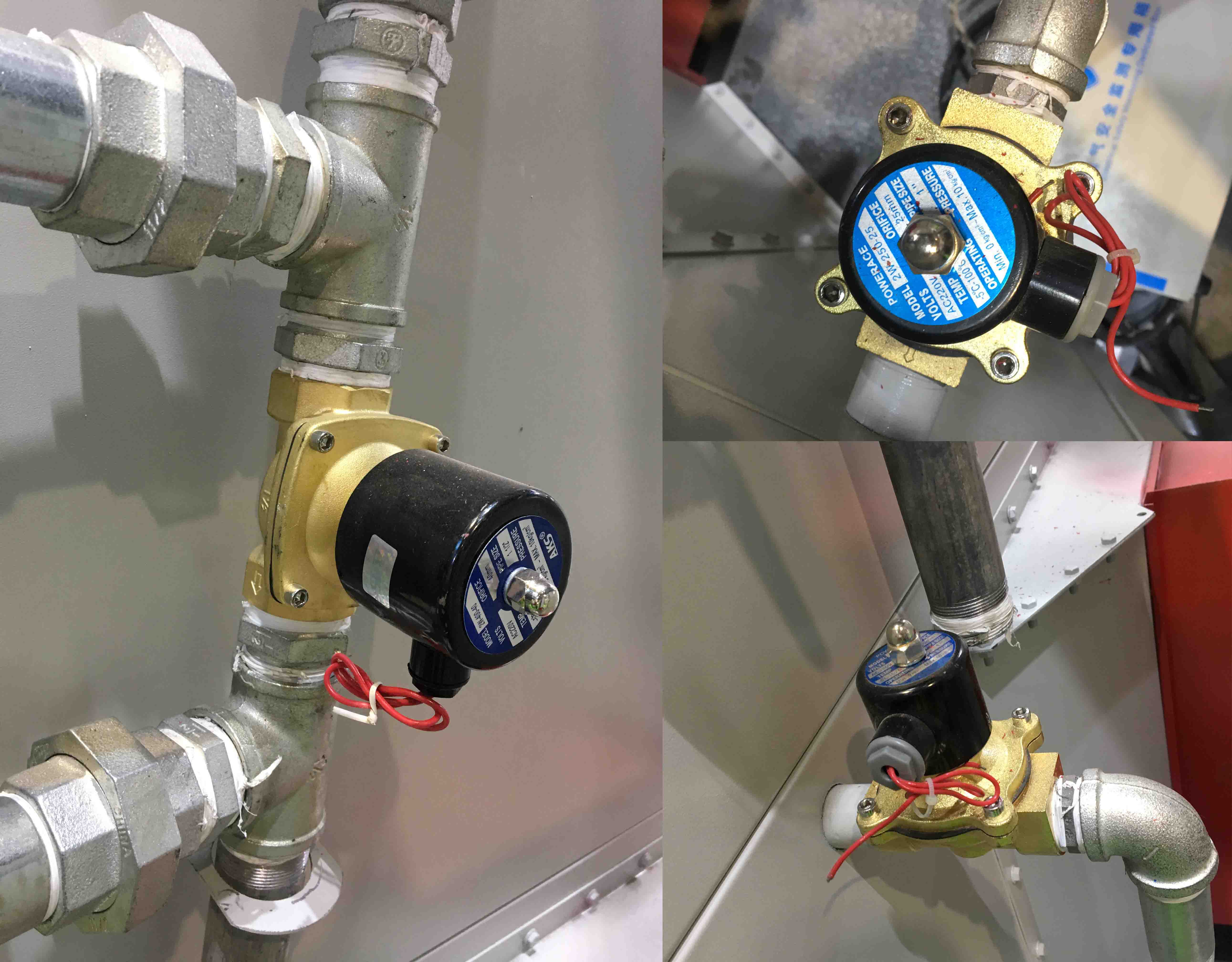

Wide range of application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control.It can be used for both industrial use and househould use, such as air control, liquid control, irrigation control, water filtration and treatment, etc.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Specification |
|||||||||||||
|
Model |
2W160-10 |
2W160-15 |
2W200-20 |

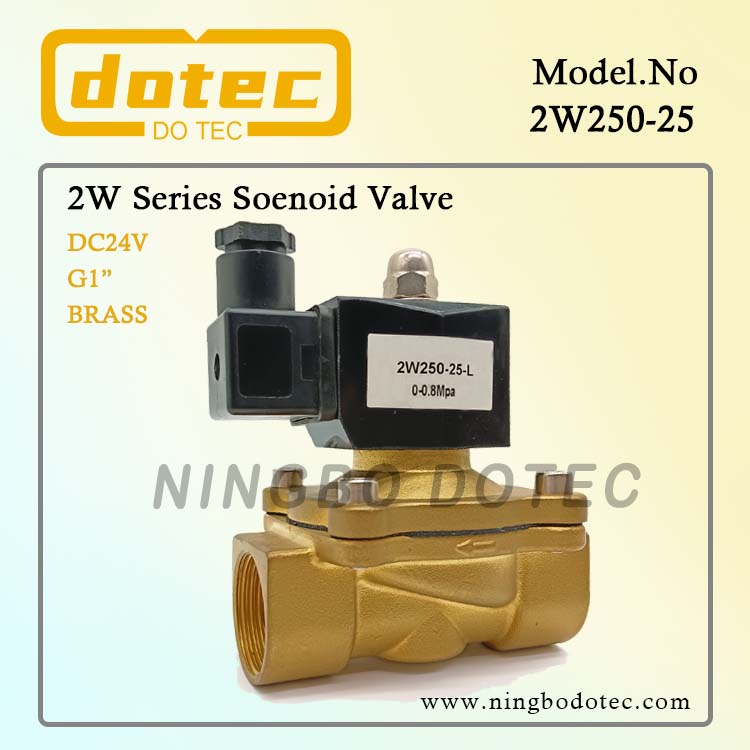

2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
||||||
|
Working Medium |
Air, Water, Oil, Gas |
||||||||||||
|
Operation |
Direct Acting, 2/2 Way |
||||||||||||
|
Acting Type |
Normal Closed Type |
||||||||||||
|
Port Size |
3/8” |
1/2” |
3/4” |
1” |
1 1/4” |
1 1/2” |
2” |
||||||
|
Material |
Brass |
||||||||||||
|
Working Pressure |
Air: 0~7Mpa, Water: 0~5Mpa, Oil: 0~5Mpa, Gas: 0~7Mpa |
||||||||||||
|
Orifice Size |
16 |
20 |
25 |
35 |
40 |
50 |
|||||||
|
CV Value |
4.8 |
4.8 |
4.8 |
12 |
24 |
29 |
48 |
||||||
|
Voltage |
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V |
||||||||||||
|
Fluid Viscosity |
20 CST Below |
||||||||||||
|
Voltage Range |
±10% |
||||||||||||
|
Material sealing |
NBR, EPDM, VITON |
||||||||||||
|
Operation Temperature |
NBR: -5~80℃, EPDM: -5~120℃, VITON: -10~150℃, SI: -15~150℃ |
||||||||||||

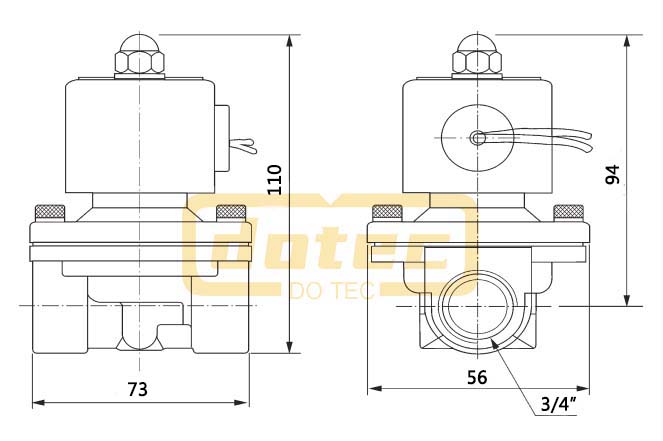

2W200-20 Dimension
About Us

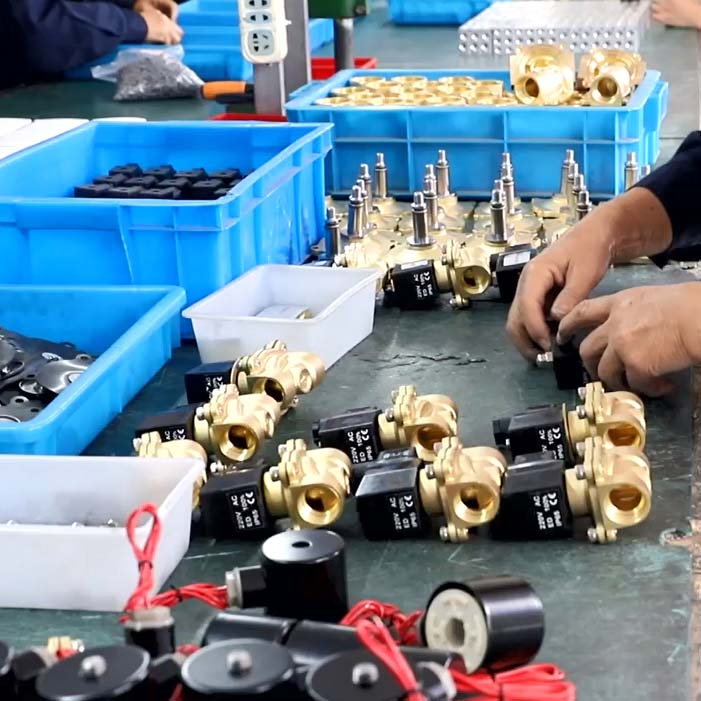

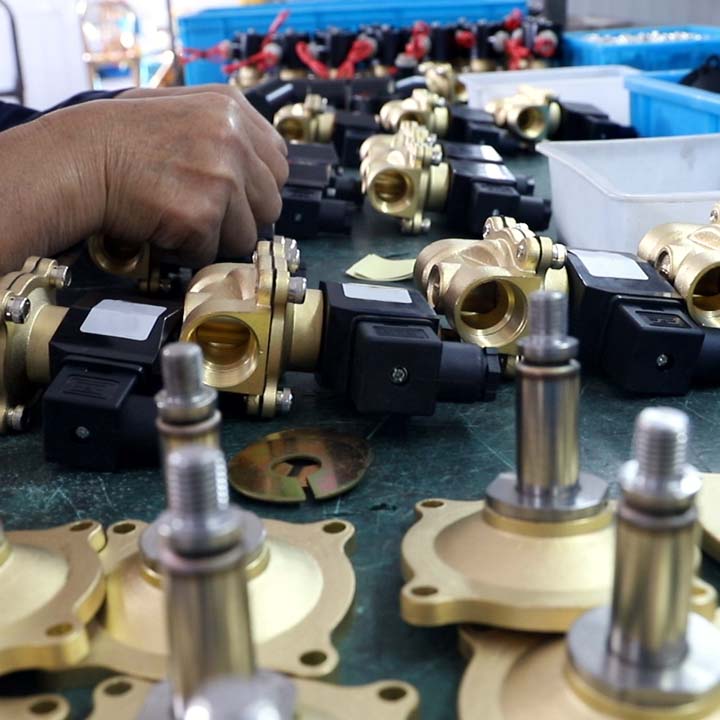

Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
