Double Ram BOP
4 month ago
Product details

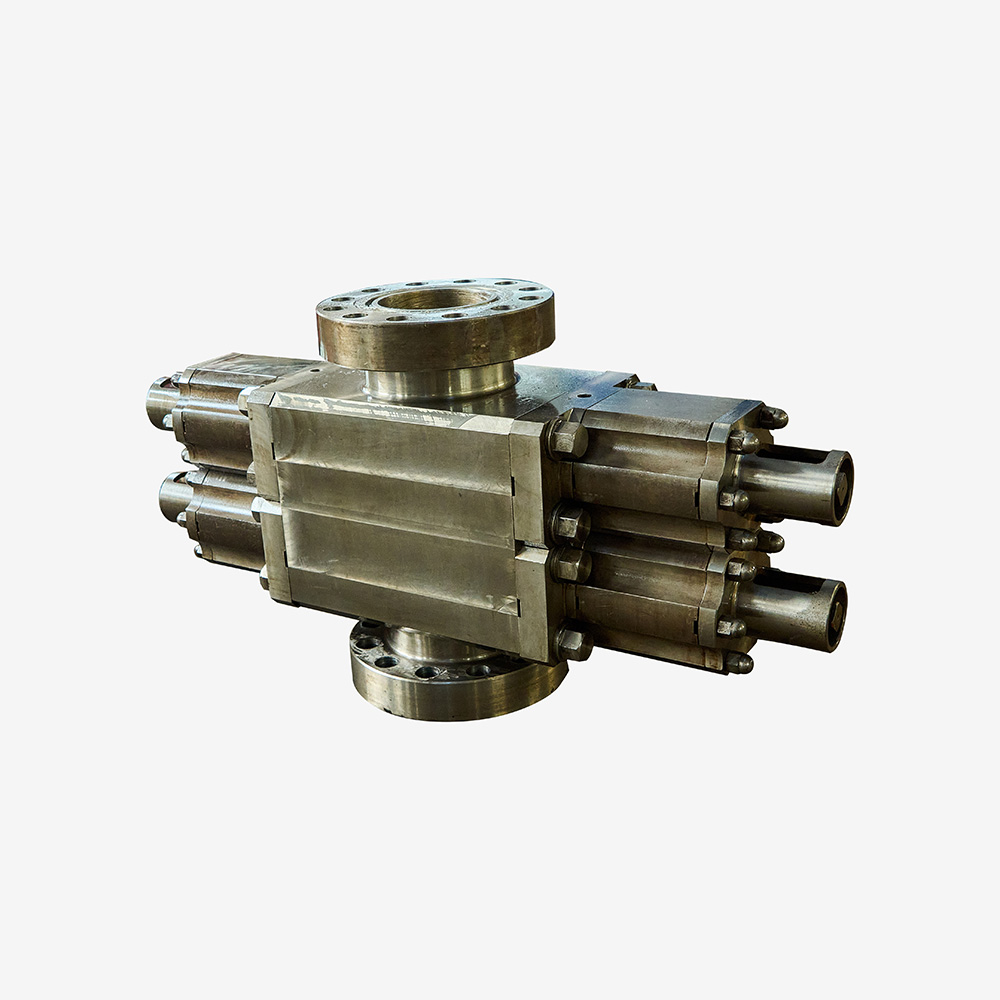

The following is a product description of 2FZ Double Ram BOP for Drilling Well System:
Structure and composition
Double ram design: The blowout preventer is equipped with two rams, usually one is a semi-closed ram, which is used to seal the annular space between the drill pipe and the wellhead; the other is a fully closed ram, which is used to completely close the wellhead when there is no drilling tool.
Structure and composition
Double ram design: The blowout preventer is equipped with two rams, usually one is a semi-closed ram, which is used to seal the annular space between the drill pipe and the wellhead; the other is a fully closed ram, which is used to completely close the wellhead when there is no drilling tool.
Product Parameters:
| Product Name: | 2FZ Double Ram BOP |
| Specification model: | 7 1/16 |
| Implementation standard: | API 6A |
| Rated working pressure: | 5000psi |
| Product specification level: | PSL1~PSL3G |
| Product performance level: | PR1~PR2 |
| Temperature level: | PU, LU |
| Material level: | AA~FF |
| Product color: | Silver |
Detail Pictures:

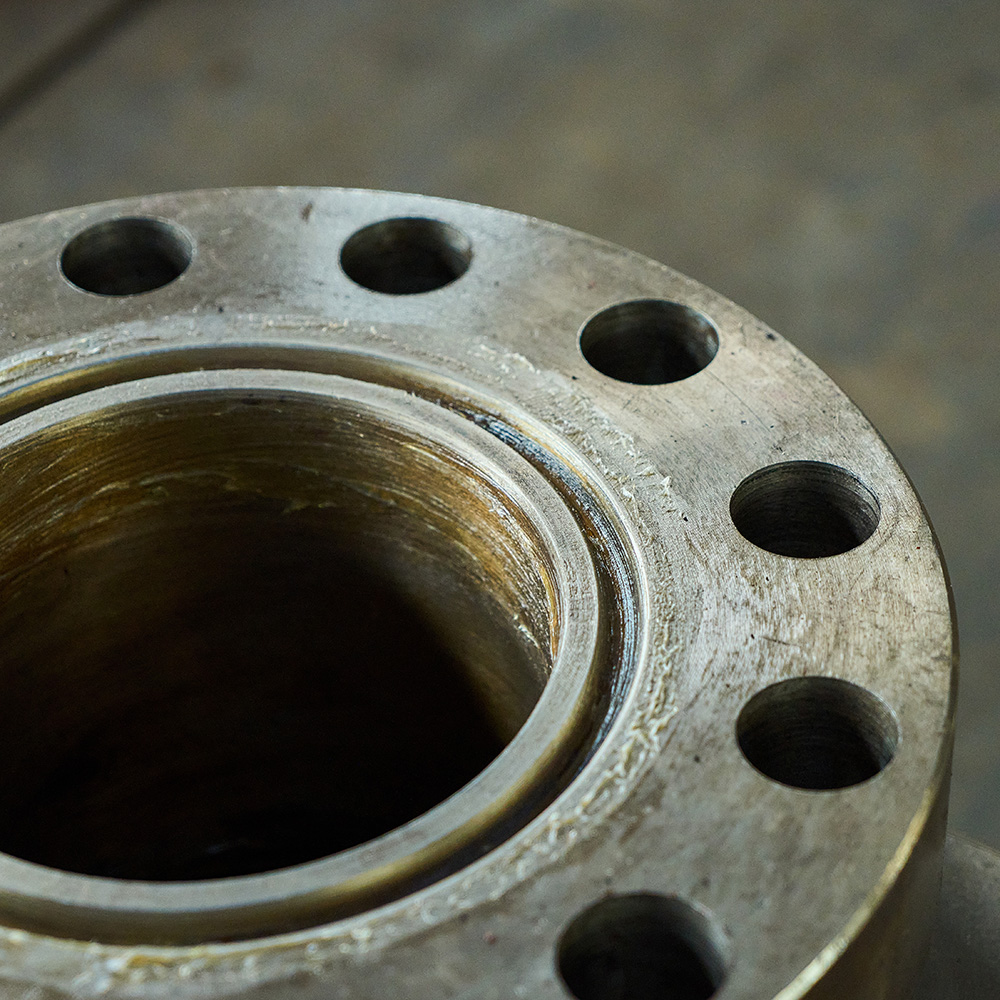

Shell and connecting parts: It has a sturdy metal shell that can withstand high-pressure environments and provide protection and support for the internal ram and other components. Its top and bottom are usually equipped with standard connecting flanges, which are convenient for connection with wellhead equipment, drilling spools and other blowout preventers or related equipment to ensure the sealing and integrity of the entire well control system.
Working principle
Hydraulic drive: Relying on the hydraulic system to provide power, the hydraulic pressure drives the piston to move, and then drives the ram to open and close. When the blowout preventer needs to be closed, the hydraulic oil enters the cylinder, pushing the piston forward, causing the gate to move toward the center of the wellhead and close, achieving the purpose of sealing the wellhead; when the blowout preventer needs to be opened, the hydraulic oil flows in the opposite direction, the piston drives the gate back to its original position, and the wellhead is restored to unobstructed.
Double sealing mechanism: There are special sealing devices between the gate and the drill pipe or wellhead, and between the gate and the blowout preventer housing. When the gate is closed, these sealing devices can effectively prevent the leakage of fluid in the well, ensuring good sealing performance even under high pressure. In addition, some 2FZ double gate blowout preventers are also equipped with secondary sealing devices as an emergency sealing means, which can provide additional sealing protection when the main seal has problems.
Main features
High pressure resistance: It can withstand higher wellhead pressure and adapt to the drilling operation requirements of different depths and pressure conditions. Usually, its rated working pressure can reach 35MPa or even higher. The specific pressure level will depend on different models and application scenarios.
Good sealing: The use of high-quality sealing materials and advanced sealing design ensures that reliable sealing effects can be maintained during long-term use, effectively preventing the occurrence of blowout accidents, protecting personnel safety and the environment from pollution.
Quick response: The hydraulic drive system can realize the rapid opening and closing of the gate, and can quickly close the wellhead in an emergency to minimize the harm of blowout accidents. Its closing time is usually between a few seconds and more than ten seconds, depending on the specifications of the blowout preventer and the performance of the hydraulic system.
Applicable scenarios
Oil and gas drilling: It is widely used in oil and gas drilling operations on land and at sea. Whether it is a vertical well, an inclined well or a horizontal well, it can provide reliable well control for the drilling process. During the drilling process, when encountering abnormally high formation pressure, drilling fluid leakage or other situations that may cause blowouts, the 2FZ double gate blowout preventer can quickly close the wellhead, control the pressure in the well, and ensure the safety of drilling operations.
Well repair: During the repair and maintenance of oil wells, such as replacing downhole tools, dealing with pipe blockage or taking production increase measures, blowout preventers are also needed to prevent fluid from blowing out of the well. 2FZ double gate blowout preventer has also been widely used in well repair due to its compact structure and convenient operation.
As a petroleum machinery manufacturer, our company also produces Blowout Preventer, Manifold, Cellar Connection, Valve, Pipe Fitting and Control Apparatus, etc.
If you need, please contact us.
