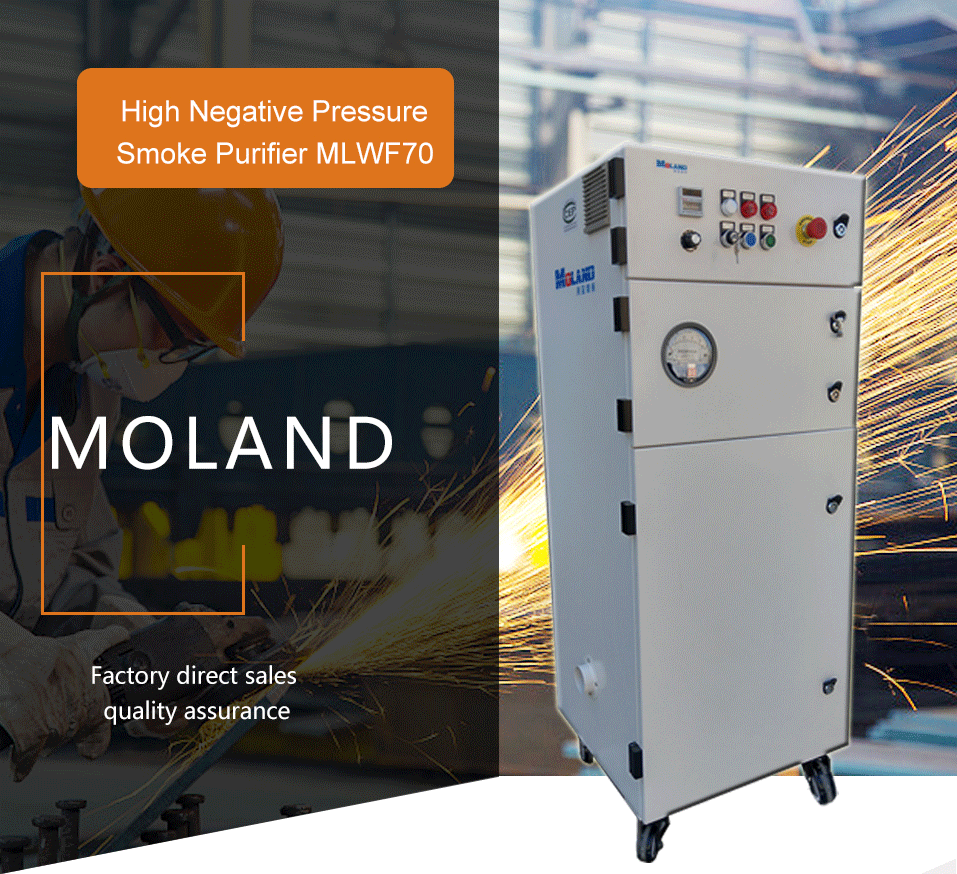

MLWF70

To generate clean air, a dust extractor requires a large volume flow and a low negative pressure. In order to be able to extract dust from surfaces, an industrial vacuum cleaner, on the other hand, requires a high negative pressure, but a low volume flow.

To generate clean air, a dust extractor requires a large volume flow and a low negative pressure. In order to be able to extract dust from surfaces, an industrial vacuum cleaner, on the other hand, requires a high negative pressure, but a low volume flow.To generate clean air, a dust extractor requires a large volume flow and a low negative pressure. In order to be able to extract dust from surfaces, an industrial vacuum cleaner, on the other hand, requires a high negative pressure, but a low volume flo

1- Integral structure, flexible and convenient to move.

2- Brushless DC motor, Schneider electric control.

3- High suction ad low noise.

4- Anti-suction device to make the effect of ash cleaning more thorough.

5- Remote control port, which can realize automatic linkage.

6- Fan speed is adjusted by potentiometer to adjust suction.

7- Power supply condition monitoring: alarm of fault phase overvoltage and undervoltage.

8- Preventing damage to motor and electrical components.

9- Pressure condition monitoring: alarm of low pressure of gas source to prevent incomplete ash cleaning, differential pressure meter visual display filter element.

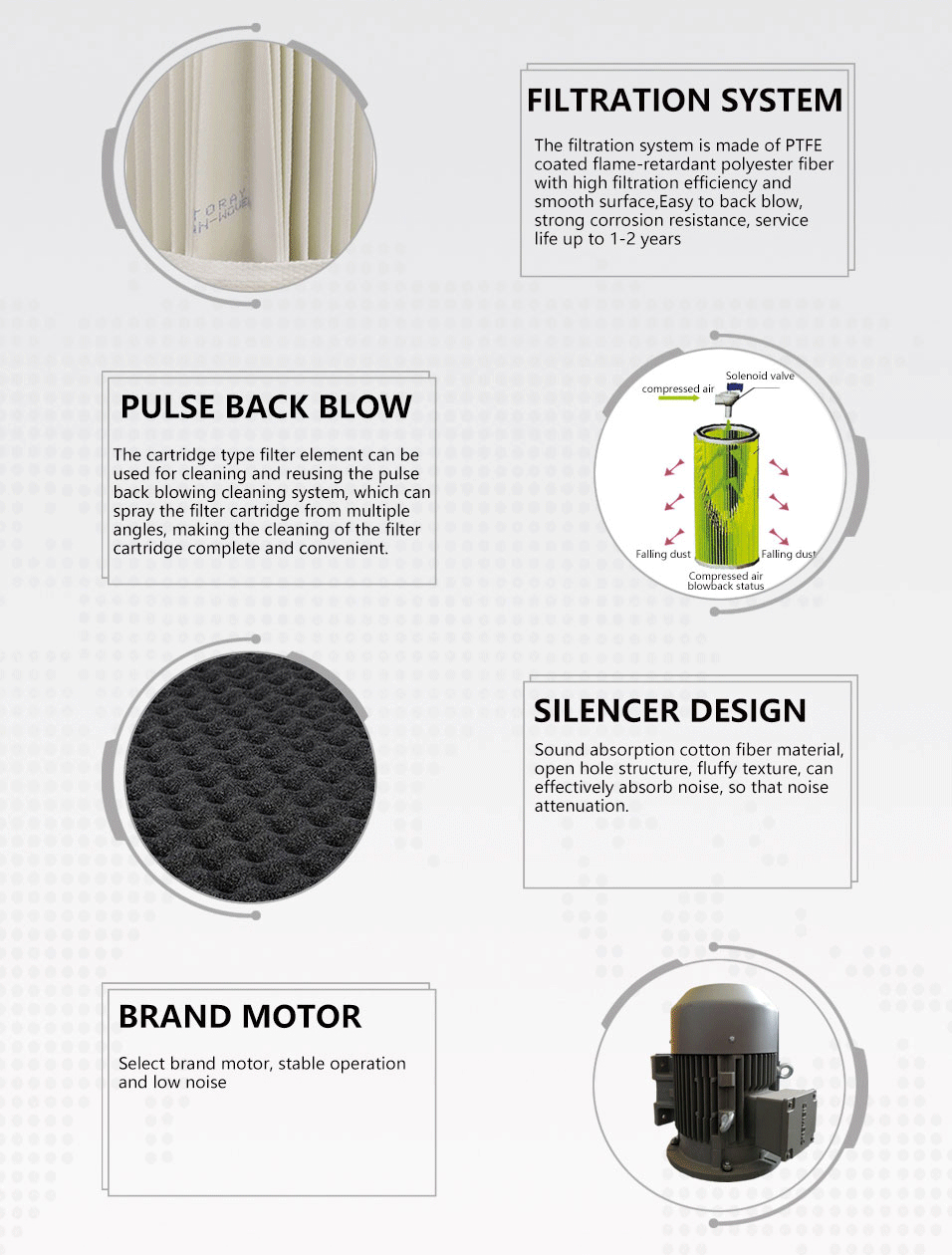

10- Automatic pulse back blowing with excessive pressure difference in service state.

1- Filtration efficiency (>99.9%) of main filter core (imported coated polyester fibers)

2- Fault phase protection, overload protection and air pressure monitoring device

3- IO port (remote control)

4- Pulse controller

5- Differential pressure gauge

6- 20L dust collection drawer

7- Left and right air intake (Dia.40~60mm)

8- 10m suction hose (Dia.40mm)

9- 5m power cord

10- Spark trap (large particle dust pre-filter)

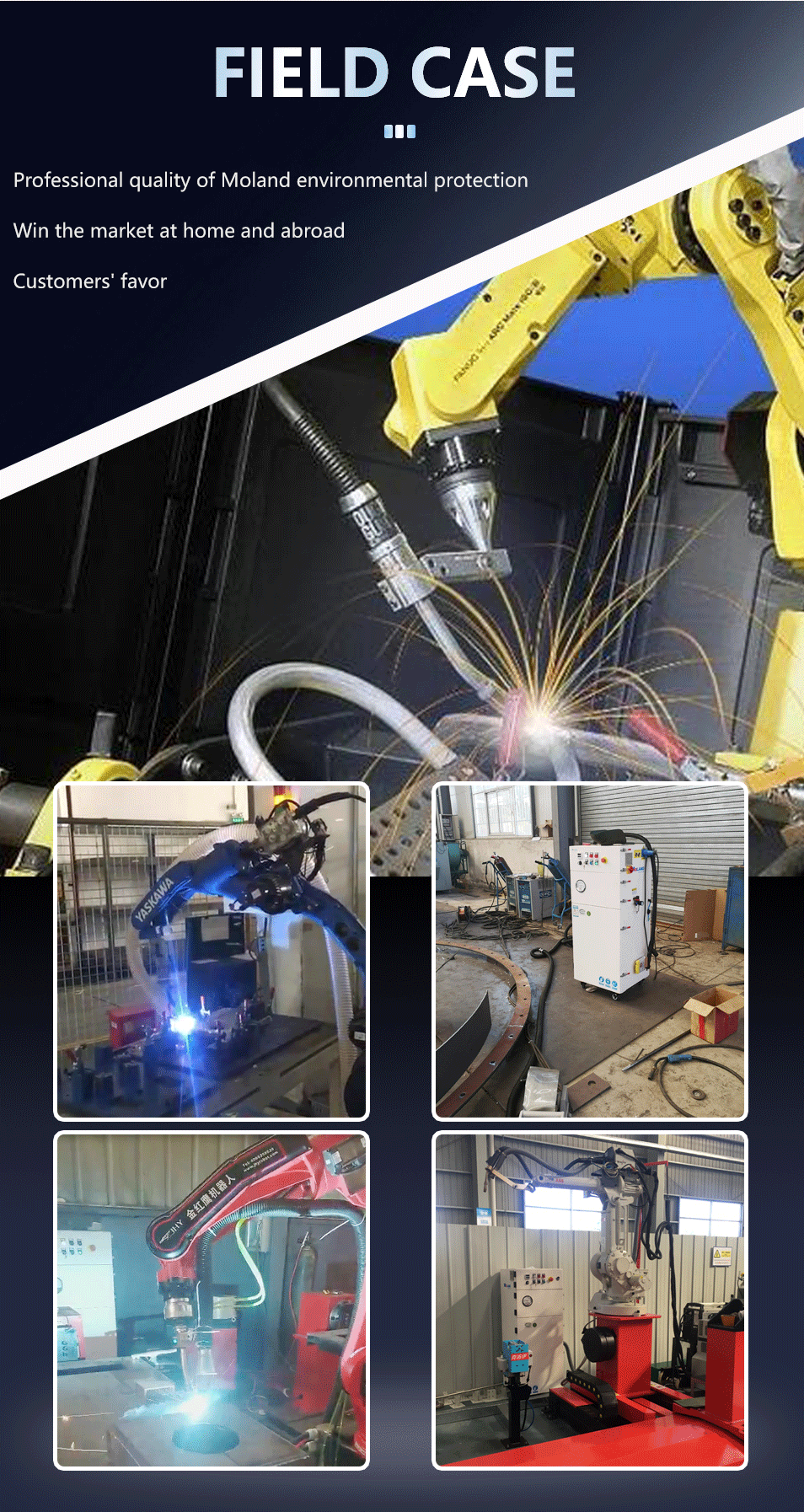

Welding robot

Manual welding (environmental protection welding gun)

Hand-held grinding, polishing, etc.

Suitable for welding dust, polishing dust and other working conditions.

Moland is a professtion manufacurer of industrial dust collection system. We mainly supply Mobile Fume Extractor, Centralized Fume Extraction Systems, CNC Cutting Fume Extraction Systems, Grinding And Polishing Dust Collector, Oil Fume Odor Purifier, etc. We have professional technical team to design the most suitable dust collection solution according to your workshop condition.
