Product details

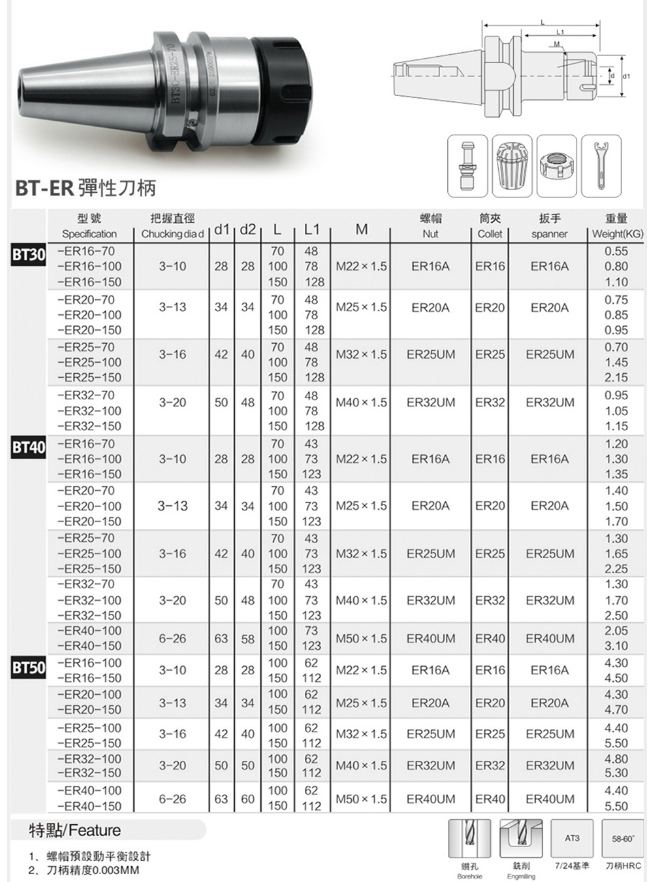

BT spring chuck toolholder,BT ER Collet Chuckcan be used for drilling, milling, twisting, tapping and other processing, with strong practicability and high cost performance. The unique double-layer positioning clamping mode is designed, the front and rear end stop of the thread is added, the rigidity of the handle is increased by 30%, the anti vibration knife has excellent dust-proof effect.

1.BT Collet Chuck Material：20CrMnTi

2.BT Tool Holder Hardness：58-60HRC
3.Taper：≤AT3
4.Ra:＜0.5
5.Depth of Carburizing：0.8mm±0.2mm
6.Tool Holder Run-out Accurancy：≤2μ
7.T.I.R Accurancy：≤5μ
8.Revolving Speed：≤15000rpm

9.Tool Holders For Cnc Machines Bal/rpm：G2.5 30000rpm

BT ER SPRING COLLET CHUCK
