drill chuck.mp4
4 year ago

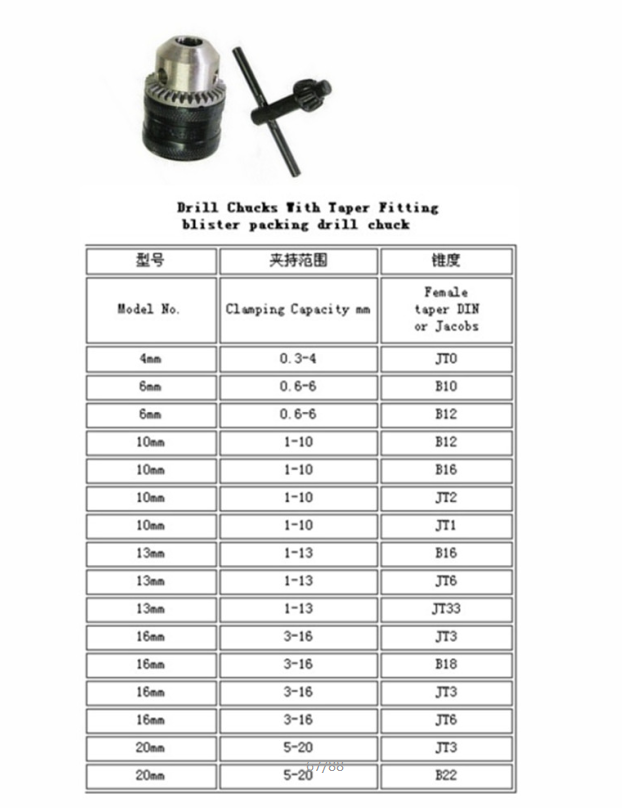

Machine tool accessories key type drill chuck heavy duty ,tool holder for high precision spanner drill chuck is connected with the tool, is used to clamp the handle type tool accessories. Key Type Drill Chuck There are two connection ways: threaded connections and taper connection. According to the specifications of the chuck now, specifications of the main thread of the 3/8-24UNF, 1/2-20UNF, 5/8-16UN, M12 * 1.25. Taper hole connection are mainly B10, B12, B16, B18, B22 and JT0, JT2, JT3, JT6, JT10, JT33 and other specifications. Threaded connection is mainly used for electric drill, drilling machine is mainly used for connecting taper hole.
drill chuck Product information
1. Key Type Drill Chuck Suitable for medium and heavy drilling
2. Applied to milling machine, lathe, drilling machine, woodworking machinery
3. Ability to withstand high speed cutting
4. Keytype Drill Chuck Material: 20CrMnTi
5. Hardness: 56-58HRC
6. Provide two kinds of appearance: sandblasting appearance and coating treatment.
7. When drilling, tighten the chuck slightly, strengthen the grip force and increase the torque, increase the grip force obviously and prevent the bit from moving.
Key Type Drill Chuck Application:
Recommended for light, medium and heavy-duty portable bench or floor mounted power tiils
|
1. Thread Mount: Unf. Metric |
|||
|
Model |
Capacity |
Mount |
|
|
mm |
Inch |
||
|
J3110M |
1.0-10 |
1/32-3/8 |
3/8-24UNF |
|
J3110M |
1.0-10 |
1/32-3/8 |
1/2-20UNF |
|
J3113M |
1.0-13 |
1/32-1/2 |
1/2-20UNF |
|
2. Moese Taper Mount |
|||
|
Model |
Capacity |
Mount |
|
|
mm |
Inch |
||
|
J2110H |
1.0-10 |
1/32-3/8 |
B12 |
|
J2113H |
1.0-13 |
1/32-1/2 |
B16 |
|
J2516M |
3.0-16 |
1/8-5/8 |
B16 |
|
J2516M |
3.0-16 |
1/8-5/8 |
B18 |
|
J2116H |
1.0-16 |
1/32-5/8 |
B16 |
|
J2116H |
1.0-16 |
1/32-5/8 |
B18 |
|
J2120H |
5.0-20 |
3/16-3/4 |
B22 |
|
3. Jacquard Taper Mount |
|||
|
Model |
Capacity |
Mount |
|
|
mm |
Inch |
||
|
J2210H |
1.0-10 |
1/32-3/8 |
JT2 |
|
J2213H |
1.0-13 |
1/32-1/2 |
JT33 |
|
J2213H |
1.0-13 |
1/32-1/2 |
JT6 |
|
J2616M |
3.0-16 |
1/8-5/8 |
JT3 |
|
J2616M |
3.0-16 |
1/8-5/8 |
JT33 |
|
J2616M |
3.0-16 |
1/8-5/8 |
JT6 |
|
J2216AH |
1.0-16 |
1/32-5/8 |
JT3 |
|
J2220 |
5.0-20 |
3/16-3/4 |
JT3 |
