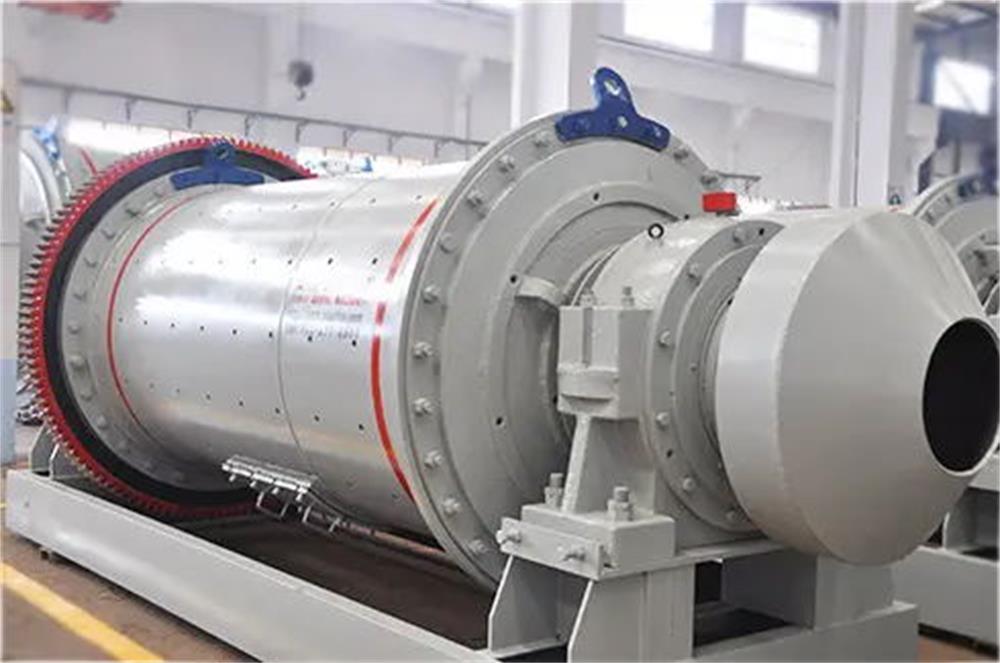

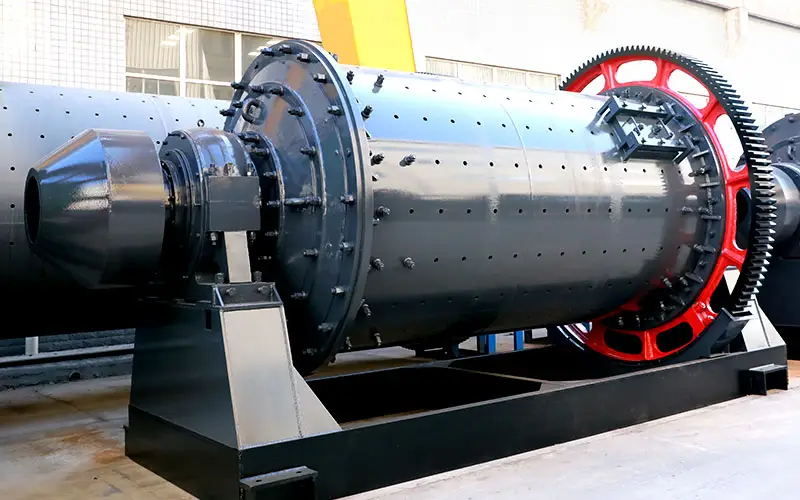

Grinding Ball Mill

Ball Mill Grinder Grinding Mill Machine

Grinding Ball Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements.

Company Overview

Our company mainly produce mining machinery, construction machinery and other relevant series of equipment. The products have passed ISO9001:2000 international quality management system certification and EU CE certification. The products are exported to Russia, Kazakhastan, Azerbaijan, Turkey, Kuwait, South Africa, Egypt, Vietnam, Malaysia, India, Australia, Canada, the European Union and other countries and regions.

Company Photos

Product Description

The Stone Powder Making Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Features of Cone Crusher

1. The Grinding Ball Mill is used to grind many kinds of mine and other materials, or to select the mine

2. There are two ways of grinding: the dry way and the wet way

3. To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media

4. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours

5. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs

6. Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals

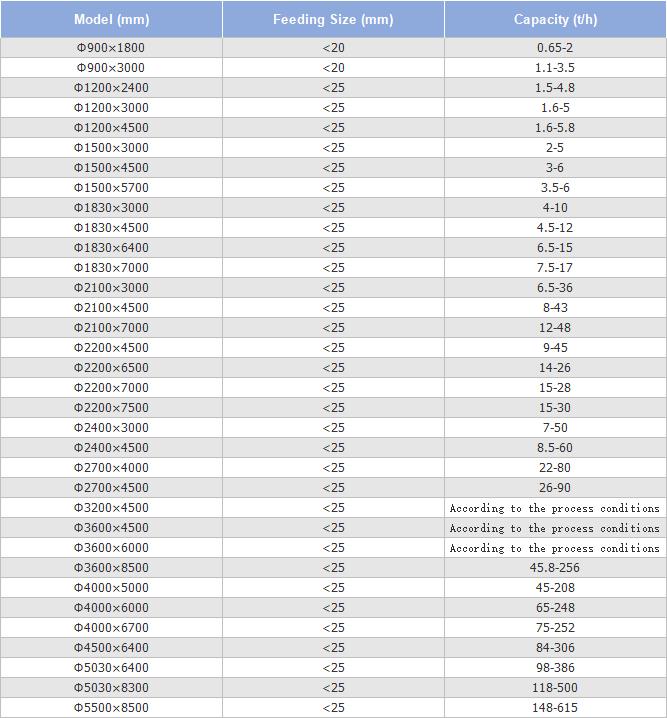

Main Technical Parameters

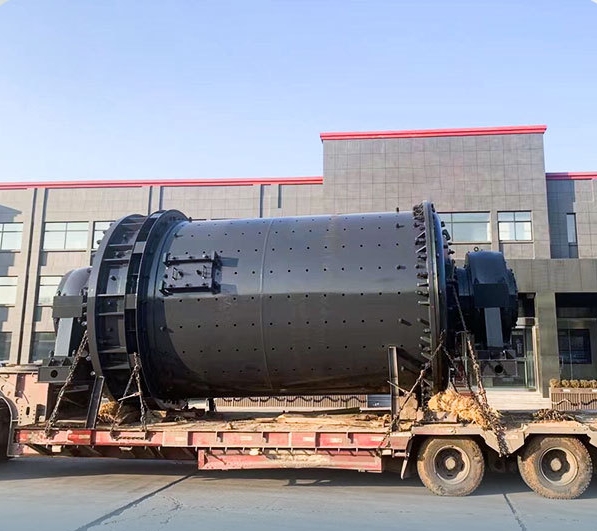

Packing & Shipping

After Sales Service

After-sale service 1

Our factory will prepare jaw crushers after receiving the down payment. Normally, after 5-25days preparing time, my factory will finish the machines' preparing, and then test machines for you, and I will send the testing effect to customers. Then after customers are satisfied with the testing effect, then customers will plan to send the down payment to my factory, then we load machines for customers.

After-sale service 2

After customers receiving the machines, my factory will dispatch technicians to install machines for customers, and teach customers how to operate machines.

FAQ

1.How to buy a machine i want to have ?

Please tell us more details if you like, normally, we need: a, what kind of the stone it is, b, how about the input size and output size you want, c, capacity. d, Any other requirement.

2.How about the quality guarantee?

Our material is checked carefully before buy them from brand supplier, so that guarantee the original quality. During the producing, every step will be recorded. When we get the finished products, we have more than 24 hours testing. Products quality is guaranteed for one year. We have a 24 hours response system, any thing the customer required will be handled with within 24 hours. If the customer required, we can get the project place within 72 hours.

3.How to get the wear parts supports?

We supply the wear parts with very favourable price. Especially for the present cooperated customer, wear parts will be supplied without any benefits as a long-terms cooperation support.

4.Our advantage:

A, quality guarantee but cost less. B, Good after service and no benefit supply in wear part. C, 12 hours response to customers' requirement and 72 hours technician on site guiding.

If you are interested in our High Rotation Speed Cone Crusher, welcome to ask us for more details.
