stainless steel perforated metal Mesh perforated mesh filter cylinder1

stainless steel perforated  metal mesh filter cylinder /  perforated  metal  sheet

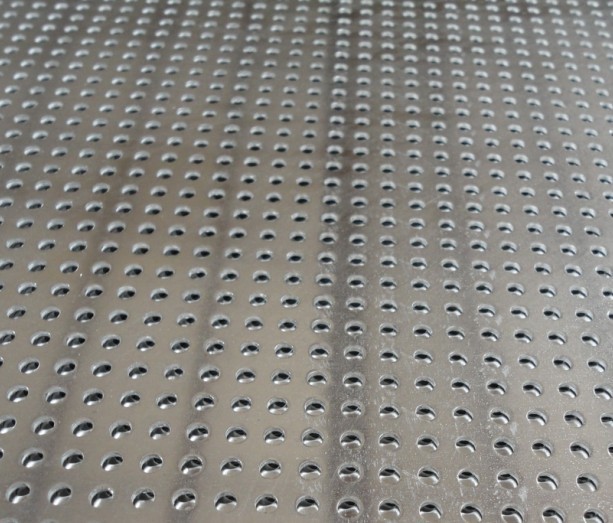

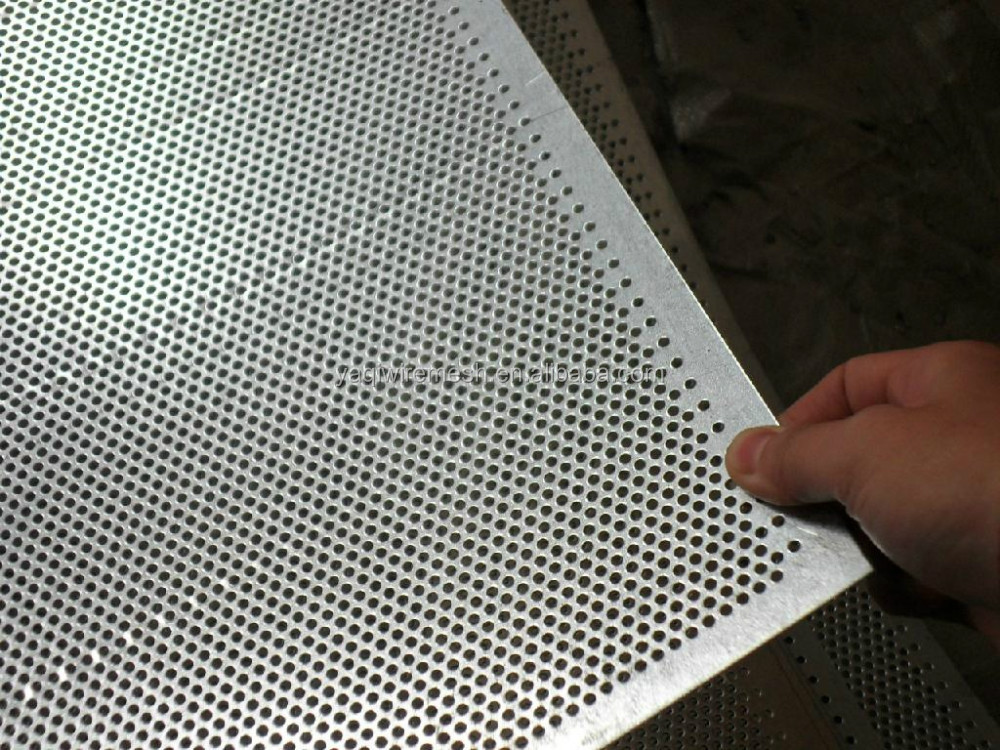

Perforated metal information: Perforated metal mesh usually used galvanized steel, stainless steel, copper steel, aluminum steel, nickel steel and alloy steel as material. We have advanced CNC equipment, our products made by model. Our products have the advantage of high precision, small error and good quality. The punch diameter from 0.3mm to 100mm, and made thickness equal diameter, namely the thickness 0.5mm can punch diameter 0.5mm.

Feature of perforated metal:

• Easily process. There are a variety selection of plate thickness, pore size and arrangement.
• Beautiful appearance, our products through painting or polishing have the advantage of abrasion resistance and long service life.
• Uniform mesh and smooth surface.
• Low cost, easy to install.

Material: The raw material usually is stainless steel carbon plate, galvanized plate and cold rolled coil, etc.

The classification of perforated metal:

Galvanized perforated metal

Galvanized Perforated Metal is made of high quality low carbon Galvanized steel sheet after being perforated on the digital control perforated machines. Galvanized Perforated Metal has the features of good strength-to-weight ratio, wide range of open area percentages, accurate hole size, available in corrosion resistant materials, available in lightweight material and suitable for decorative applications.

Specification:

• The thickness of coil from 0.2mm to 1mm, the length from 1m to 20m, the diameter from 0.8mm to 10mm.
• The thickness of plate from 0.3mm to 10mm, size 1.53m, the diameter from 0.8mm to 100mm. Specific style according to customer requirements.

Process of Perforated Metal:

• Hot-dipped galvanized perforated metal. Immersed thin steel plate into the zinc bath, adhesion to the surface layer of zinc. Currently the main use is production of continuous galvanizing process, that is a continuous roll of steel immersed in melted zinc plating bath is made with galvanized steel.

• Electro galvanized perforated metal. This kind of perforated metal have a good ability of processed. However, thinner coatings, corrosion resistance than hot-dip galvanized perforated metal sheet.

Stainless steel perforated metal

Stainless Steel Perforated Metal is made of high quality Stainless Steel sheet/coil after being perforated on the digital control machines. Stainless Steel Perforated Metal is used in a variety of corrosive atmospheres; its long life pays back its seemingly high cost.

Specification: The thickness of coil from 0.2mm to 0.7mm, the length from 1m to 20m, the diameter from 2mm to 20mm. The thickness of plate from 0.3mm to 3mm, the minimum aperture is 0.6mm

Aluminum perforated metal

Aluminum Perforated Metal is made of high quality aluminum sheet/coil after being perforated on the digital control perforated machines. Aluminum perforated metal has the features of good strength-to-weight ratio, wide range of open area percentages, accurate hole size, available in corrosion resistant materials, available in lightweight material and suitable for decorative applications.

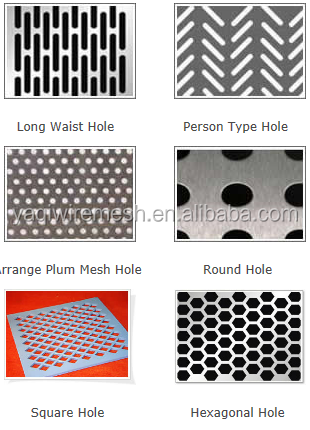

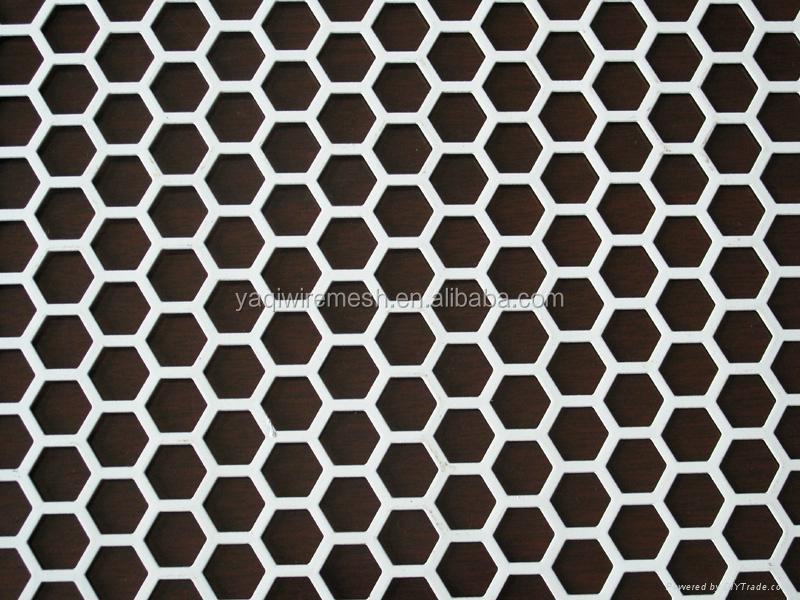

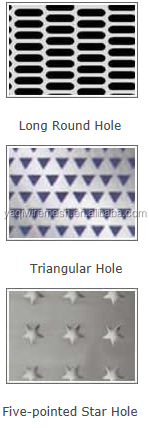

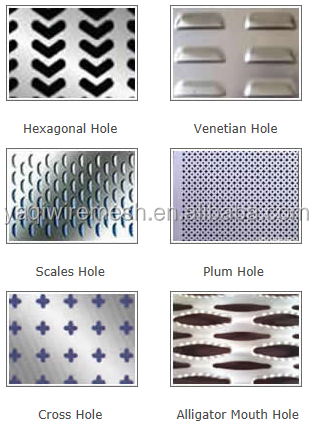

Hole shape: Round hole, square hole, long round hole, triangle hole, scale hole, diamond hole, oval hole, hexagonal hole, slot hole, and so on.  We  can  customize  according  to  your  design.

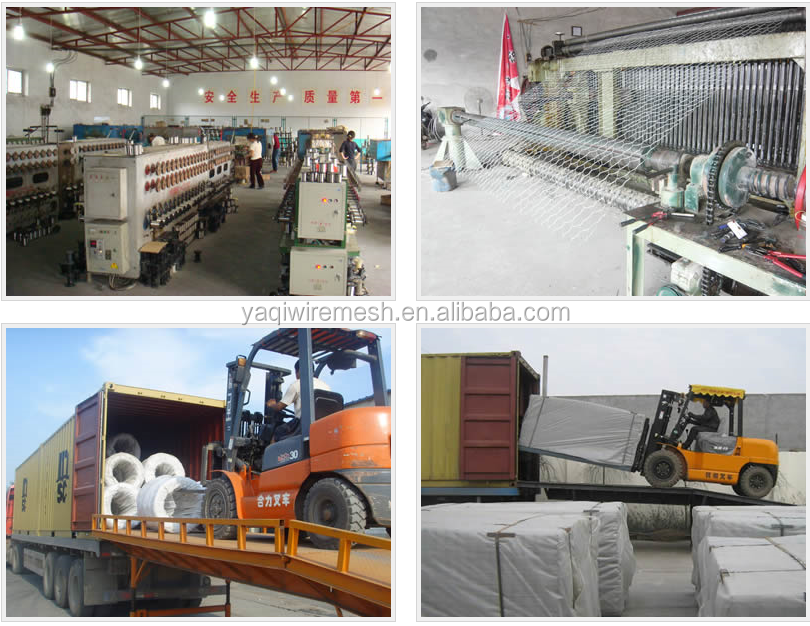

Factory  information:

Anping Yaqi Wire Mesh Co., Ltd. was founded in 2001. It is a professional enterprise in research and development, production and sales of various wire mesh and metal products, is a wire drawing, galvanized, meshes deep processing industry and trade integration of large enterprises.
