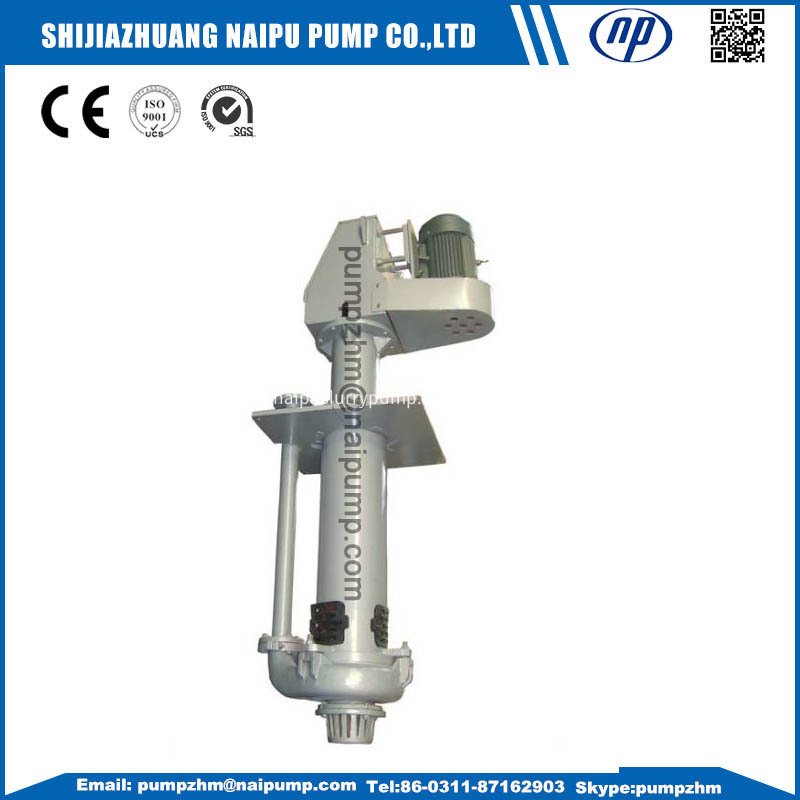

5 year ago1.Sump Vertical Slurry Pump introduction
Vertical sump slurry pump doesn`t need any shaft seal and seal water when it generally immerses the pool or pit to work.The series of submerged pump with lengthening shaft is suitable for working condition with deep liquid level.The series of pump is suitable for conveying abrasive and corrosive slurry with solid particles in mining,metallurgy,power,coal,chemical industry,building materials and other industries,and maximum weight concentration of solid-liquid mixture is: Mortar 45%,ore pulp 60%.
Key words: Sump Vertical Slurry Pump,Rubber Liners Sump Pump,900mm Shaft Length Vertical Pump
2. features of vertical slurry pump
1. Wear-resistant metal, the impeller selection of wear-resistant metal or rubber material.
2. This type sump pump parts, immersed in liquid rubber lining.
3. Different length of the pump drive shaft or inhaled could be selected
4. V-belt drive, direct drive, and flexible coupling.
5. Bearing to lubricate oils.
6.
use of variable-speed, the best condition in the pump operation, long
service life, run- effective,meet many bad transportation conditions.
3. Material of vertical sump pump
Sump Vertical Slurry Pump,Rubber Liners Sump Pump,900mm Shaft Length Vertical Pump
IMPELLERS | CASING | COLUMN | DISCHARGE | SEALS | |
Standard | High Chrome Alloy Rubber | High Chrome Alloy Rubber |
Mild Steel Mild Steel Rubber Lined |
Mild Steel Mild Steel Rubber Lined |
Natural Rubber Rubber |
Options |
Butyl EPDM Hypalon Polyurethane 316 SS W 151 |
Neoprene Butyl EPDM Hypalon Nitrile 316 SS W 151 |
Neoprene Butyl Nitrile 316 SS |
Neoprene Butyl Nitrile 316 SS |
Nordel Neoprene Viton Hypalon Butyl EPDM |
1. Metal vertical sump pump 2. rubber vertical sump pump

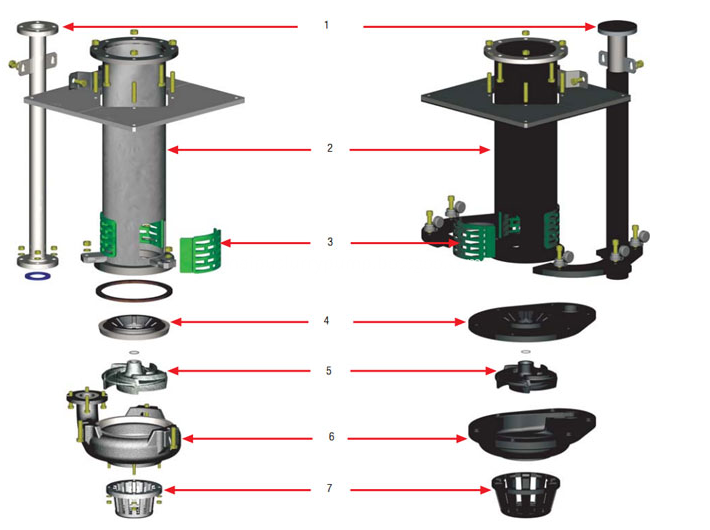

Main parts in the drawing of Vertical sump slurry pump:
1.Discharge pipe 2. column 3. strainer 4.back liner/frame plate liner insert 5. impeller 6. pump casing 7. lower pipe

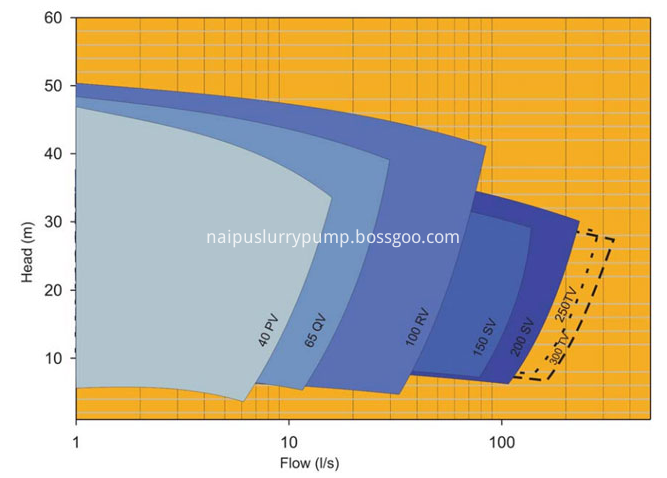

5. Vertical sump slurry pump select chart:

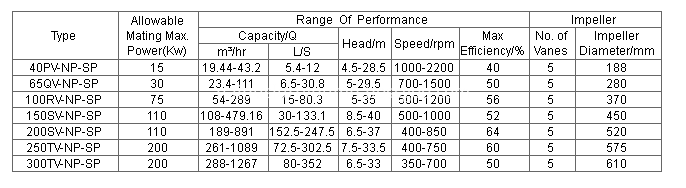

6. Vertical sump slurry pump performance parameters
7. OEM service accepted in Shijiazhuang Naipu Pump co.,ltd.

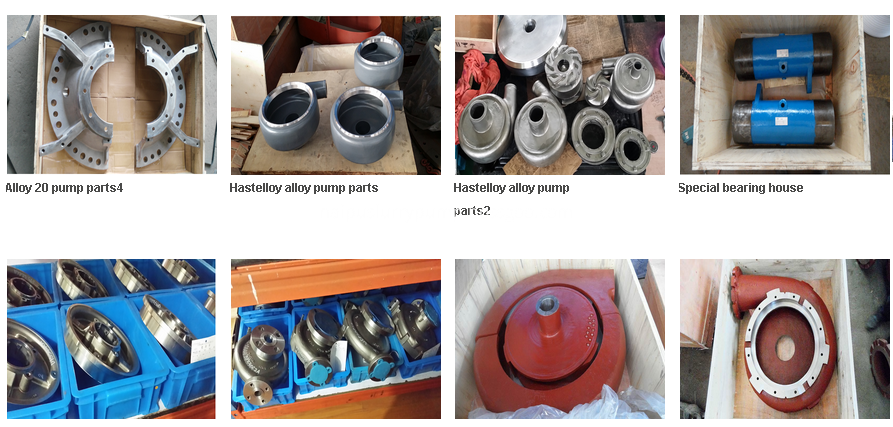

8.Sample vertical sump pump,metal vertical slurry pumps and rubber vertical slurry pumps
