Product details

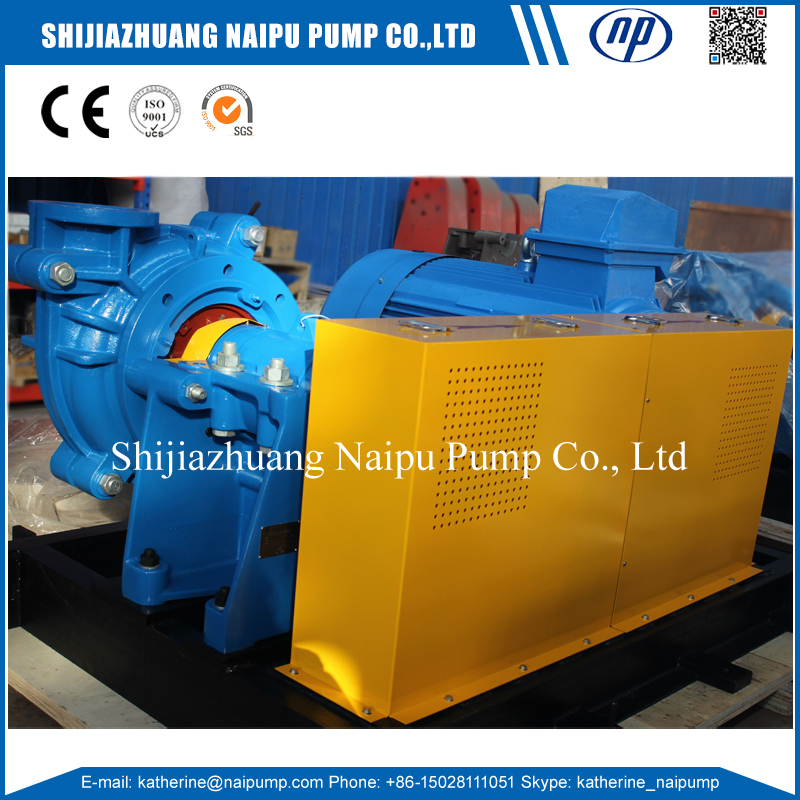

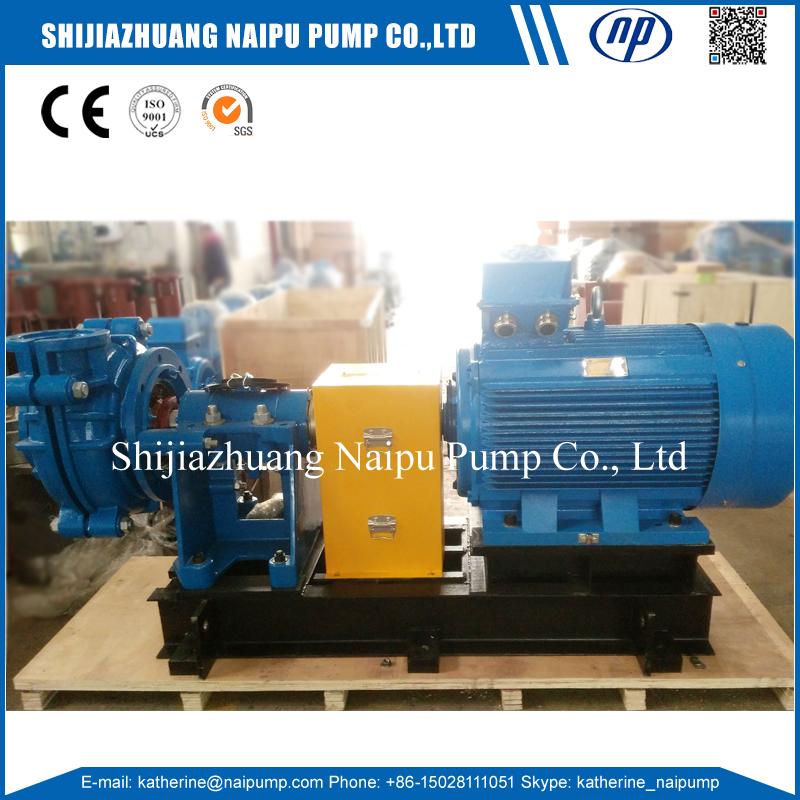

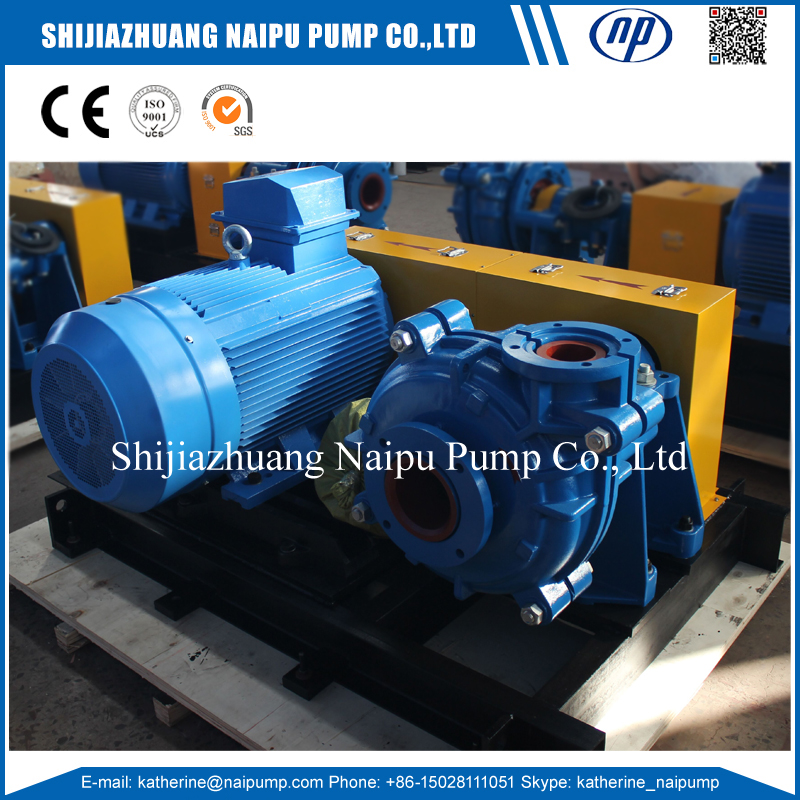

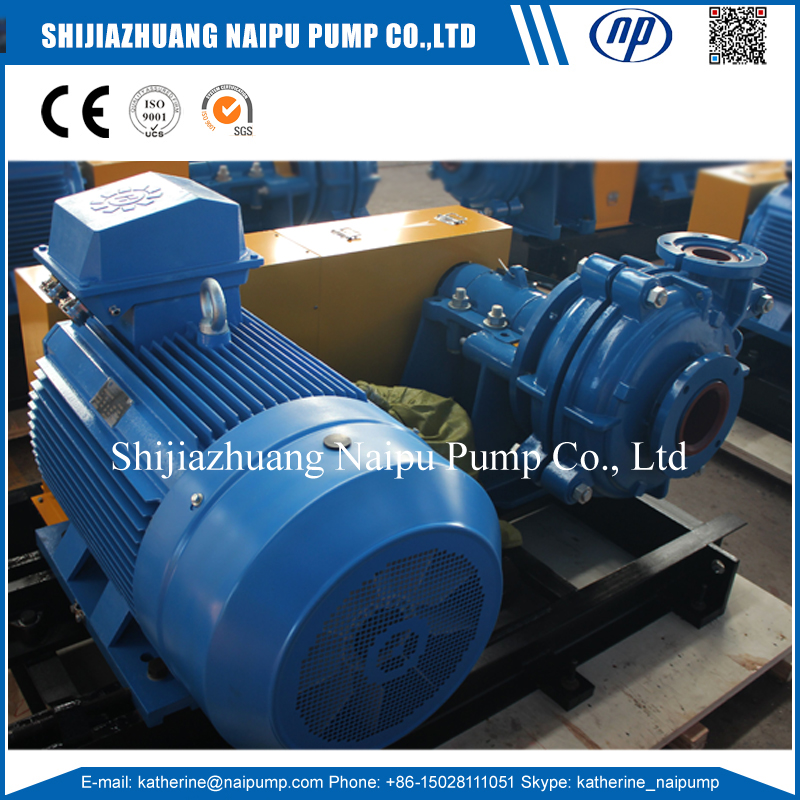

6X4EE-AHE Mining Coal Washing Machine High-chrome Alloy Pump

Tailings Delivery Mining Pump, Cyclone Feed Slurry Pump, Coal Washery Mining Pump, AH metal liner Horizontal Slurry Pump, Metal Liner Bare Shaft Slurry Pump

Naipu also offer other Corrosion Resist Sand Pumps, river sand transfer slurry pump, slurry pump spare parts, flue gas desulfurization pump etc. Ahe Warman Slurry Pump

Centrifugal Slurry Pump Main part number at the drawing

No.
1	Impeller	E4147EP	Hi Chrome A05, A61
2	Volute Liner	E4110EP	Hi Chrome A05, A61
3	Thoat Bush	E4083EP	Hi Chrome A05, A61
4	Frame Plate Liner Lnsert	E4041EP	Hi Chrome A05, A61
5	Frame Plate Liner Insert Gasket	E122	Rubber
6	Intake Joint	E4060	Rubber
7	Discharge Joint Ring	E4132XLP	Rubber
8	Volute Liner Seal	E4124	Rubber
9	O Ring	E109	NBR Rubber
10	Impeller - O Ring	F064	NBR Rubber
11	Shaft Sleeve	E075	3Cr13
12	Bearing assembly	EE005M
13	Frame Plate	E4032	QT500
14	Cover Plate	E4013	QT500
15	Bearing Housing	E004M	G01/HT200
16	Base	E003M	G01/HT200
17	Shaft	E073M	45#

NP-AHE Horizontal Slurry Pump

6x4ahe Warman Pump

Duty Condition:

Cement Factory
The Pumps are Suitable for a cement factory application to pump slurry-clay &limestone,
Gravity :1.75
Viscosity 1.5 cp
Solid content: 65%
water content 35%
Flow rate 200m3/hr
Head 50 m.

6 4ee A61 Slurry Pump

Pump Selection:

Pump Model : 6X4 EE- AHE
Material : Throut bush / Impeller : High chrome Alloy Cr 30% A61
Back liner / Volute : High Chrome Alloy Cr26 A05
Shaft Sleeve : D075 J04 (Ceramica Cated Shaft Sleeve)
Expeller Ring/ Expeller: High Chrome Alloy A05
Seal Type : High Seal

Motor : 4- 160kw
Drive type : DCz Drive
Supply Range : Pump , Motor , Base plate , Coupling , Guard

NP-AH Centrifugal Slurry Pump

4 Inches Ahe Slurry Pump
