Product details

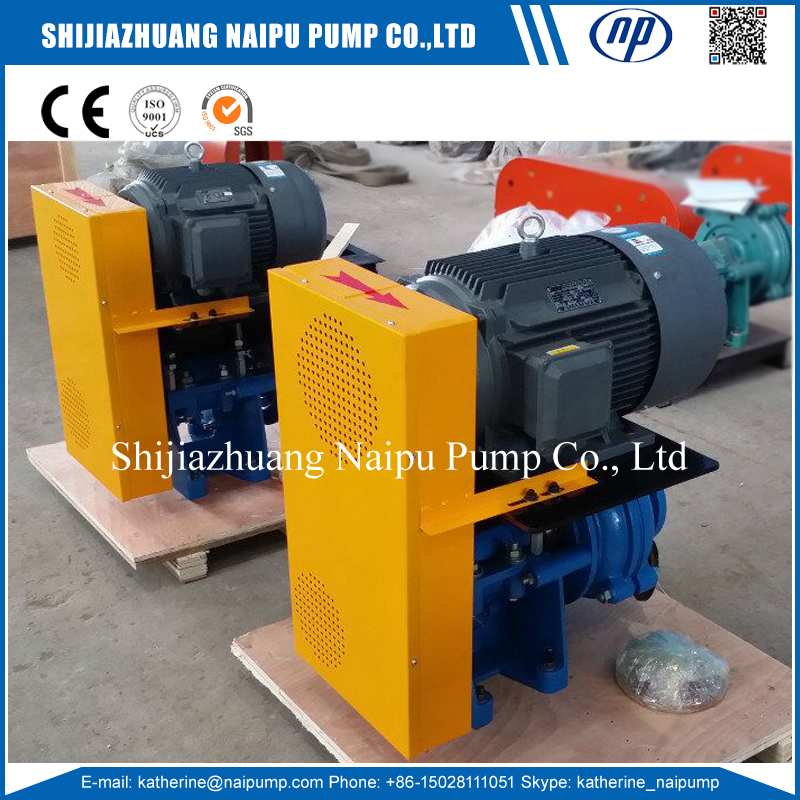

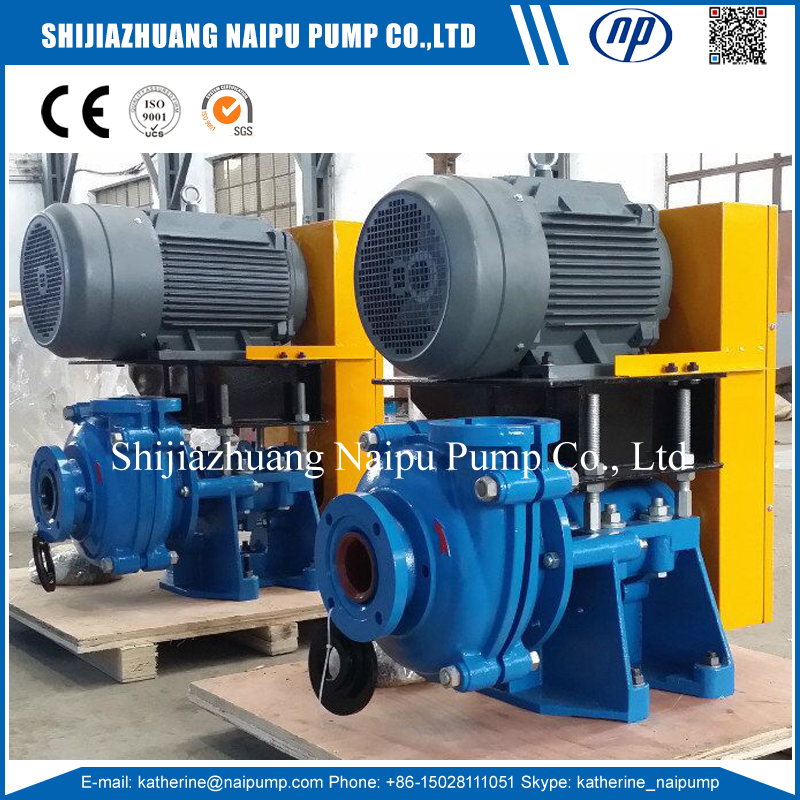

3/2 CCAH Single Stage Ash Slurry Pump

2 inches Slurry Pump used widely for many industry. Such as gold mining, coal mining, iron mining, copper mining etc. Horizontal Small Slurry Pump weight about 200kg, which is the best economic solution for it's related capacity and head. The slurry pump advantages: long term service wet end pars, double casing, and many types of seals. Slurry Pump Selection according the exact working conditions and slurry pump applications.

AH Metal Liner Horizontal Slurry Pump, A05 Mining Slurry Pump, 3x2 AH Slurry Pump, Metal Slurry Pump.

50ZJ Naipu Slurry Pump

Horizontal Slurry Pump Construction

AH Mining Pump

3/2 CC-AH NP-AH Horizontal Slurry Pump

Metal Lined Slurry Pump Part code: C075C21, C003M, C2032G01, C2032D21, C2013G01, C2013D21, C2147A05, C2110A05, C2041A05, C117C21, C004MG01, C073ME05, C005M...

50ZJ Slurry Pump

AH Slurry Pumps Performancce Parameters

Type	Max Power (Kw)	Clear Water Performance					Impeller
		Capacity /m³/hr	Head /m	Speed/rpm	Max Efficiency /%	NPSH /m	Nos of Vane	Diameter /mm
1.5/1 B-AH	15	12.6-28.8	6-68	1200-3800	40	2-4	5	152
2/1.5 B-AH	15	32.4-72	6-58	1200-3200	45	3.5-8	5	184
3/2 CC-AH	55	39.6-86.4	12-64	1300-2700	55	4-6	5	214
4/3 C-AH	30	86.4-198	9-52	1000-2200	71	4-6	5	245
6/4 D-AH	60	162-360	12-56	800-1550	65	5-8	5	365
8/6 E-AH	300	360-828	10-61	500-1140	72	2-9	5	510
10/8 F-AH	560	612-1368	11-61	400-850	71	4-10	5	686
12/10 ST-AH	560	936-1980	7-68	300-800	82	6	5	762
14/12 ST-AH	560	1260-2772	13-63	300-600	77	3-10	5	965
16/14 TU-AH	1200	1368-3060	11-63	250-550	79	4-10	5	1067
20/18 TU-AH	1200	2520-5400	13-57	200-400	85	5-10	5	1370

Contact Information: Katherine Hou (katherine at naipump dot com)

If you need the slurry pump brochure and slurry pump basic handbook please contact me freely. I will send you the details by mail. You can also call me by phone: +8615028111051

Warman Pump Part Contact
