8'' Sand dredging Gravel Mud Slurry Pumps
Coal washing sand gravel pumps/delivering slurries in mining gravel pumps/dredging in dredger pumps/river sand dredger gravel pumps/gravel pumps/mining slurry pumps /Sand gravel pumps on dredger boat

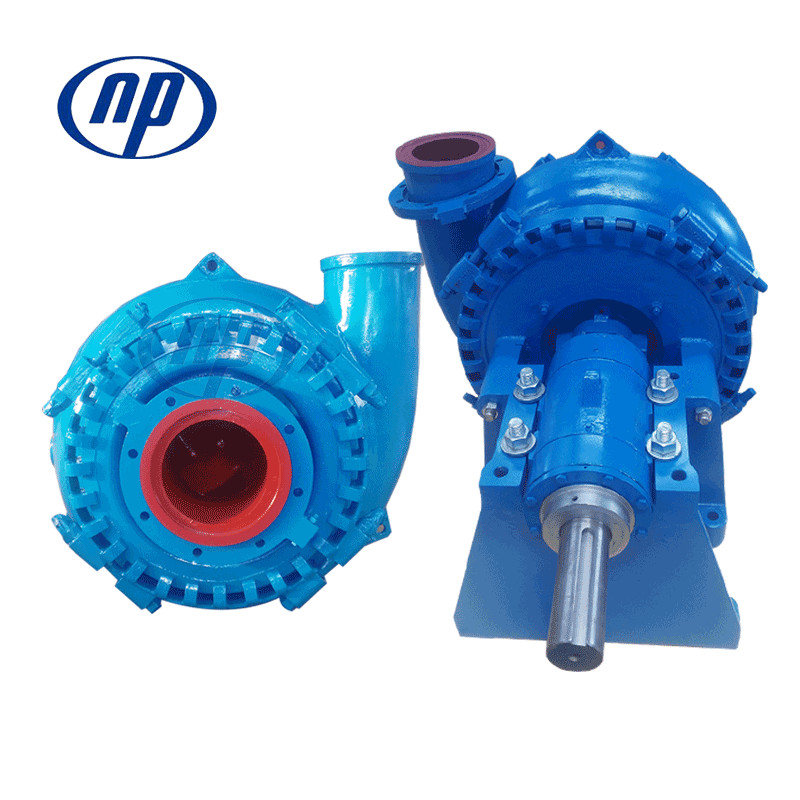

Naipu® NP-G series of Dredge and Gravel pumps is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life.
Typical Applications---
Slag Granulation
Suction Hopper Dredging
Dredging
Barge Loading
Sand Reclamation
Sugar Beet
NP-G Construction Drawing--
Main Part Number At The Drawing
|
003:Base
005:Bearing Assembly 132:Intake Joint Discharge Joint 130:Discharge Flange Intake Flange 013:Cover Plate |
131:Bowl
137:Impeller 041:Back Liner 135:Door Clamp Ring 134: Adapter Plate Clamp Ring 124:Volute Cover Seal |
Materials of Construction
|
|
VOLUTE |
IMPELLERS |
BASE |
EXPELLER |
EXPELLER RING |
SHAFT SLEEVE |
SEALS |
|
Standard |
High Chrome Alloy |
High Chrome Alloy |
Cast Iron |
Chrome Alloy |
Chrome Alloy |
SG Iron |
Natural Rubber |
|
Options |
SG Iron |
SG Iron |
Mild Steel |
SG Iron |
SG Iron |
EN56C |
Nordel |
NP-G GRAVEL PUMP SELECTION CHART
NP-G SLURRY PUMP PERFORMANCE PARAMETERS
Pump Model
Allowable
Max. Power
(kW)
Clear Water Performance
Max Solid Passing (mm)
Capacity Q
Head
Speed
Max.Eff.
NPSH
Impeller
m3/h
l/s
H(m)
n(r/min)
η%
(m)
Dia.
6/4D-G
60
36-250
10-70
5-52
600-1400
58
2.5-3.5
378
82
8/6E-G
120
126-576
35-160
6-45
800-1400
60
3-4.5
378
127
10/8S-GH
560
216-936
60-260
18-80
500-1000
65
3-7.5
533
180
10/8S-G
560
180-1440
50-400
13-50
500-950
72
2.5-5
711
178
12/10G-G
600
360-1440
100-400
10-60
400-850
65
1.5-4.5
667
220
12/10G-GH
1200
288-2808
80-780
16-80
350-700
73
2.0-10.0
950
210
14/12G-G
1200
576-3024
160-840
8-70
300-700
68
2.0-8.0
864
241
16/14TU-GH
1200
324-3600
90-1000
26-70
300-500
72
3.0-6.0
1270
230
18/16T-G
1200
720-4320
200-1200
12-48
250-500
72
3.0-6.0
1067
254
2. Shaft Components adopt cylinder structure, which is convenient to adjust the gap between impeller and front wearing plate. The shaft uses grease lubrication.
3.Shaft Seal: expeller drive seal, packing seal, and Mechanical seal.
4.Broad Flow Passage & Good Anti-Cavitation Property & Highly Efficient Wear Resistance.
5.Driving Method: V Belt Drive, Elastic Shaft Coupling Transmission, Gear Box Drive, Fluid Coupling Transmission, Variable Frequency Drive Device and Thyristor Speed Control.
6.The wet parts are made of Ni-hard and high-chrome wear-resistant alloys with good anti-corrosive property.
7.Variable speeds and modals to ensure smooth operation. Additionally, Long service life and high operation efficiency offer reliable performance in a tough operating environment.
Product Overview
Applications
Mining & Mineral Processing
The slow running speeds of the NAIPU Heavy Duty Slurry Pump,together with the comprehensive choice of abrasion resistant alloys and elastomers,provide unrivalled performance and service life for all abrasive mining and mineral processing applications.
Chemical Process
The interchangeability of alloy and elastomer components in the same pump casing, together with a wide range of mechanical seals.
Sand & Gravel
Designed for easy and simple strip down and re-assembly,the NAIPU PUMP minimises downtime,making it the ideal choice where installed stand by pumps are not available.
Sugar Processing
The premium reliability and service life of the NAIPU pump is specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.
Flue Gas Desulphurization
The new generation of speciality formulated abrasion and corrosion resistant alloys,together with the very latest elastomer technology.
Oil & Gas Exploration
Over a number of years we have developed the proven design of the NAIPU pump ranges to suit the specific demands of offshore applications,we can now offer the most reliable top side solution to erosion wear.
Naipu Main Slurry Pump Models
| NP-AH | NP-HH | NP-SP | NP-G | NP-AF | NP-L | NP-M |
| 1.5/1B-AH(R) | 1.5/1C-HH | 40PV-SP(R) | 6/4D-G | 3QV-AF | 20A-L | 10/8R-M |
| 2/1.5B-AH(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 4RV-AF | 50B-L(R) | 10/8E-M |
| 3/2C-AH(R) | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF | 75C-L |
|
| 4/3C-AH(R) | 4/3X-HH | 150SV-SP(R) | 12/10G-G | 8SV-AF | 100D-L |
|
| 6/4D-AH(R) | 6/4X-HH | 200SV-SP(R) | 14/12G-G |
|
150E-L |
|
| 6/4E-AH(R) | 6/4F-HH | 250TV-SP | 14/12T-G |
|
300S-L |
|
| 8/6E-AH(R) | 6S-H |
|
16/14G-G |
|
350FF-L |
|
| 8/6R-AH(R) | 6S-HP |
|
16/14TU-GH |
|
450ST-L |
|
| 10/8F-AH(R) | 8/6S-H |
|
18/16G-G |
|
|
|
| 10/8ST-AH(R) | 8/6S-HP |
|
18/16TU-GH |
|
|
|
| 12/10ST-AH(R) | 8/6X-HP |
|
|
|
|
|
| 12/10FF-AH(R) |
|
|
|
|
|
|
| 14/12G-AH(R) |
|
|
|
|
|
|
| 14/12ST-AH(R) |
|
|
|
|
|
|
| 16/14TU-AH(R) |
|
|
|
|
|
|
| 20/18TU-AH(R) |
|
|
|
|
|
|
Naipu Main Pump Parts
Main Slurry Pump Parts : Impeller , Volute Liner , Casing , Throat Bush, Frame Plate Liner Insert , Cover Plate , Frame Plate, Pump Liner Expeller , Expeller Ring ,Stuffing Box , Expeller , Pump Shaft , shaft sleeve, Shaft Spacer, Bearing Assembly , Base, Stuffing Box, Gland Assembly, Bearing Housing , Lantern Ring , pump discharge pipe , flange and so on.

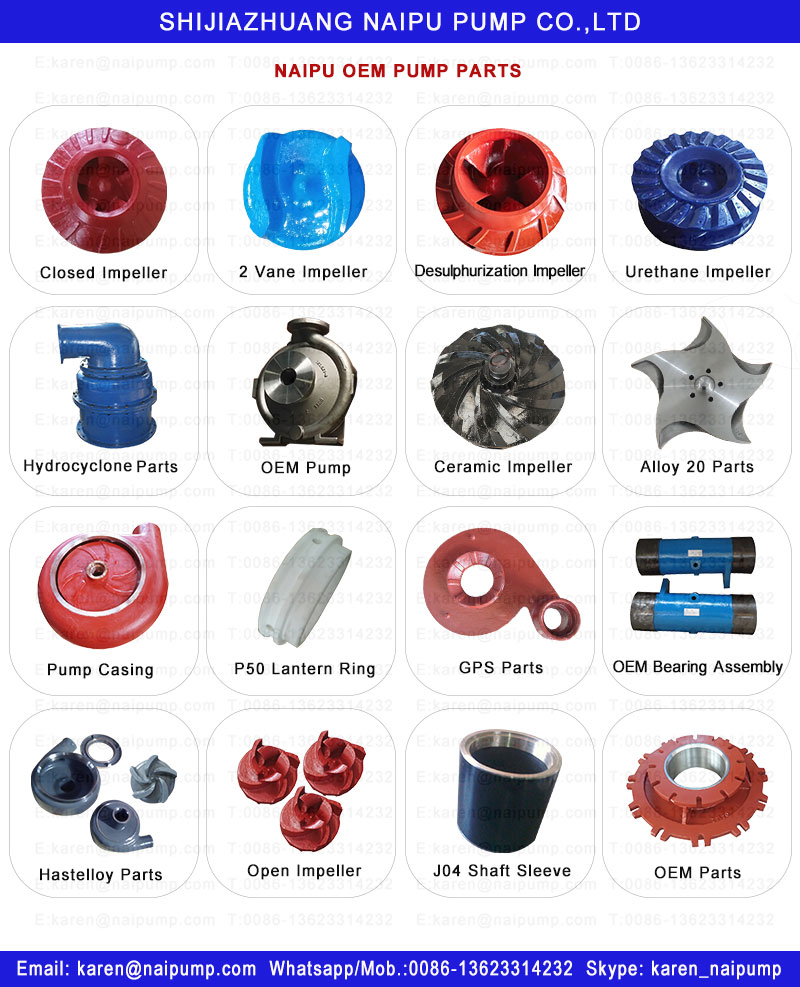

Naipu OEM Pump Parts
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
Welcome to visit our Factory !
NAIPU PUMP is a whole processing company, Start from Modeling Workshop,Casting Workshop,Heat treatment Workshop,Machining Workshop ,Assembly Workshop and Pump Testing Workshop are all by us. So we are modernization and integrated company to satisfy the requirement of the changing needs of market.
