Product details

10 Pixels1000mm Addressable LED Linear Lights CV4E

Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light

 Features


■ Elegant ultra-slim profile high brightness LED pixel linear light that integrated easily into architectural features for outdoor applications or formed into scalable large LED video display with high light transparency for building facades and commercial building.

■ Choice of Cree, Orsam, Lumileds in range of whites, mono colour, RGB and RGB+W viewing angle at 40°,25*35° and 25°.

■ High corrosion resist anodized aluminum profile and perforated face cover over clear PMMA or PC lens cap.

■ Complete weather-sealed fixture, IP65.
■ Easy and fast installation with fixed or adjustable stainless steel brackets.
■ Seamless line of light with no dark spaces when fixtures are connected in cascade.
■  DC24V input. DMX control with auto-addressing features.
■  High brightness contrast level for smooth and consistent color change effect.

Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light

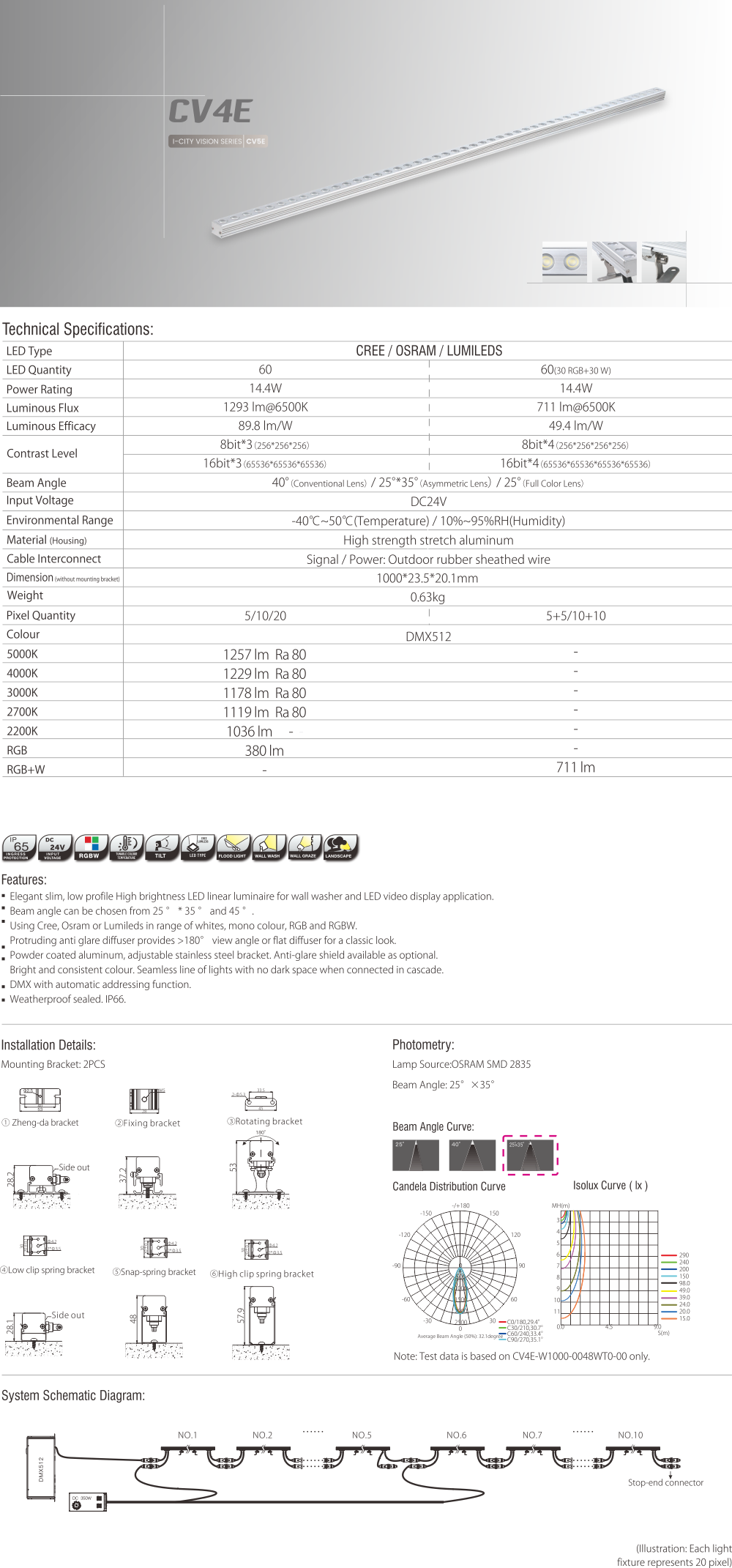

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 14.4W, Input Voltage:DC24V
■ CCT:RGB, DMX 512
■ LEDs:60 LEDs
■ Beam Angle:40°/25°*35°/25°
■ Dimension: 1000*23.5*20.1mm (without bracket)
■ Protection: IP 65
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum
■ Cable length: 500mm with waterproof connectors
■ Cable (2 in/2 out)
■ Rotary bracket with 180D/Low rotary bracket with 100D/Fixed bracket/ Low clip spring bracket/ Clip spring bracket/High clip spring bracket
■ Pixels:10

CV4E LED Linear Light (1)
