5000K DC24V Addressable LED Linear Light CV3E

Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light

 Features

■ Elegant ultra-slim profile high brightness LED pixel linear light that integrated easily into architectural features for outdoor applications or formed into scalable large LED video display with high light transparency for building facades and commercial building.

■ Choice of Cree, Orsam, Lumileds in range of whites, mono colour, RGB and RGBW viewing angle at ≥110°.

■ High corrosion resist anodized aluminum profile and PMMA cover.

■ Complete weather-sealed fixture, IP65.

■ Easy and fast installation with fixed or adjustable stainless steel brackets.

■ Seamless line of light with no dark spaces when fixtures are connected in cascade.

■ DC24V input. DMX control with auto-addressing features.

■ High brightness contrast level for smooth and consistent color change effect.

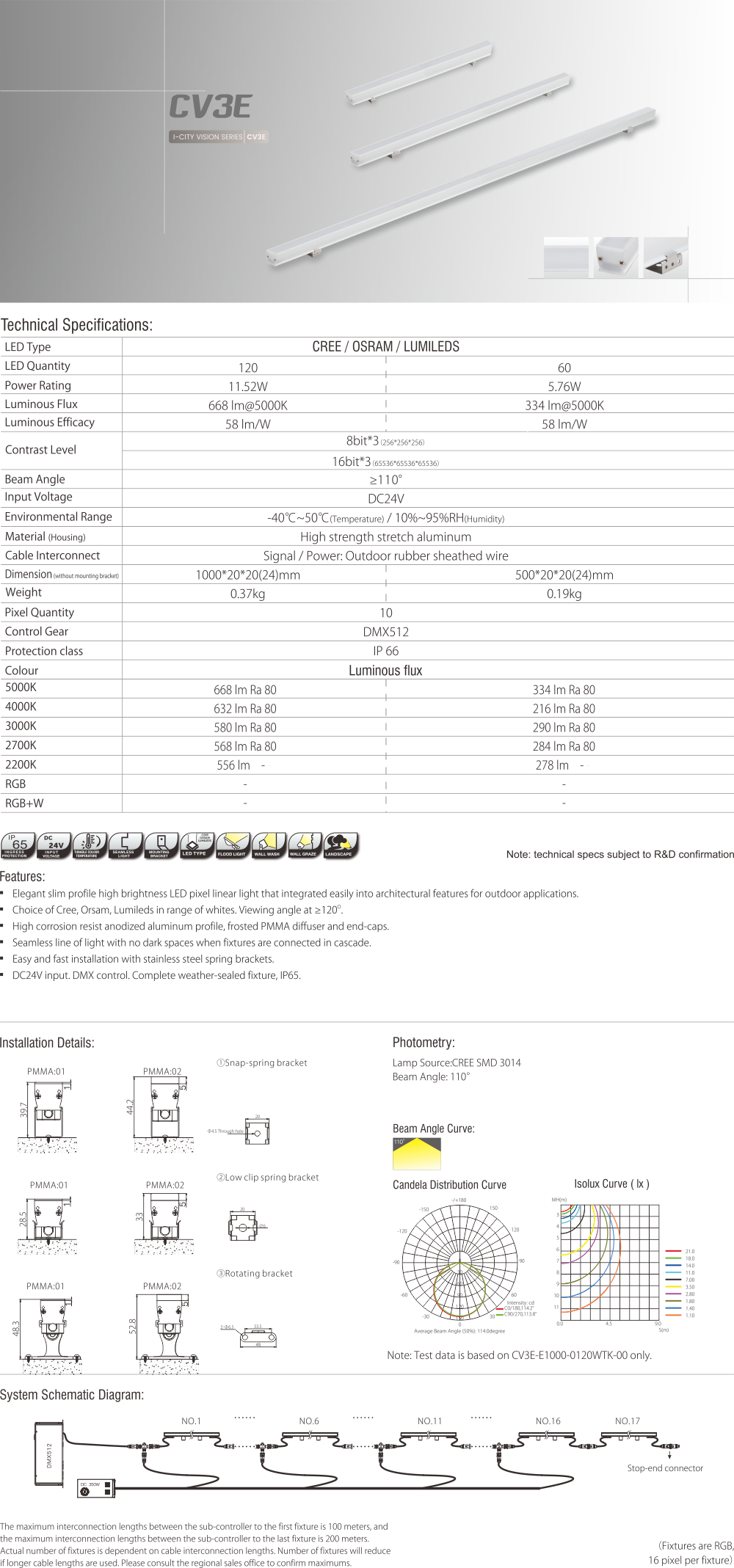

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 11.52W, Input Voltage:DC24V
■ CCT:5000K, DMX 512
■ LEDs:120 LEDs
■ Beam Angle:≥110°
■ Dimension: 1000*20*20(24)mm
■ Protection: IP 65
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Rotary bracket / Low clip spring bracket/ clip spring bracket
■ Pixels:10
