SHANTUI brand articulated motor grader machinery SG18-3
SG18-3 Motor Graders
"SG18-3 motor graders adopts the external ring gear type working device to achieve higher transmitted torque, larger blade cutting angle, and better material control capability and features the maximum traction force among the domestic like machines. This machine is applicable for large-area leveling, ditching, slope scraping, bulldozing, ripping, land clearing, and snow removing and is an ideally essential machine for large building constructions, water conservancy projects, and farm improvements.

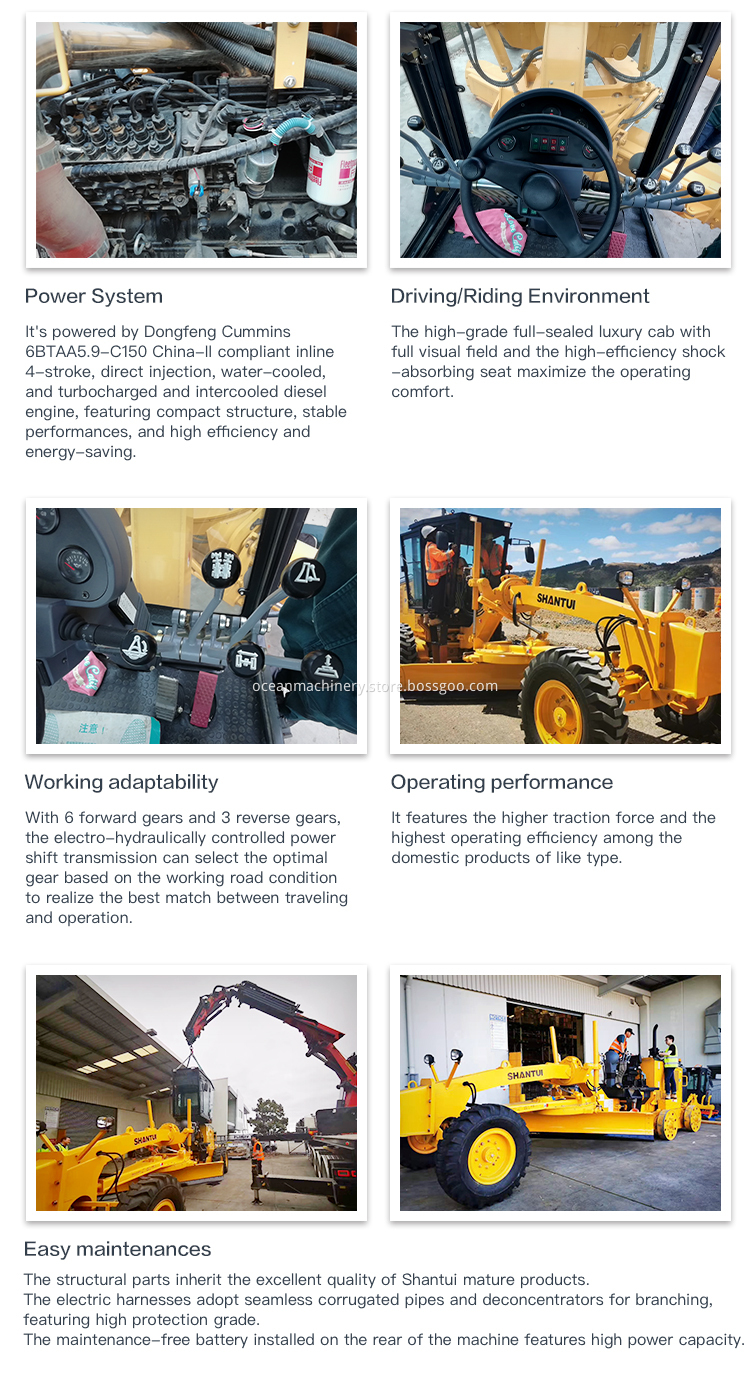

Technical Features
● Featuring reliable performances and high efficiency and energy-saving, the Cummins engine and Shangchai engine are at your choice.
● The 6-speed electronically controlled shift hydraulic transmission with ZF technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
● The box-type structure welded from integral plates features high strength.
● The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
● Featuring simple operations and high impact resistance against external forces, it’s applicable for the working conditions with high operating volume and severe operating environment.
● The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
● The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
● The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
all the motor grader parts also be free contact with me directly.
Road machinery motor graders parameters
Project/Model
SG18-3
Machine weight
16200kg
Largest traction
91kN
Minimum ground height
430mm
Maximum climb angle
20°
Minimum turning radius
7800mm
Front wheel steering angle
±45°
Articulated steering angle
±25°
Front axle tilt angle
±17°
Front axle swing angle
±15°
Rear axle swing angle
±15°
Brake pressure
10MPa
Working pressure
16MPa
Front axle load
4800kg
Rear axle load
11400kg
Blade length
3660mm/3965mm
The blade is high
635mm
Blade angle of rotation
360°
Blade swing angle
±90°
Blade cutting angle
44-91°
Maximum depth of entry
500mm
Maximum lifting height
440mm
Unit cutting force
17.76kN/m
Maximum side extension distance
1900/1950mm
Engine model
Dongfeng Cummins QSB5.9-C180 / Shangchai SC8DK190G3/Weichai WP6G190E330
Rated power
132 kW / 2200 rpm / 140 kW / 2200 rpm 132 kW / 2200 rpm / 140 kW / 2200 rpm
Maximum torque
770N.m / 1500 rpm / 720N.m/1400rpm 760N.M/1500rpm
Displacement
Dongfeng Cummins 5.9L/ Shangchai 8.3L/ Weichai 6.75L
Minimum fuel consumption
202g/kW.h
Walking speed
Forward six gear, back three gears
Stalls
6 files
Go ahead
5.4/9.3/12.2/20.7/25.6/39.7km/h
Backwards
5.4/12.2/25.6km/h
It will be work smoothly toghter with our loaders ,bulldozers ,excavators .
We will treat our customer like family! Welcome your inquiry!
