Anti-static Esd Engineering Plastic PVC Board PVC Sheet

2 month ago
4 0
Product details
pvc sheet, polyvinyl chloride products.
Polyvinyl chloride (PVC) color is slightly yellow translucent, glossy. Transparency better than polyethylene, polypropylene, worse than polystyrene, with different amounts of additives, divided into soft and hard PVC, soft products are soft and tough, sticky feel, hard products, the hardness is higher than the low-density polyethylene, but lower than the polypropylene, in the bending place will be whitening phenomenon. Common products: plates, pipes, shoe soles, toys, doors and windows, wire outer skin, stationery, etc.. It is a polymer material that uses a chlorine atom to replace a hydrogen atom in polyethylene.

Features: high surface hardness excellent scratch resistance; surface resistance value of 10's 6 to 10's 8 times ohm, excellent anti-static function, outstanding impact resistance and chemical solvent resistance; beautiful appearance, very flat and smooth; light transmittance of 73% or more.
Flame retardant grade is ul-94:v-0.
Color: transparent, smoke, milky white, grey, etc.
Applications: equipment covers, dust-free boxes, test fixtures, etc.

Hard PVC sheet
Rigid PVC extrusion sheet is produced by CM80 conical twin-screw extrusion line with world advanced level introduced from Cincinnati Miraklang Company in Austria. Product quality is first-class, the color is generally gray and white, but also according to customer needs to produce PVC color hardboard, its color is bright, beautiful and generous.
Product thickness upper limit: 25mm-30mm below, the thickest can reach 65mm.
Product width: 900mm, 1300mm, 1500mm, the width of the product depends on the width of the mold.

Performance characteristics: the product quality of the implementation of GB/T13520-1992, with excellent chemical stability, corrosion resistance, hardness, high strength, UV protection (aging resistance), fire retardant (with self-extinguishing), reliable insulation properties, smooth and flat surface, non-absorbent, non-deformation, easy to process and so on.
Usage: The product is superior thermoforming material, which can replace part of stainless steel and other corrosion-resistant synthetic materials.

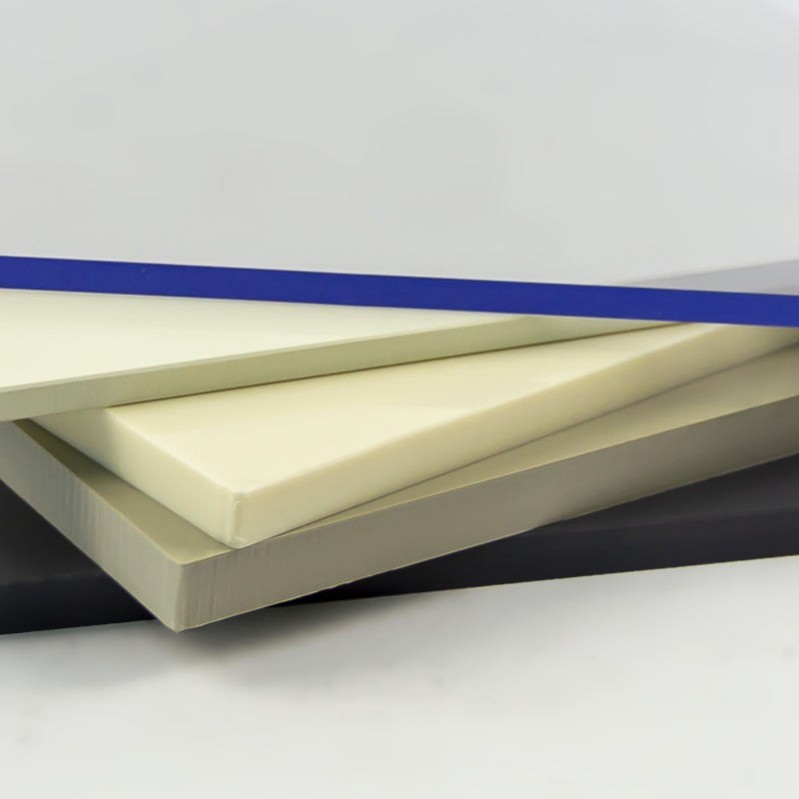

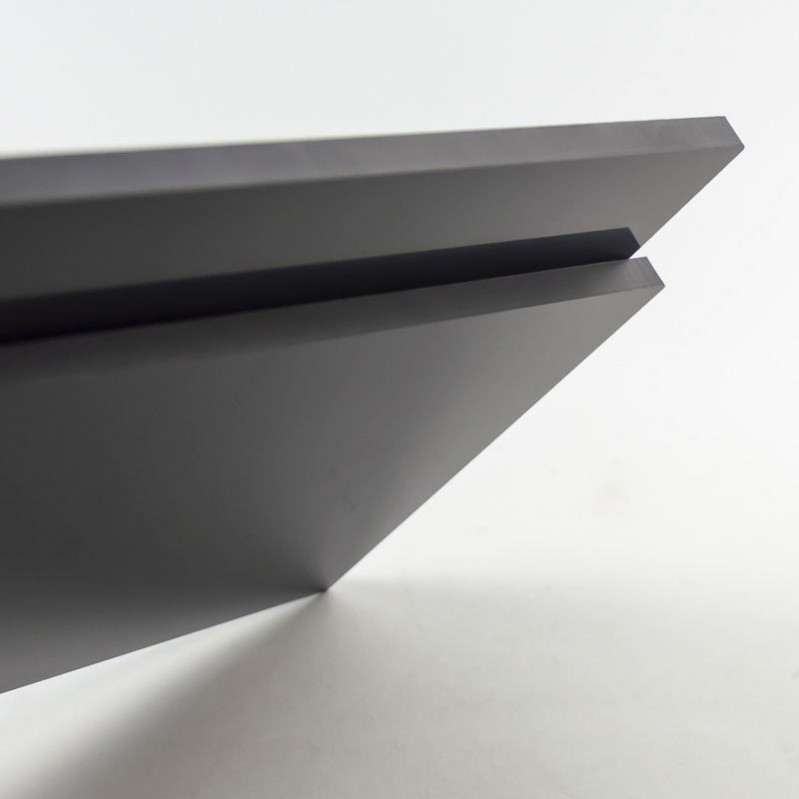

Rigid PVC sheet2Rigid PVC sheet5
PVC sheet properties:
General Properties PVC resin is a white or light yellow powder with a relative density of 1.35-1.45.The softness or hardness of the product can be adjusted by adding plasticizers.

Mechanical properties PVC has high hardness and mechanical properties. It increases with the increase of molecular weight, but decreases with the increase of temperature. Rigid PVC has good mechanical properties, its modulus of elasticity can reach 1500-3000MPa. while the elasticity of soft PVC is 1.5-15MPa. but the elongation at break is as high as 200%-450%. the friction property of PVC is general, the static friction factor is 0.4-0.5, and the dynamic friction factor is 0.23. the friction factor is 0.4-0.5, and the friction factor is 0.23. the friction factor is 0.5-0.5.

Thermal properties The thermal stability of PVC is very poor, 140 ℃ that began to decompose, the melting temperature of 160 ℃. PVC's coefficient of linear expansion is small, flame retardant, oxidation index of up to 45 or more. Therefore, it is necessary to add heat stabilizers during processing to ensure the performance of the product.

Electrical properties PVC is a polymer with good electrical properties, but due to its own polarity, the electrical insulation is not as good as PP and PE. dielectric constant, dielectric loss angle tangent and volume resistivity is large, corona resistance is not good, generally suitable for low-voltage and low-frequency insulating materials.

Environmental performance PVC can resist most inorganic acids, alkalis, salts, most organic solvents. It is suitable for pharmaceutical and chemical anti-corrosion materials.

PVC Transparent Sheet
It is a kind of high-strength and high-transparent plastic sheet produced by imported raw and auxiliary materials. The colors of the products are white, jewel orchid, teal, coffee and many other varieties.
Maximum thickness: below 20mm
Maximum width: 1300mm
Specification: 1300×2000mm
Performance characteristics: the product is high strength, high transparency, good weather resistance, non-toxic, hygienic, physical properties better than organic glass.
Uses: This product is widely used in equipment guard plate, interior decoration, drinking water tank, liquid level display and so on.

PVC soft sheet
PVC soft sheet (coil) has a glossy surface and is soft. There are brown, green, white, gray and other colors to choose from, the product is made of top quality materials, fine production, and widely used.
Maximum width: 1300mm Specification: 1300mm wide, weight 50kg/bundle.
Performance characteristics: soft, cold, abrasion, acid, alkali, corrosion resistance, excellent tear resistance, excellent weldability, physical properties better than rubber and other coil materials.
Uses: Used in chemical industry, electroplating, electrolytic tank lining, insulating matting, trains, automobile interiors and auxiliary materials.
PVC soft sheet is widely used in distribution rooms, instrument rooms, laboratories, storage warehouses, gymnasiums, fitness places and flooring materials for vehicles and ships. It is also suitable for acid and alkali resistance, anti-corrosion equipment lining, sealing liner, petroleum, chemical, environmental protection plating, aluminum oxidation pool and electrophoresis tank workshop and waterproofing engineering and other fields. The use temperature is -20~+40℃.

PVC welding rod
Specifically for PVC transparent board construction welding use, specifications for 1.5-3mm, 1000mm long, varieties of single, double, etc..

PVC Plastic Sheet
The products are superior thermoforming plastics, which can replace part of stainless steel and other corrosion-resistant synthetic materials. It is widely used in chemical industry, petroleum, electroplating, water purification and treatment equipment, environmental protection equipment, mining, medicine, electronics, communication and decoration industries.

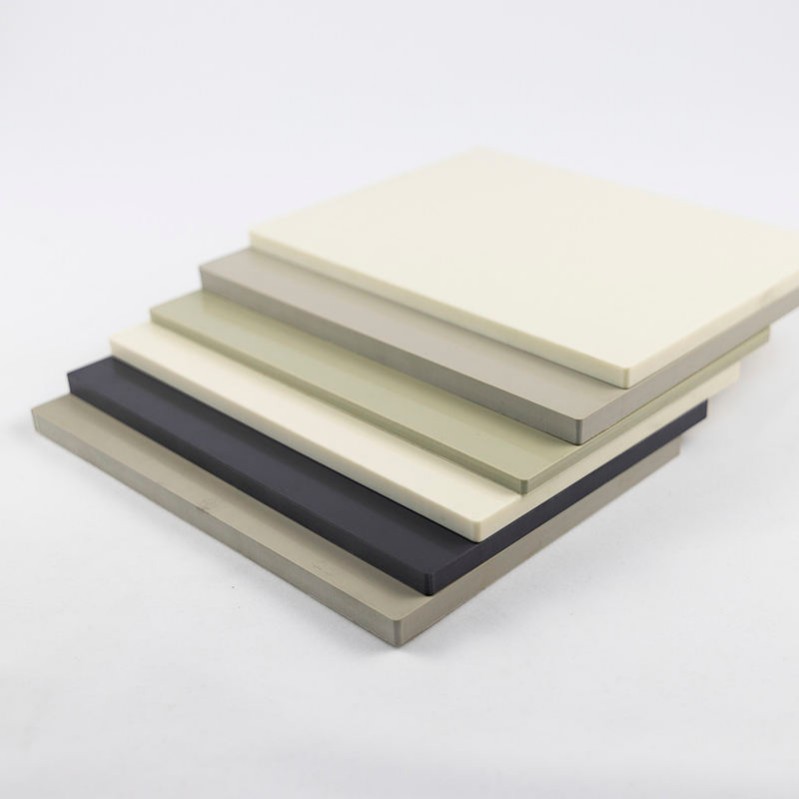

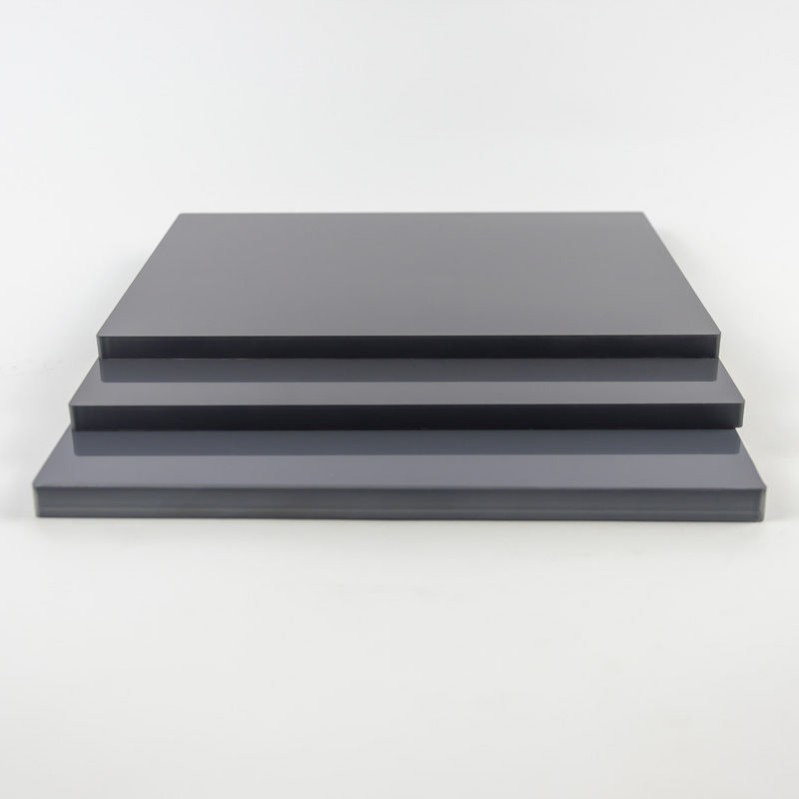

Rigid PVC sheet4Rigid PVC sheet1

PVC plastic sheet: chemical resistant and environmentally friendly choice

PVC plastic sheet, made of polyvinyl chloride, has excellent chemical resistance, weather resistance and environmental friendliness.

Its smooth surface is easy to clean and is suitable for use in many fields such as construction, furniture, electronics and food.

PVC sheets can be customized on demand, offering a wide range of color and thickness options.

It is easy to process and supports cutting, drilling, welding and other operations, making it convenient to use.

However, it should be noted that the chlorine element in PVC materials may produce harmful substances when exposed to sunlight for a long time, so prolonged exposure to sunlight should be avoided.
