Product details

Anti-static PVC sheet is also known as anti-static polyvinyl chloride sheet, the base material is PVC (polyvinyl chloride). Through the coating technology, on the basis of retaining the performance of PVC such as corrosion-resistant, flame retardant, etc., it has excellent anti-static function at the same time. The surface hardness is high and the scratch resistance is excellent; the surface resistance value is 10-6 to 10-8 times ohm, which has excellent anti-static function; the impact resistance and chemical solvent resistance performance is outstanding; the appearance is beautiful and very smooth; the light transmittance rate reaches more than 73%.

PVC is a kind of vinyl polymerization material, its material is a kind of non-crystalline material. pvc material in actual use often add stabilizers, lubricants, auxiliary processing agents, color, impact resistance and other additives. It has non-flammability, high strength, resistance to weather changes and excellent geometric stability. PVC is highly resistant to oxidizing agents, reducing agents and strong acids. However, it can be corroded by concentrated oxidizing acids such as concentrated sulfuric acid and concentrated nitric acid and is not suitable for contact with aromatic and chlorinated hydrocarbons.

Colors: transparent, ivory white, black, orange transparent, yellow transparent, black-gray transparent, light brown transparent, etc.

Craftsmanship

Anti-static Coating Process (Coating): Brush the anti-static liquid onto the surface of the plate, and then put it under the ultraviolet ray to dry; or clamp the plate in the air, let the anti-static liquid drizzle onto the surface of the plate under the action of gravity; the process is commonly used in China.

Anti-static non-Coating process (transfer type): anti-static film and plate molding, in order to avoid impurities in the air floating dust mixed into it, the whole process is completed in a sealed environment; due to the use of special technology, in the process of extrusion molding of the plate, anti-static film will be attached to the surface of the plate, after high temperature cooling and high pressure film, and finally tear off the film, so that the anti-static liquid evenly attached to the surface of the plate; Due to the complexity of the process, there is no domestic manufacturer to use this process for the time being.

Application

Clean room equipment: all kinds of peep window material, door material, clean room partition wall, dust-free hole, partition, air duct, equipment enclosure, etc.;

Mining and chemical equipment: reaction and absorption equipment, rare earth extraction tanks, electrolysis tanks, storage tanks, waste liquid treatment equipment, machine enclosures, etc;

Pharmaceutical equipment: aseptic filling equipment windows, pharmaceutical equipment enclosures, medicine tanks.

PVC anti-static flooring: ideal for electronic factories

PVC anti-static flooring has a wide range of applications in the electronics, microelectronics and telecommunications industries.

Here are some advantages and features about this type of flooring:

Anti-static performance

PVC anti-static flooring has good anti-static effect by adding conductive carbon black, which is especially suitable for places where anti-static is required.

Stability

PVC material is elastic and will not crack or deform due to changes in temperature and humidity, ensuring the stability of the floor.

Decorative

Coil flooring can be customized with various colors and specifications to provide diversified decorative options to meet the decorative needs of different plants.

Easy construction

The construction process of coil flooring is relatively simple, saving time and labor and improving construction efficiency.

Abrasion resistance

High PVC content, good abrasion resistance, long service life, suitable for places with high traffic and high usage frequency.

Relevant certification standards

FM certification standard 4910

Flame retardant fire rating UL-94-V0

What are the four major types of pvc sheet

1.Soft pvc board: soft pvc board surface glossy, soft. There are brown, green, white, gray and other colors to choose from, the product material into the production of fine, widely used. Maximum width: 1300mm Specifications: 1300mm wide, weight 50kg/bundle Performance characteristics: soft cold, abrasion, acid, alkali, corrosion resistance, excellent tear resistance, excellent weldability, physical properties better than rubber and other coil materials. Soft PVC sheet use: used in chemical industry, electroplating, electrolytic tank lining, insulation matting, trains, automobile interiors and auxiliary materials.

2.Hard PVC sheet: hard PVC sheet products are superior thermoforming plastic, can replace some stainless steel and other corrosion-resistant synthetic materials. Rigid PVC board is widely used in chemical industry, petroleum, electroplating, water purification and treatment equipment, environmental protection equipment, mining, electronics, communications and decoration industries.

3.Anti-static PVC board: anti-static PVC board (anti-static polyvinyl chloride board), flame retardant grade ul-94:v-0. anti-static PVC board color: transparent, smoke, milky white, gray and so on. Application of anti-static PVC sheet: equipment cover, clean box, test fixtures, etc..

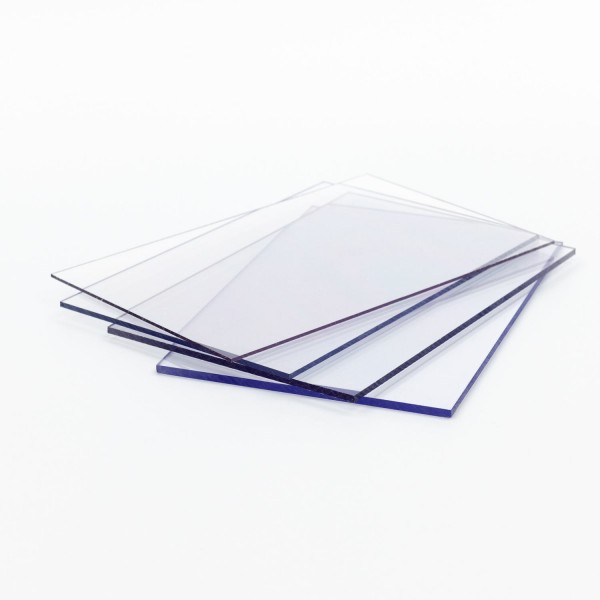

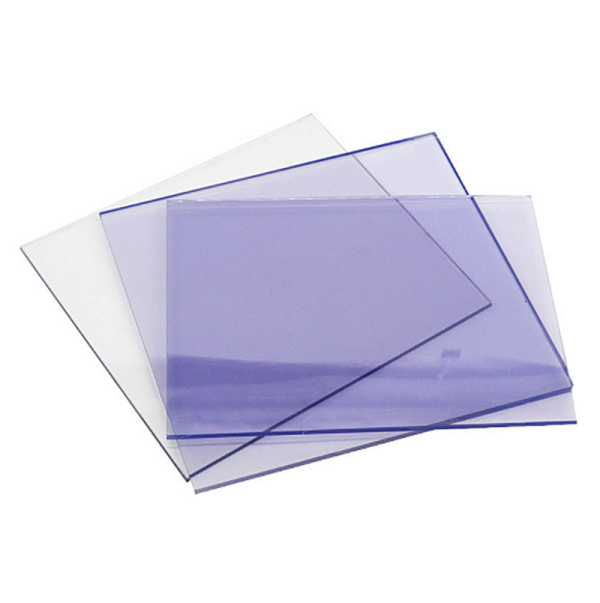

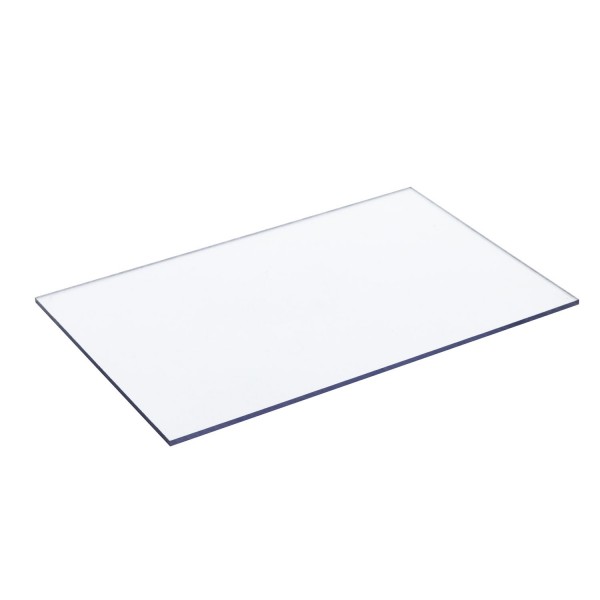

4.Transparent PVC sheet: Transparent PVC sheet is a high-strength, high-transparent plastic sheet produced by selecting high-level imported raw and auxiliary materials. Transparent PVC board product colors are white, jewel orchid, teal, coffee and other varieties. Transparent PVC sheet product thickness ceiling: 20mm below the maximum width of the product: 1300mm specifications: 1300 × 2000mm. transparent PVC sheet performance characteristics: the product is high strength, high transparency, good maroon resistance, non-toxic, hygiene, physical properties better than organic glass. Transparent PVC board use: this product is widely used in equipment guard plate, interior decoration, drinking water tank, liquid level display, etc.
