Product details

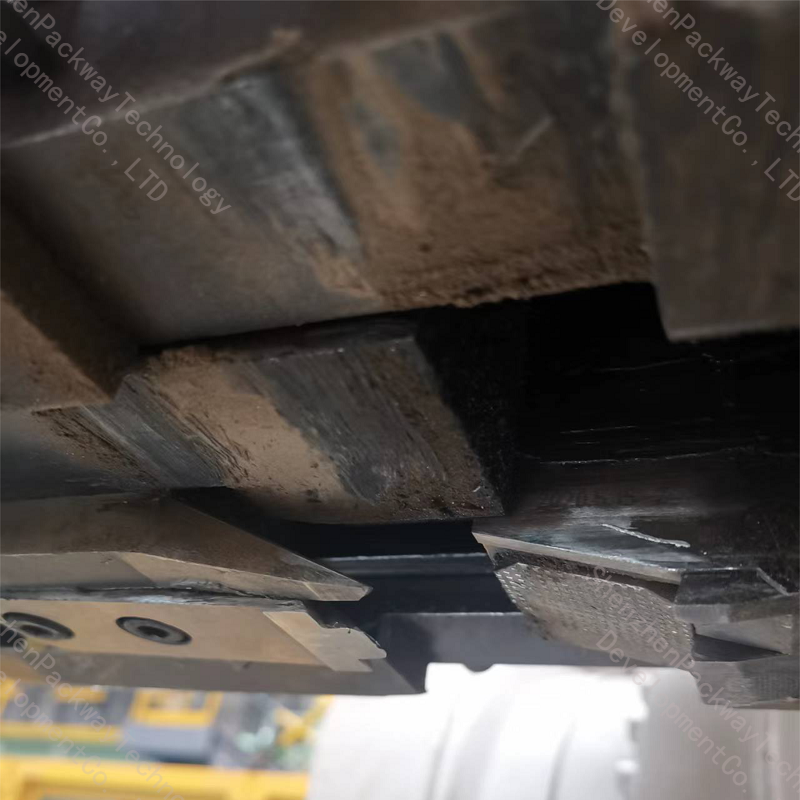

The machine head of the DGR Clipping belt machine can move horizontally and rotationally, automatically find and locate the connection of strapping belt, and automatically detect the position and number of straps on the surface of the steel coil. The shearing head is equipped with the positioning claw and the shearing knife, and the steel coil signal source component is set next to the shearing mechanism. The built-in bending and recovery device can automatically wind up the waste strapping belt and collect it into the waste hopper, effectively avoiding accidents and improving the safety factor of operations.

The clipping belt machine belongs to Fully Automatic Mechanical Equipment, plays a role in Coil Packing Line, and provides Packing Solutions For Metal Industry.

Details Images

The DGR Clipping belt machine consists of shearing mechanism, rotating arm, frame, tape feeding mechanism, fixed pinch roller, discharge bin, tape take-up mechanism, and electronic control system.

Other Company Products

1.Stable product performance: ≥99.9%, success rate of 1000 consecutive balings;

2.Less annual consumption of spare parts: Cost ≤50% less compared with other brands of strapping machines;

3.Steel belt requirements: All steel belts can be used, and our company will provide reference values for steel belts;

4.Tension breaking force: It can break the maximum tension of all steel belts on the market, and the tension is adjustable. No matter how much tension is applied, the damage to the steel belt is zero.

Intelligence: Automatically find the joint of strapping belt, detecting the position and quantity of the strapping belt, then automatically cut strapping belt.

Safety: The strapping belt is automatically rolled up and collected into the waste hopper, effectively avoiding accidents and improving operation safety.

Efficient: Automated equipment replaces manual operations, reducing workers' labor intensity and improving labor efficiency.

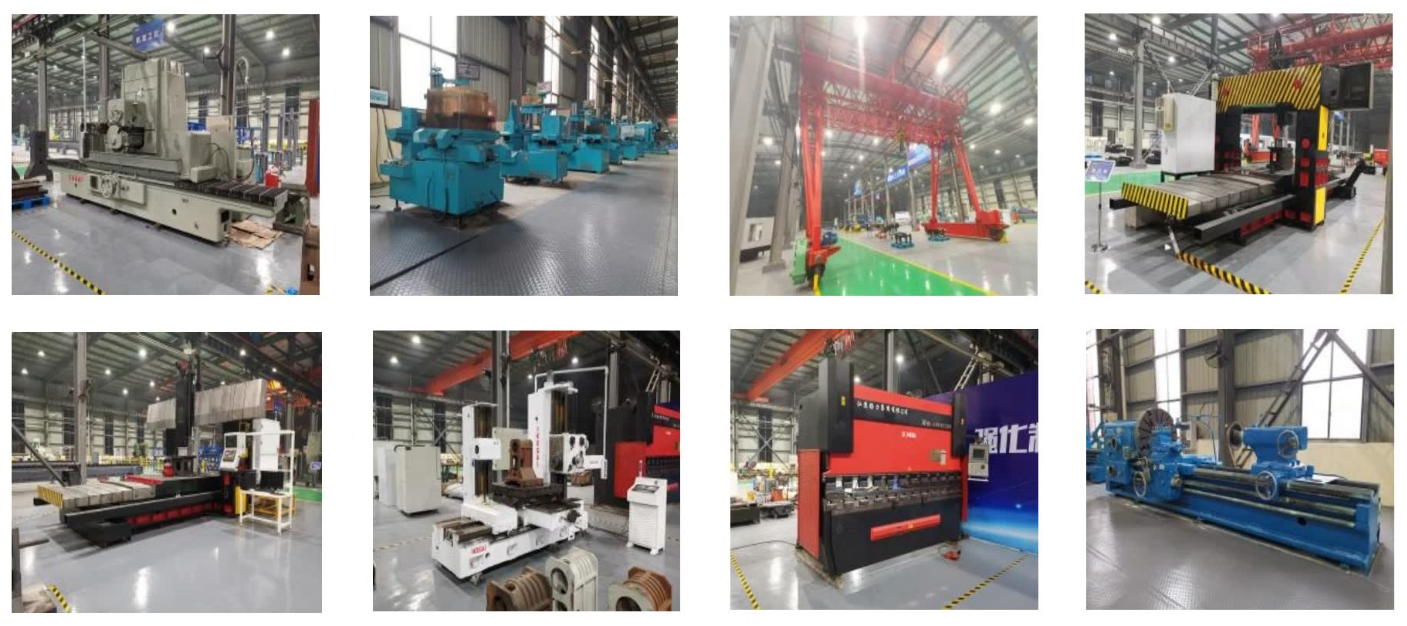

Company Profile

Shenzhen Packway Technology Development Co., LTD, Founded in March 2005, has been at the forefront of innovation, constantly striving to develop cutting-edge technologies and solutions. We currently operate three subsidiary companies, each connected with different sectors of the machinery market.
