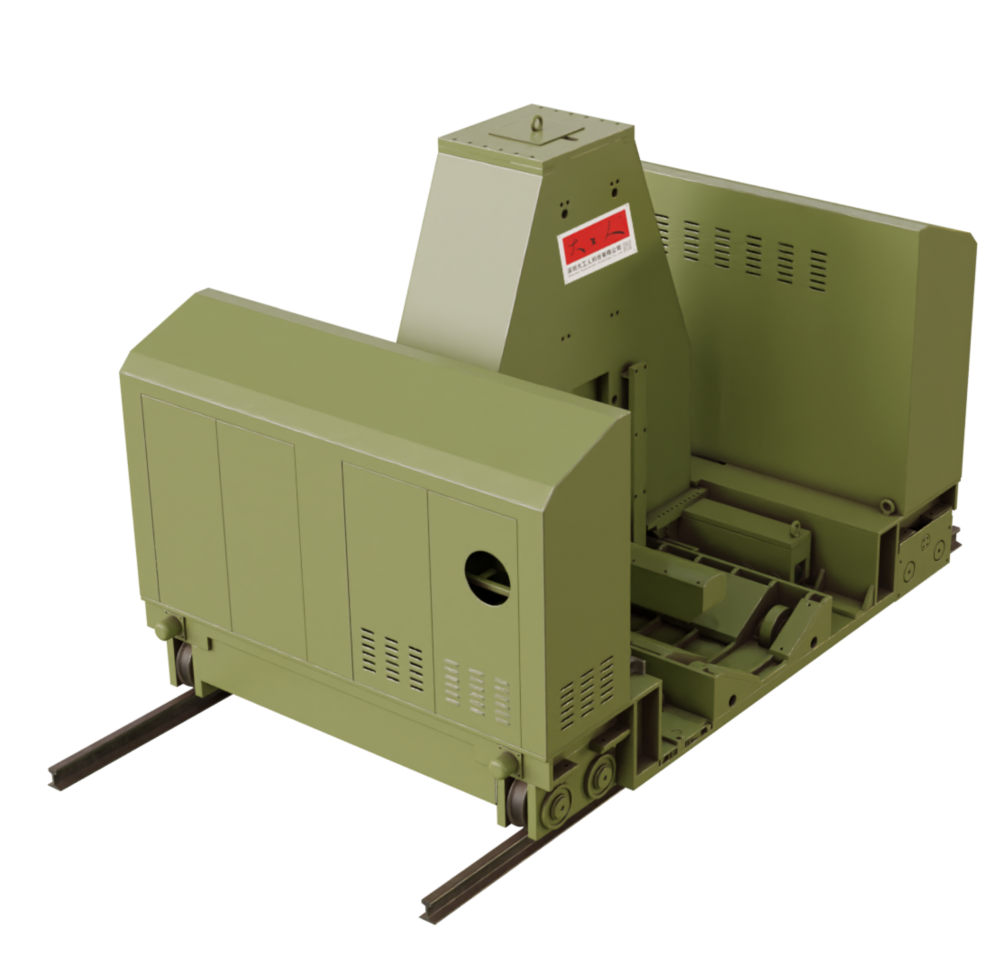

Intelligent warehousing has become more an more popular, which greatly improves production efficiency and reduces mistakes, and also saves space and realizes intelligent management for factories. Packway provides integrated packaging solutions for customers as well as all kinds of related equipment, like the ground vehicle that is specially designed for coil materials' transportation.

Specifications of The Ground Vehicle

1. Method of taking coil: Lift the arm into the coil inner hole and lift the steel coil.

2. Method of transporting coil: The coils are places on the large saddle of the parent vehicle, and the parent vehicle performs high-speed linear motion.

3. PLC system: The vehicle comes with a built-in PLC system, which enables wireless data transmission with the base station.

4. Detection system: It has the function of self detecting the diameter and width of coil.

5. Vehicle monitoring: Equipped with a vehicle monitoring system to monitor the status of loading and unloading coils in real-time.

6. Max speed: The maximum speed of parent vehicle is 1.5m/s.

7. Anti collision detection: The parent vehicle has anti-collision detection function.

8. Power supply methods: There are three power supply modes to choose from: sliding contact line power supply, cable tray power supply, and charging battery power supply.

9. Positioning function: With laser distance detection and positioning, scale detection and positioning, proximity switch detection and positioning, multiple positioning modes cooperate to achieve precise positioning.

10. Contact method: The surface of the groud track of the parent vehicle is flush with the ground.

11. Contact method: There is a track holding action when the child vehicle track is aligned with the groud track.

12. Contact method: The child vehicle can detach from the parent vehicle at a long distance.
