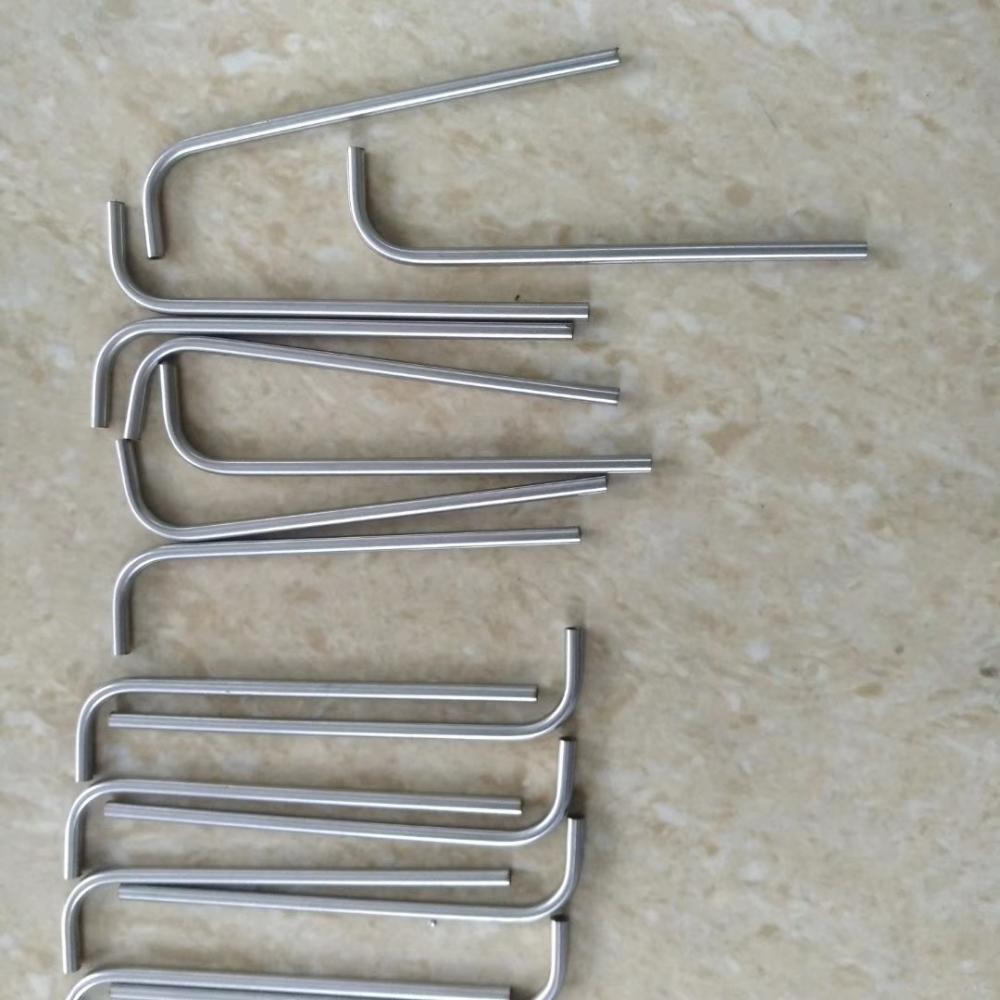

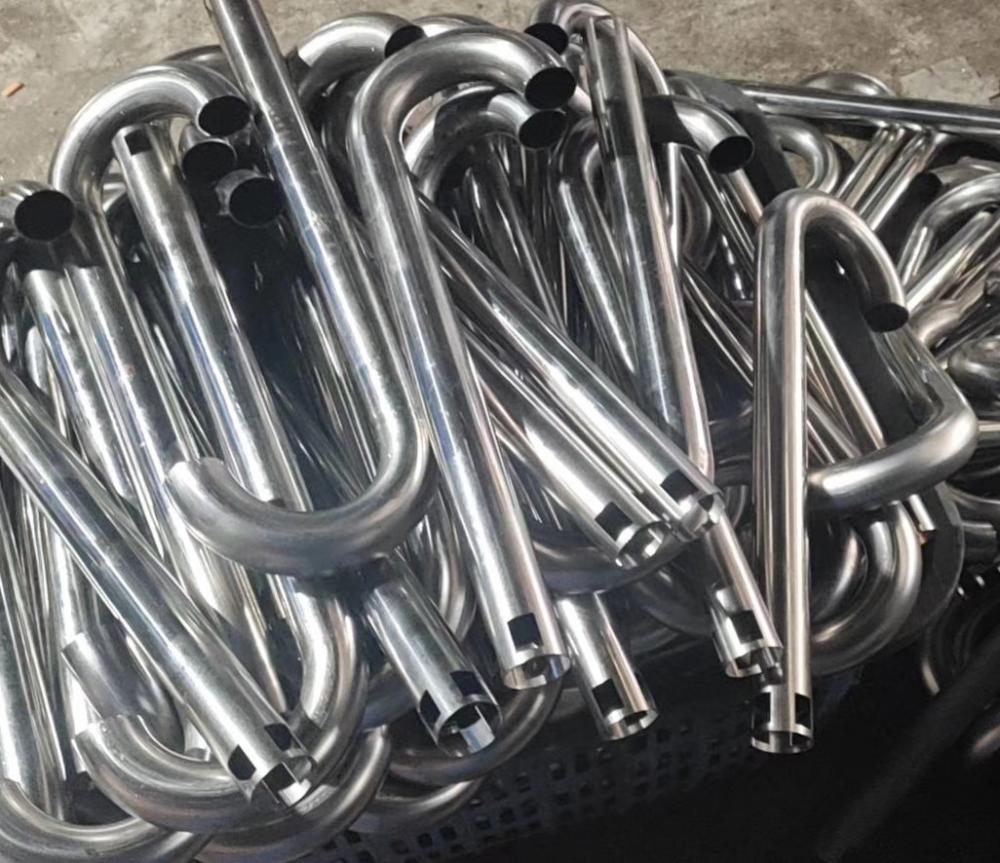

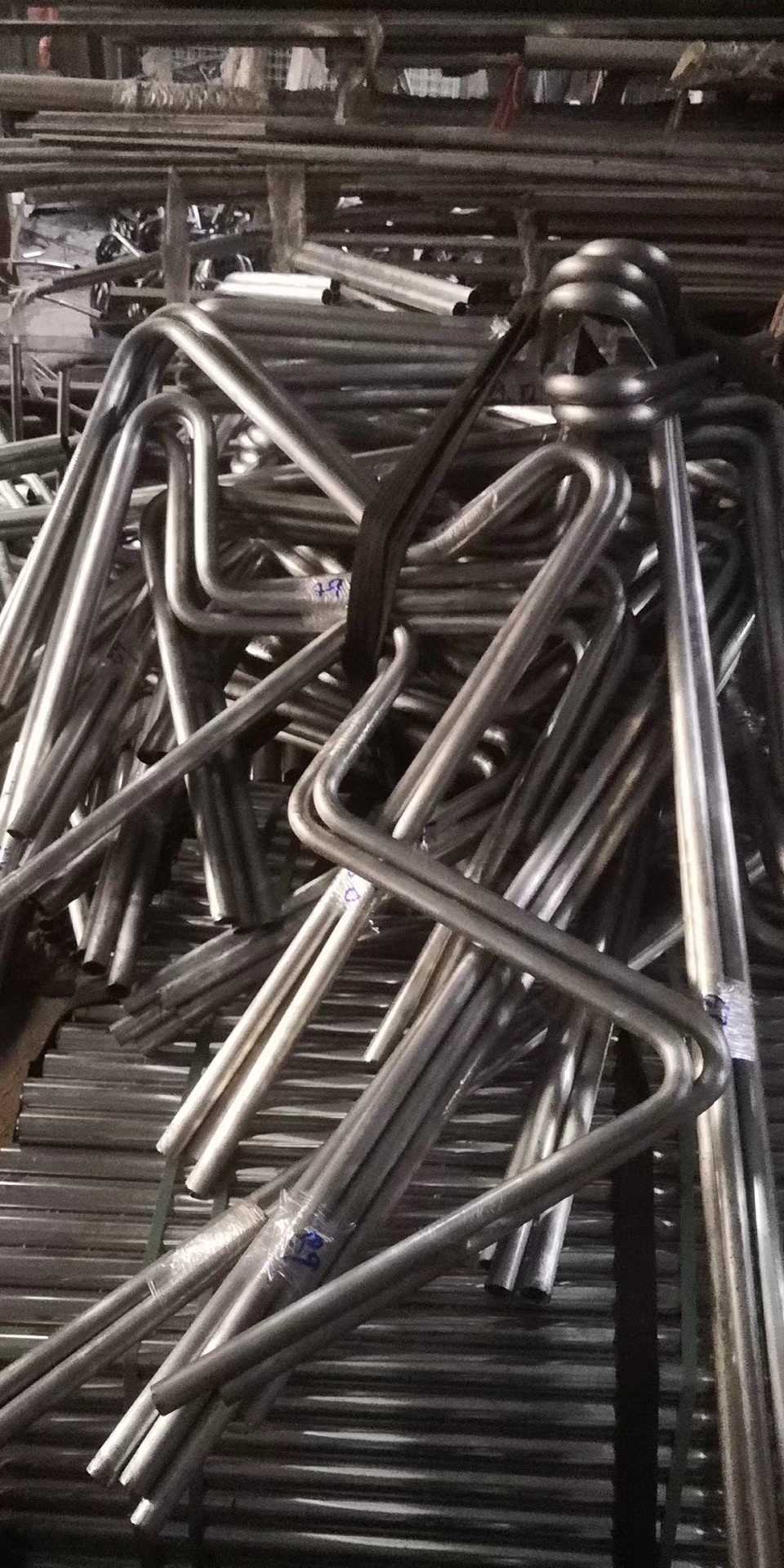

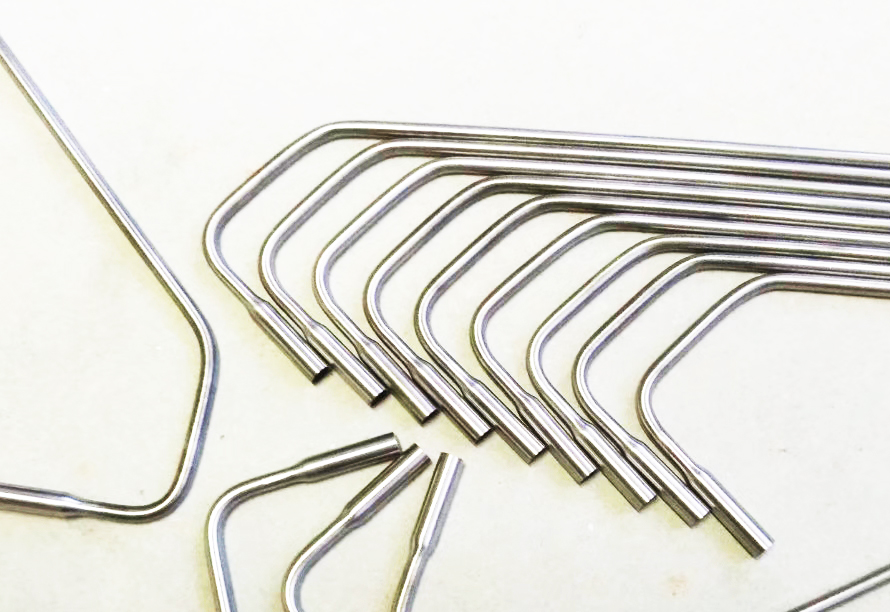

304 stainless steel bending pipe processing and de

Stainless Steel Pipe

Stainless Steel Shaped Tube

Hydraulic And Pneumatic Stainless Steel Elbow Fittings

  Classification of stainless steel pipe fittings:

Stainless steel pipe fittings are a kind of pipe fittings and are made of stainless steel, so they are called stainless steel pipe fittings. It includes: stainless steel elbow, stainless steel tee, stainless steel cross, stainless steel reducer, stainless steel cap, etc.
  Due to the excellent corrosion resistance of stainless steel, stainless steel elbow manufacturers can maintain the integrity of engineering design of structural components. Chromium-containing stainless steel also combines mechanical strength and high ductility. It is easy to process and manufacture components, which can meet the needs of architects and According to the needs of structural designers, stainless steel stamping elbows will not cause corrosion, pitting, rust or wear. In construction metal materials, stainless steel is still one of the high-strength materials, and the auxiliary materials should be prepared with appropriate amounts of cerium tungsten electrodes, cotton yarn, acetone , Cutting special cooling oil and not less than 99.99% argon.


  Precautions for using stainless steel stamping elbows:


  1. The electrode should be dry during use, the titanium calcium type electrode should be dried at 150°C for 1 hour, and the low hydrogen type should be dried at 200-250°C for 1 hour (do not re-dry) to avoid the coating of the electrode getting oily and Other dirt, so as not to increase the carbon content in the weld and affect the quality of the weldment.
  2. In order to avoid intergranular corrosion caused by heating, the welding current should not be too large, about 20% smaller than the welding current of carbon steel electrodes, the arc should not be too long, and the interlayer cooling should be fast, and a narrow weld bead is appropriate .
  3. For stainless steel stamping elbow, add appropriate amount of stable elements Ti, Nb, Mo, etc. to improve corrosion resistance and weldability. When using the same type of chrome stainless steel electrode, it should be preheated to above 200°C and tempered to about 800°C after welding. If the weldment cannot be heat treated, a chrome-nickel stainless steel electrode should be used.

• Specification

       Elbows are pipe fittings that change the direction of the pipeline. What is the standard of the elbow? According to the angle, there are three most commonly used ones: 45° and 90° and 180°, and 60 is also included according to the needs of the project. and other abnormal angle elbows. What are the elbow standards? The elbow market research report shows that the elbow materials include cast iron, stainless steel, alloy steel, malleable iron, carbon steel, non-ferrous metals and plastics. The elbow standard table shows that according to the production process, it can be divided into: welding elbow, stamping elbow, push elbow, rust elbow and so on.

• Advantages

    1. Stainless steel stamping elbow will not produce corrosion, pitting, rust or wear. Stainless steel is also the strongest material among metal materials for construction.

    2. The stainless steel pipe fitting elbow has excellent corrosion resistance. The thin and strong oxide film on the surface of stainless steel makes stainless steel have excellent corrosion resistance in all water quality, even if it is buried in the ground. Therefore, it is suitable for all kinds of water quality. In addition to disinfection and sterilization, it does not need to control the water quality. At the same time, there is no corrosion and excessive exudate. It can keep the water quality pure and hygienic, prevent secondary pollution, and can withstand up to 30 meters per second. high current impact.

   3. The stainless steel pipe fitting elbow has high connection strength and anti-vibration. The connection part is made firm at one time, avoiding the possibility of loose joints, and the construction is convenient and fast, avoiding on-site welding operations and threading operations. long lasting. Field corrosion test data show that the service life can reach 100 years, and the stainless steel elbow hardly needs maintenance. Therefore, its performance-price ratio is very good, the operating life cost is low, and the economic benefit is significant.
   4. The on-site installation of stainless steel elbows is extremely convenient, and the installation time is only 1/3 of the welding pipe fittings or wire sleeves, which shortens the construction period and costs, and avoids water leakage.
   5. Stainless steel stamping elbow will not produce corrosion, pitting, rust or wear. Stainless steel is also the strongest material among metal materials for construction. Because stainless steel has good corrosion resistance, it enables structural components to maintain engineering integrity. Chromium-containing stainless steel also combines mechanical strength and high elongation, and is easy to process and manufacture components to meet the needs of architects and structural designers.

  We can offer Stainless Steel Pipe products, including Stainless Steel Capillary Pipe,  Stainless Steel Precision Pipe,  Stainless Steel Seamless Pipe,  Stainless Steel Sanitary Pipe,  Thick Wall Stainless Steel Pipe, Stainless Steel Bright Tube,  Stainless Steel Needle Tube, Stainless Steel Fine Tube, Stainless Steel Coil, Welded Stainless Steel Pipe,  Stainless Steel Industrial Pipe, Stainless Steel Round Tube,  Medical Stainless Steel Tube,  Stainless Steel Thin Wall Tube,  Stainless Steel Shaped Tube, Stainless Steel Elbow, Stainless Steel Snake Bone Tube, Stainless Steel Decorative Tube, Stainless Steel Electronic Cigarette Tube, Stainless Steel Tube Processing, Copper Pipe,  Titanium Alloy Tube, Aluminum Tube, and so on.

  Stainless Steel Elbow from HaoFa helps distributors of Stainless Steel Products to gain the market, with eco-friendly and steady quality, customized service, and favorable prices.

    Looking for an ideal Stainless Steel Fittings Mill 3.1 Elbow Manufacturer & supplier? We have a wide selection at good prices to help you get creative. TOBO GROUP ASTM A815 SS Elbow are quality guaranteed. We are a China Origin Factory of Well Supplying ASTM 316 SS Elbow. If you have any questions, please feel free to contact us.
