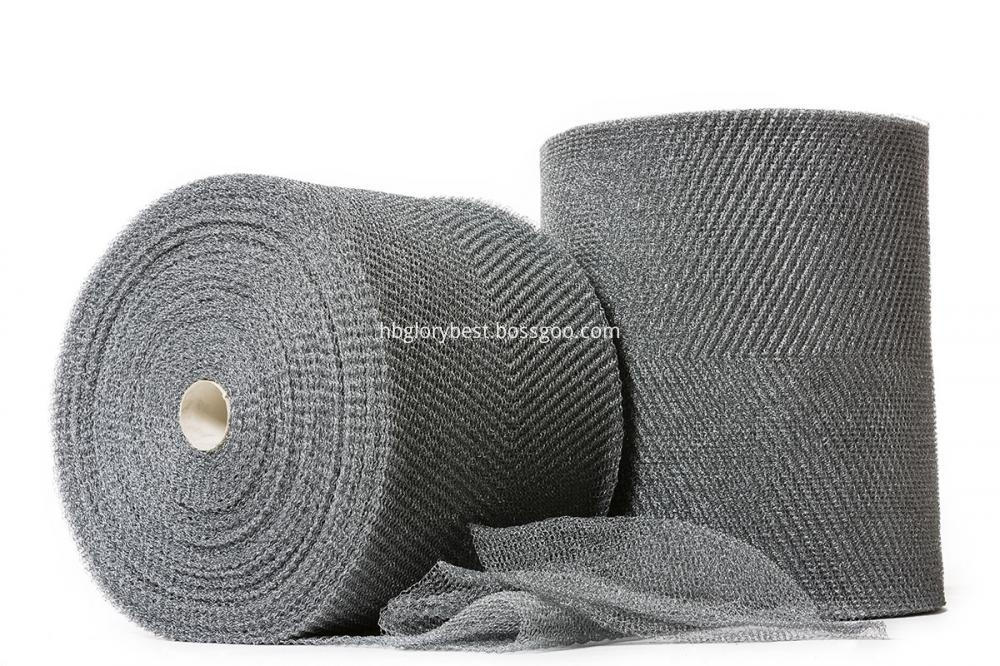

Knitted Wire Mesh

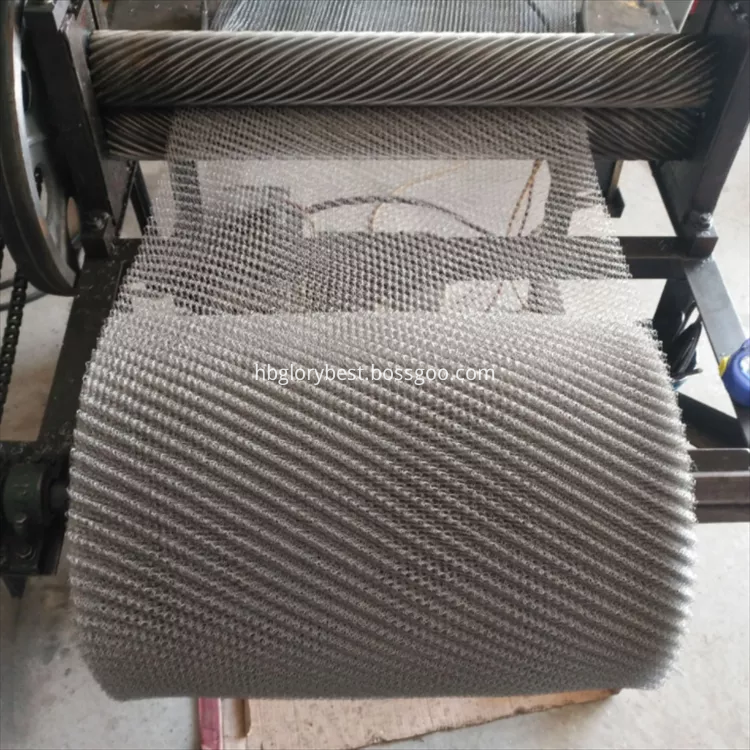

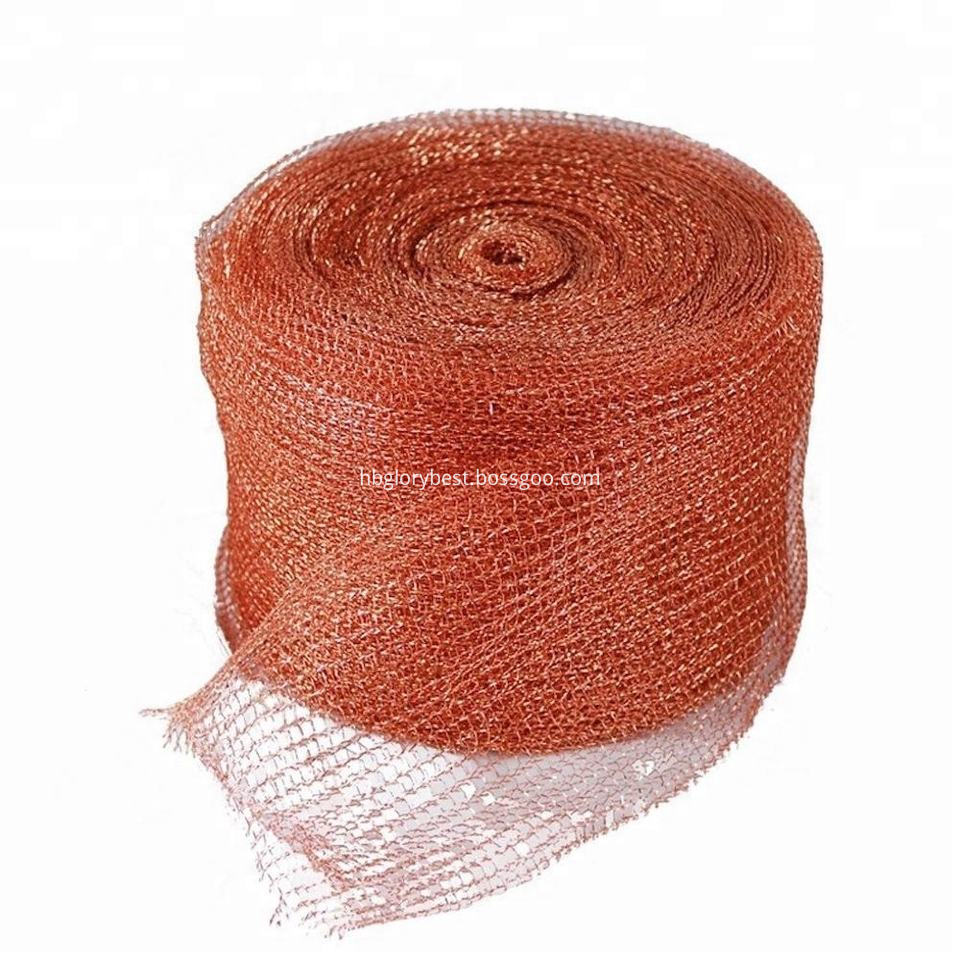

Glorybest owns more than 20 different types of weaving machine, which can produce with the wire diameters ranging from 0.08mm to 0.3mm,the max.width is 30 inch, The material: stainless steel wire, copper wire, polyethylene wire, Nylon wire etc.The molded mesh work can be rolled to wave type. And there are kinds of materials for the clients to choose.

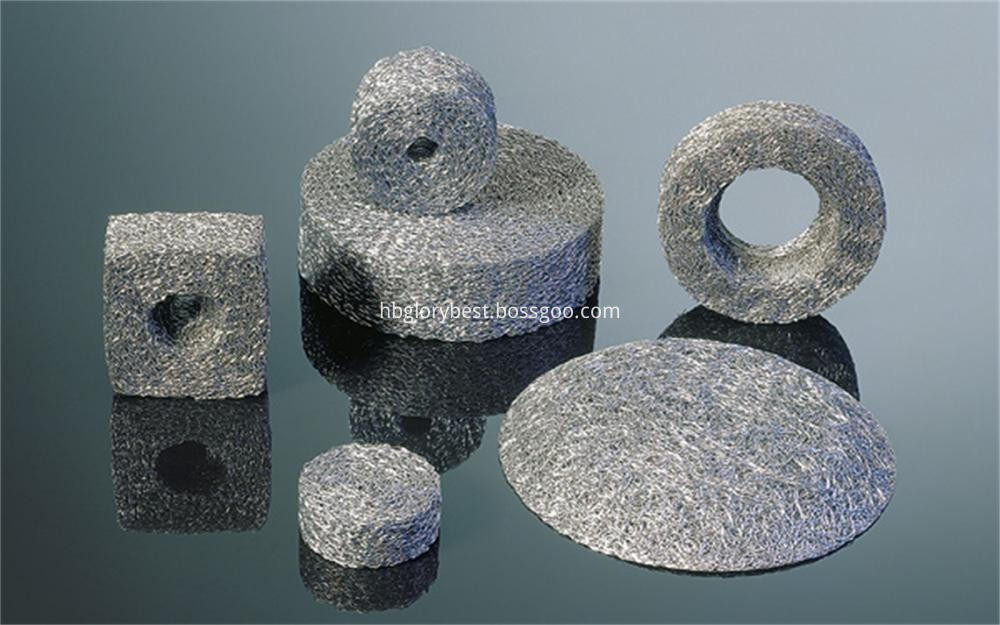

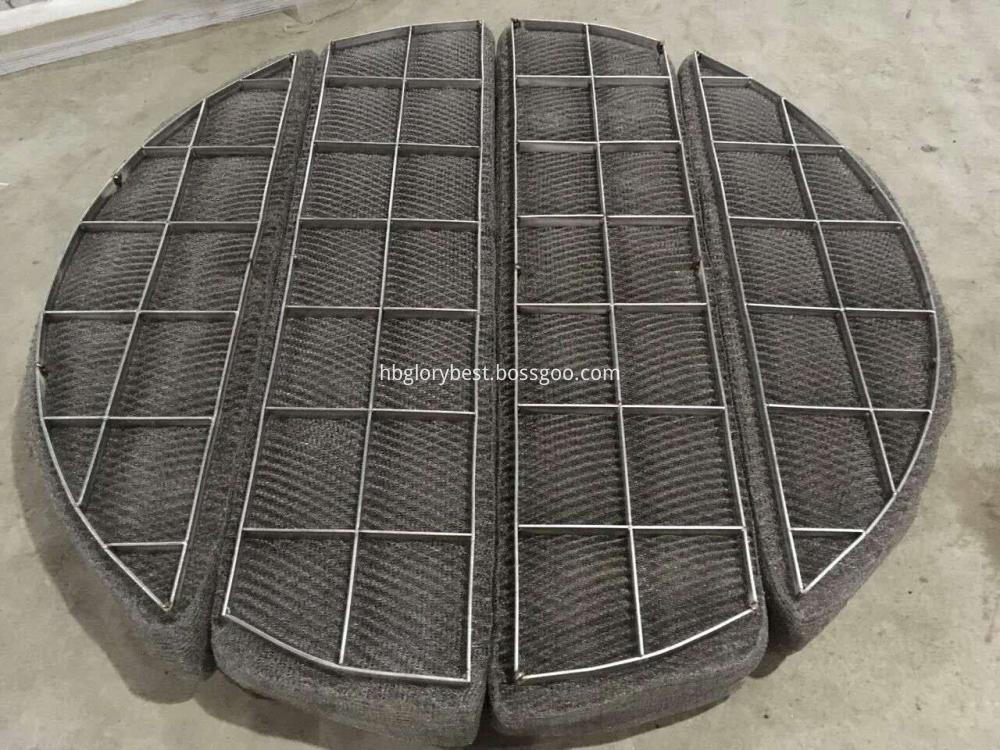

Knitted wire mesh is a mesh work weaved in a special way. It's not only one of the mostly used component in wire-mesh demister manufacturing and other separation engineering , but also is widely used in automobile industry. With the continuous development of industry, people know more and more about the applicable fields and application scope of knitted fabric.
The standard prescribes of the three types gas-liquid filter screen, namely, standard type, high efficiency type and great penetration type.They are showed in the following list.
|
type |
holes No.&mesh width |
wire dia.(MM) |
Material |
Weight (kg/sqm) |
|
Standard |
40-100 |
0.1*0.4 |
1Cr18Ni9 |
1/0.5 |
|
60-80 |
0.1*0.4 |
1Cr18Ni9 |
1/0.5 |
|
|
140-400 |
0.1*0.4 |
1Cr18Ni9 |
1/0.5 |
|
|
40-100 |
0.27 |
Lead wire with Zn-coating |
1/0.7 |
|
|
40-100 |
0.1*0.4 |
Copper wire |
1/0.7 |
|
|
High efficiency |
90-100 |
0.1*0.3 |
Stainless steel wire |
1/0.6 |
|
80-100 |
0.1*0.3 |
Stainless steel wire |
1/0.6 |
|
|
90-150 |
0.1*0.3 |
Stainless steel wire |
1/0.6 |
|
|
200-400 |
0.1*0.3 |
Stainless steel wire |
1/0.6 |
|
|
Great penetration |
20-160 |
0.1*0.4 |
Stainless steel wire |
1/0.4 |
|
30-150 |
0.1*0.4 |
Stainless steel wire |
1/0.4 |
|
|
70-400 |
0.1*0.4 |
Stainless steel wire |
1/0.4 |
|
|
Other types as your requirements |
||||
