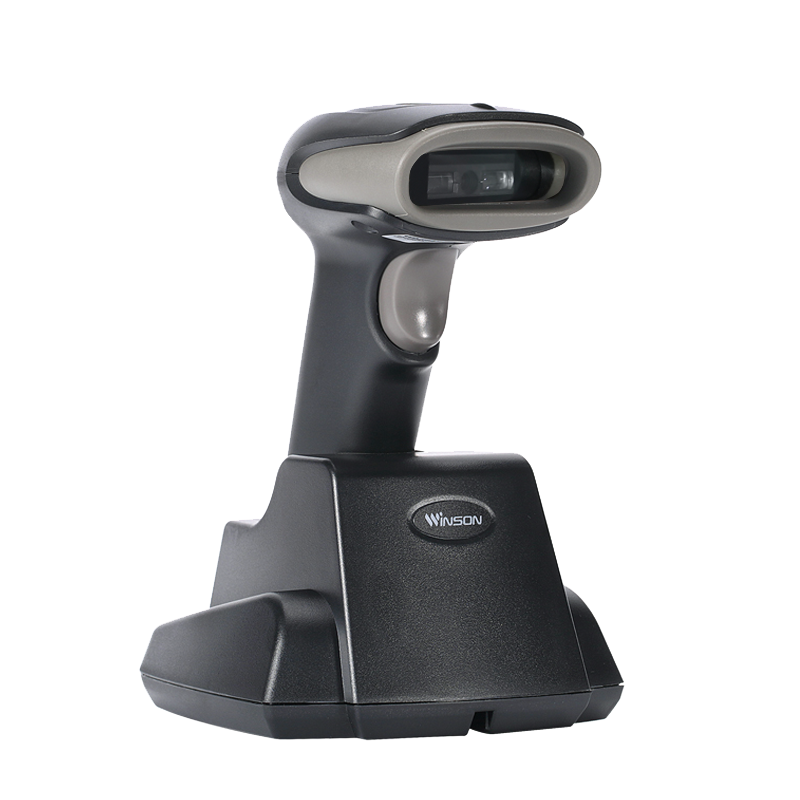

Wireless portable 1d BT handheld barcode scanner for mobile payment1
3 year ago
view more >>Recommended by seller
32-bit master chip equipped with patented software, the scanner can smoothly decode reflective, wrinkled, blurred, and colorful barcode, and can also normally scan in light and dark environment.
|
Communication mode
|
Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode
|
|
Communication frequency
|
433MHz-440MHz
|
|
Transmission range
|
≤100M（In empty area 100M ）
|
|
Battery capacity
|
2000mAh (Lithium battery)
|
|
Charge Time from Empty to Full Charge
|
6H
|
|
Scans per Battery Charge
|
45,000 （1 scan per second）
|
|
Memory
|
100，000@13Byte barcode
|
|
Interface Supported
|
USB HID KEYBOARD/USB VCP
|
|
Input Voltage
|
DC 5V±10%
|
|
Current
|
Max:135mA
|
|
Image Sensor
|
CCD Linear Sensor
|
|
Sensor Resolution
|
Sensor Resolution
|
|
Light Source
|
632nm Red LED
|
|
Decoding rate:
|
350 scans/second±20 scans/second
|
|
Scanning Angle
|
Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
|
|
Min Resolution
|
0.115/4.5mil（PCS 0.9）
|
|
Min .PCS value
|
〉25%UPC/EAN 13（13mil）
|
|
Language
|
Multiple Languages
|
|
Data Edition
|
Support for custom data output
|
|
Decode Capability
|
EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE
11，CHINESE POST |
|
Dimensions
|
Scanner：90mm*67mm*168mm(L*W*H)
Receiver：145mm*112mm*74mm(L*W*H) |
