Product Description USB Hubs Docking Station with SSD Enclosure

Thunderbolt 3 9-in-1 Multiport USB-C Docking Station

Thunderbolt3 interface is a fusion of PCI Express data transfer technology and DisplayPort display technology; it can transmit data and video simultaneously; Thunderbolt3's two channels can not only transmit data simultaneously, but each channel also provides bi-directional 20Gb/s rate, i.e. Thunderbolt3 bandwidth of up to 40Gb/s, which is 8 times that of USB3.0 and 4 times that of USB3.1.

Product Name	Thunderbolt 3 9-in-1 Multiport USB-C Docking Station
Material	Aluminum alloy
Ports	10 Ports
Color	Space Grey ,support customized

Thunderbolt 3 9-in-1 Multiport USB-C Docking Station

Interface

A.	Thunderbolt 3 40Gbps x 2
B.	Display Port 1.4 x 1
C.	USB3.1 Gen 2 10Gbps Type A x 2
D.	USB3.1 Gen 1 5Gbps Type A x 1
E.	U10/100/1000M Ethernet x 1
F.	SD4.0(UHS-II)
G.	Cfast2.0 Card-Reader x 1
H.	20V/6A DC IN x 1

Features

A. Intel Titan Ridge Universal docksupport both Thunderbolt Host and MFDP host PC or Notebook.

(Intel Alpine Ridge is old version, only support Thunderbolt3 host PC or Notebook)

B. Supports 2x thunderbolt3 40Gbps and Thunderbolt3 daisy chain.

C. Supports single 8K 60Hz(7680x4320),5K 60Hz (5120x2880) UHD or dual 4K 60Hz display output.

D. Thunderbolt Port A support PD 60W charging(5V/9V/15V/20V 3A).

E. Thunderbolt Port B support PD 15W charging(5V3A).

F. USB3.1 Gen 2 Type A supports 1000MB/S and 5V1.5A.

G. USB3.1 Gen 2 Type C supports 1000MB/S and 5V3A.

H. SD4.0 (UHS-II) Card-Reader Supports 280MB/S

I. Cfast2.0 Card-Reader Supports 500MB/S

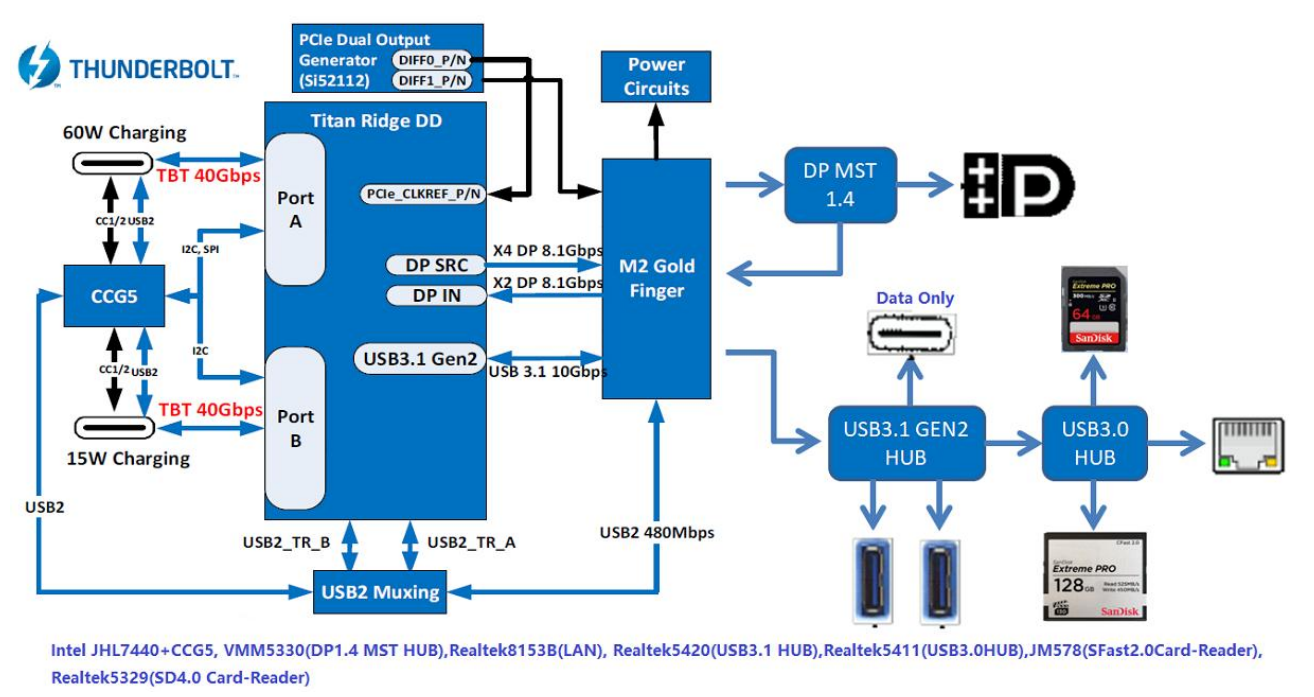

Block Diagram

Thunderbolt 3 9-in-1 Multiport USB-C Docking Station

Operating System Support

A. Mac OS X 10.12 and future releases.

B. Windows 8/10 32 and 64 bit and future releases.

Power & Accessories

A. Power Supply: External universal Power(120W/ 20V@6A) x1.

B. Including Thunderbolt3 cable 0.7m. x1

C. User manual x1.

D. Retail Color Box x1.

Product Overviews

Thunderbolt 3 9-in-1 Multiport USB-C Docking Station
