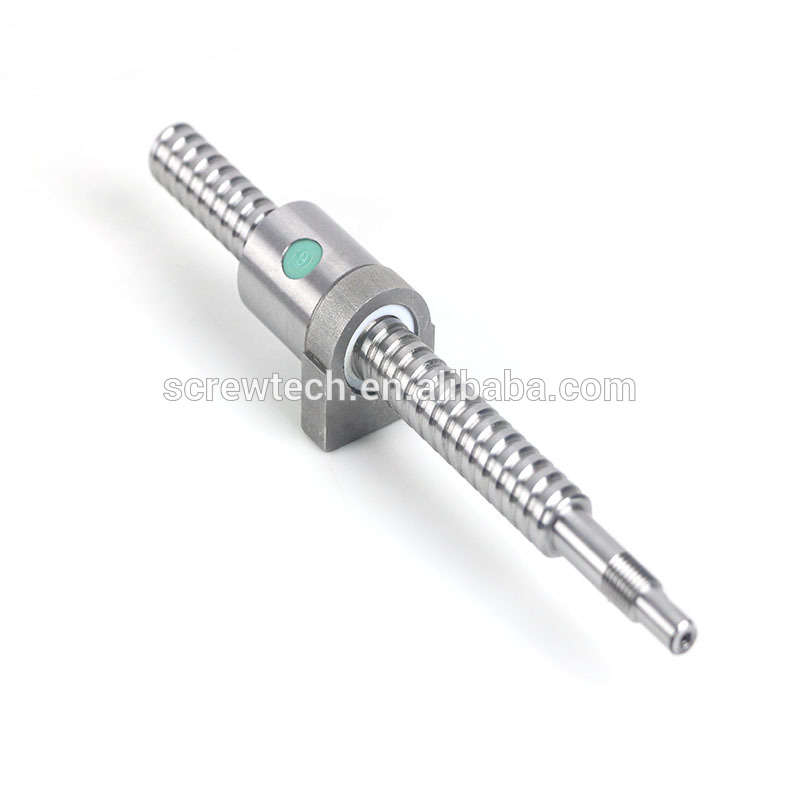

10mm Diameter Miniature Ball Screw with factory price for CNC machine
When moving an object, generally speaking, the movement generated by the power needs to be transmitted to the final moving part directly or indirectly through other mechanisms. Take the engine as an example. In the engine, the piston moves up and down due to the combustion of gasoline, and it is finally transmitted to the wheels through an intermediate mechanism to cause it to rotate.
In today's world, devices that can represent machinery and have various motion mechanisms, it can be said that all devices have some form of motion transmission mechanism. Ball screw pair is the most reasonable product that converts rotary motion into linear motion, or converts linear motion into rotary motion.
The ball screw pair is a spiral transmission element with steel balls as rolling elements between the screw and the nut. It can transform rotary motion into linear motion, or transform linear motion into rotary motion. Therefore, the ball screw pair is not only a transmission element, but also a conversion element between linear motion and rotary motion.
|
Material |
GCR15 or Stainless Steel, others available upon request
|
|
Dimension
|
Diameter : 10mm, Lead : 4mm
|
|
Thread Direction
|
Right hand ( Left hand and bi-directional all available)
|
|
Accuracy Grade
|
C3 C5 C7
|
|
Application
|
Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipment, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine etc.
|
|
Remark
|
Various ballnuts are available upon drawing
|

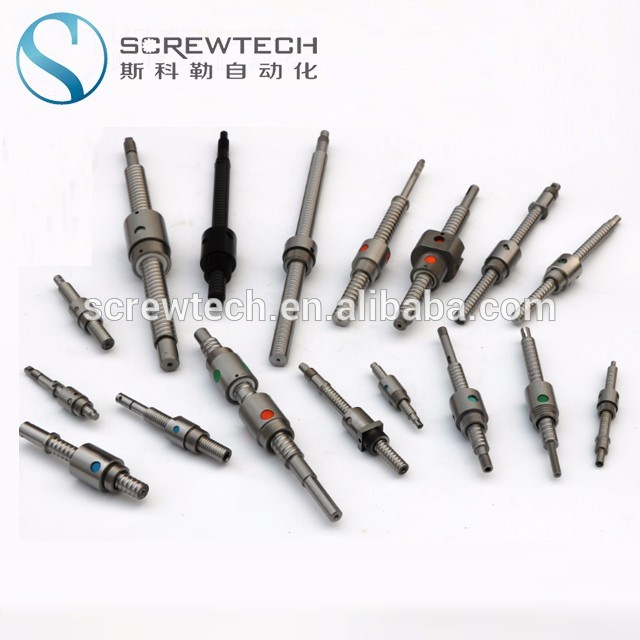

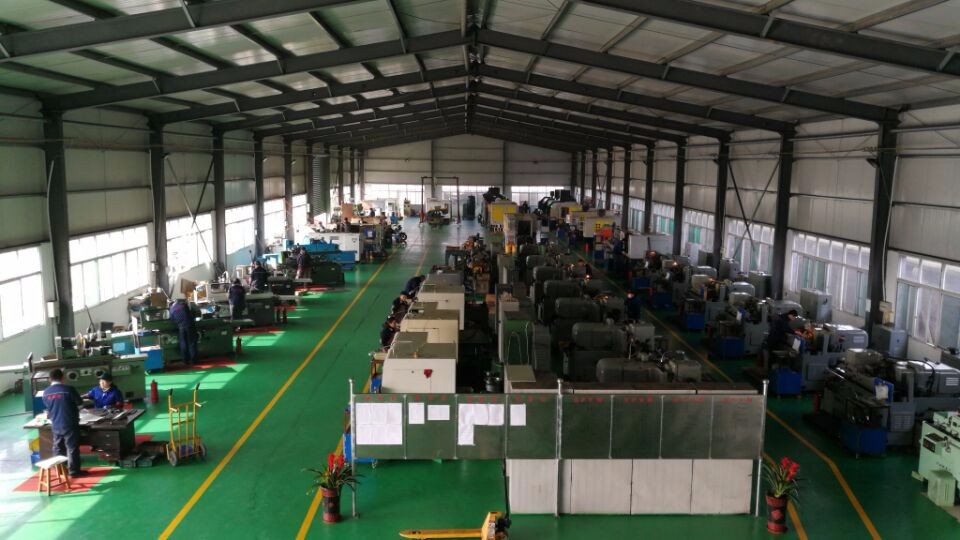

1. We Screwtech is a professional manufacturer of Ball Screws, Lead Screws. Meanwhile, Distributing Stepper Motor, Linear Guideway, AKD-Support for ball screw, Coupling, Linear Module for more than 10 years.
2. As the unique and professional original factory, we can offer you products of high quality with competitive price and fast delivery.
3. Customized service: Various models are available upon request.
4.We can produce the same size as that from HIWIN, TBI, PMI, and THK.
Features of our mini ball screw
※ High mechanical efficiency
※ Zero Axial play
※ Accuracy grade of C3, C5, C7
※ Long service life
※ Smooth running
1.We have business relations with clients both domestic and abroad.
In domestic,our distributor mainly located in Guangdong province,Shandong province,Jiangsu province.
2.With the high quality,good service as well as reasonable price,
We've kept steady and large exporting to Europe, Northern America, Australia,Korea and so on.
In cartons or Wooden cases upon your requirement
For samples:
we have DHL, FEDEX VIP account, so the shipping freight will be much cheaper after discount.
For bulk order:
we have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
Port:
Shanghai
Lead Time:
10~30 days
