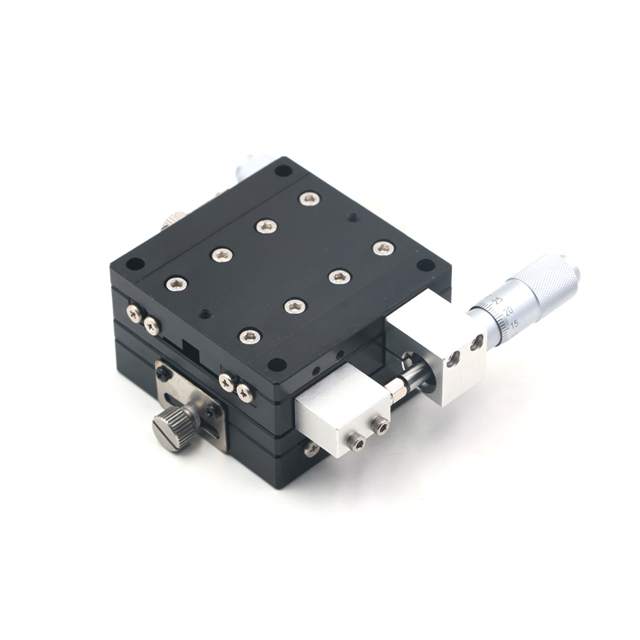

Mx125A Positioning Stage with Linear Ball is mainly divided into manual sliding table and electric sliding table. It is guided by cross roller, linear ball or dovetail groove, and adopts high precision micrometer, screw or pinion rack for linear guide rail transmission.This kind of product has the advantages of manual fine tuning, high precision and flexible application. It is widely used in optical instrument and mechanical equipment production, semiconductor manufacturing inspection, optical experiment and measurement to implement manual fine tuning, precise positioning, quantitative sliding and other occasions.Precision cross sliding table purpose: mainly used in automation equipment, non-standard automation equipment, mechanical equipment fast, accurate, equipment will be used.It is used in high precision, high speed, long stroke cleaning equipment, large spraying equipment, welding equipment, etc.It can be used in factory automatic fast cutting mechanism, robot arm grasping mechanism, etc.

Features：

(1) Lead Accuracy Up to Grade C3 C5 C7 and C10 ,screws have been Standardized. C5 on request.

(2) Mx125A Positioning Stage with Linear Ball are interchangeable between ground and rolled screws.

(3) Available to ship separately ball screw and ball nuts can be shipped separated ensure shortest delivery time. The ball nuts are standardized with light preload, also the preload value can be adjusted to zero or heavy.

Mx125A Positioning Stage with Linear Ball, we make full use of features of Miniature Ball screw manufacture and super compact design actuator can achieved the high precision C3 according to our customers’ requirement. The diameter of one of the screw shaft ends must be less than the screw shaft root diameter, otherwise ball nut cannot be installed.

For Application field, Mx125A Positioning Stage with Linear Ball also used in machine tools, robots and precision assembly equipment. Mx125A Positioning Stage with Linear Ball are used in steppers for semiconductor manufacturing.Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack.

Packaging Details:
In cartons or Wooden cases upon your requirement

For samples:
we have DHL, FEDEX VIP account, so the shipping freight will be much cheaper after discount.
For bulk order:
we have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
Port:
Shanghai
Lead Time:
7-15 days
