Snap-on /Twist-on sucker rod guide for 2-3/8 /2-7/8 tubing1
3 year ago
Snap-on sucker rod guide
1. suck rod guides
|
Type |
Centralizer I/D(inch) |
For Tubing diameter(inch) |
|
FZ3/4 |
3/4 |
2-3/8"/2-7/8" |
|
FZ7/8 |
7/8 |
2-3/8"/2-7/8" |
|
FZ1 |
1 |
2-7/8"/3-1/2" |
2.The major technical indicators
Compressive strength: 60 - 90 MPa
Impact Strength: 3.5 - 4.8 kJ/m2
Scope: 16mm,19mm, 22mm,25mm Sucker Rod
Maximum OD: 46mm/58mm
Length: 98.4 mm
Medium temperature: 0-80 °C
3.Use principles
a.If it is little partial-wear well section, a set of this product will be installed on the middle of each sucker rod.
b.If it is less serious partial-wear well section, two sets of this product will be installed on the middle and one end of each sucker rod.
c.If it is serious partial-wear well section, three sets of this product will be installed on the middle and ends of each sucker rod

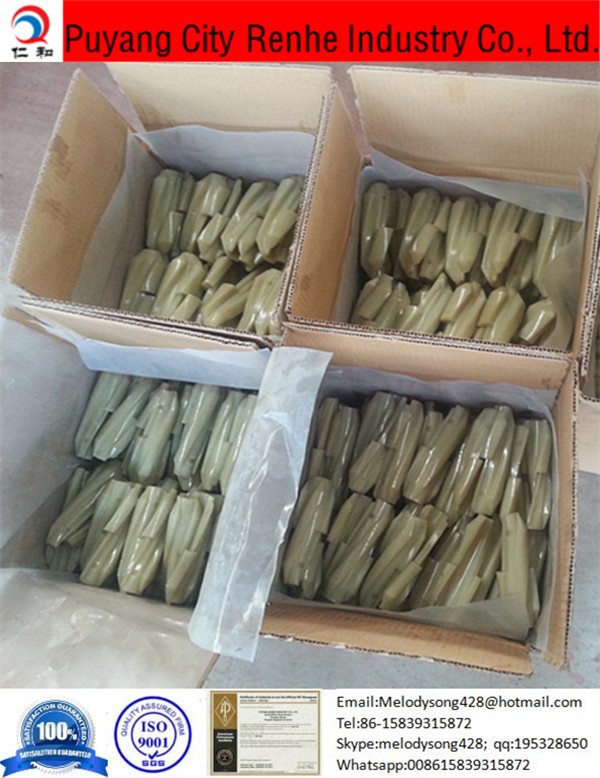

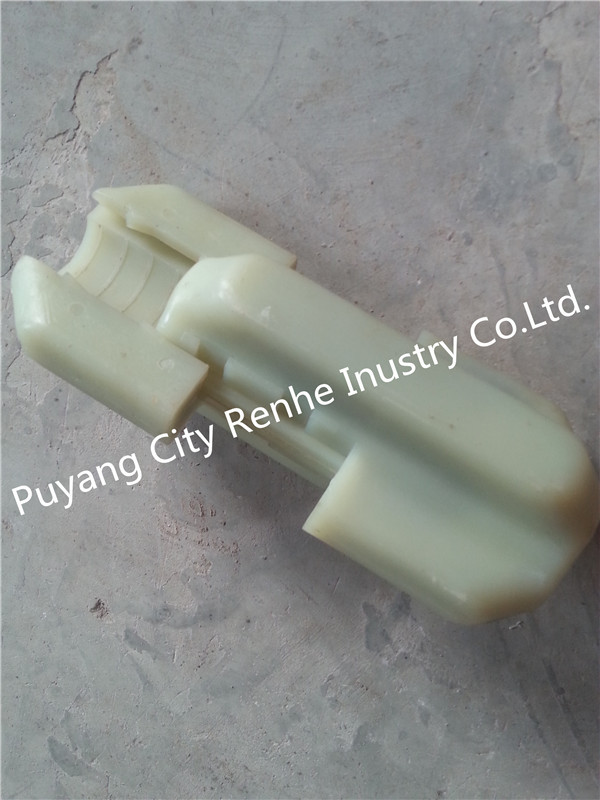

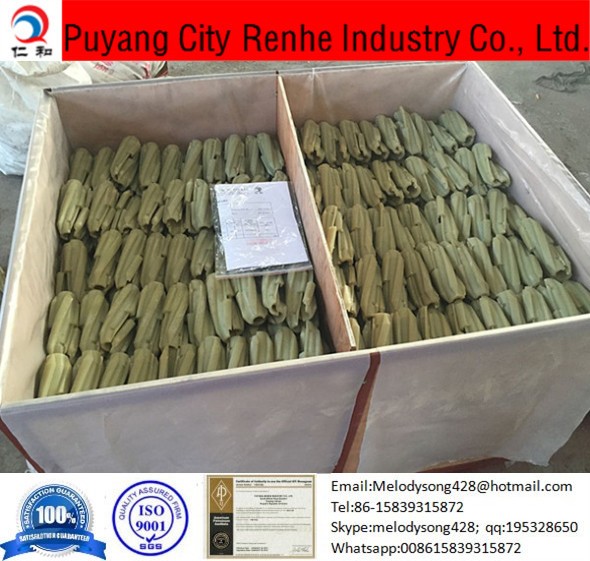

The photos
our certifications:
We can provide you with more service as per your request , please be free to contact us and visit us!
