SINOPEC PUYANG CITY Non rotating Sucker rod guide/centralizer with spindle

Product Description

Type	Main Size						Rated Load (KN)	Stabilizer Radial Extrusion (KN)	Flow Area (mm2)	Fit for Tubing ID (mm)	Working Temperature (℃)	Body Fatigue Life Time
	Body OD (mm)	Righting Sleeve ID (mm)	Shoulder Fillet Φ (°)	Righting Sleeve L. (mm)	Max OD (mm)
					Basic Size	Limitdeviation	Body Axial Tension
FZZ46-5/8in	34	24	60	90-130	46	±0.4	30	0.4	≥600	50	≤140	≥107
FZZ46-3/4in	38	27					50	0.7
FZZ46-7/8in	41	31					80	1.1
FZZ58-5/8in	34	24			58		50	0.7	≥1100	62
FZZ58-3/4in	38	27					80	1.1
FZZ58-7/8in	42	31					100	1.4
FZZ58-1in	52	35					120	1.7
FZZ72-3/4in	38	27			72	±0.5	80	1.1	≥1600	76
FZZ72-7/8in	42	31					100	1.4
FZZ72-1in	42	35

2. The major technical indicators

Centralizer body Rockwell hardness (HRC): M85-M114

Centralizer body compressive strength: 60-90 MPa

Connect button type: 19mm, 22mm, 25 mm rod buckle type

Maximum outside diameter: 72mm

Total length: 380 mm

Medium temperature: 0-100 °C

3.SINOPEC PUYANG CITY Non rotating Sucker rod guide/centralizer with spindle Use principles

a.If it is little partial-wear well section, a set of this product will be installed on three sucker rods.

b.If it is less serious partial-wear well section, a set of this product will be installed on two sucker rods.

c.If it is serious partial-wear well section, a set of this product will be installed on a sucker rod.

d.If it is the most serious partial-wear well section (and the inflection point), in addition to installing a set of this product on a sucker rod, and then installing a nylon centralizer on the middle of the rod.

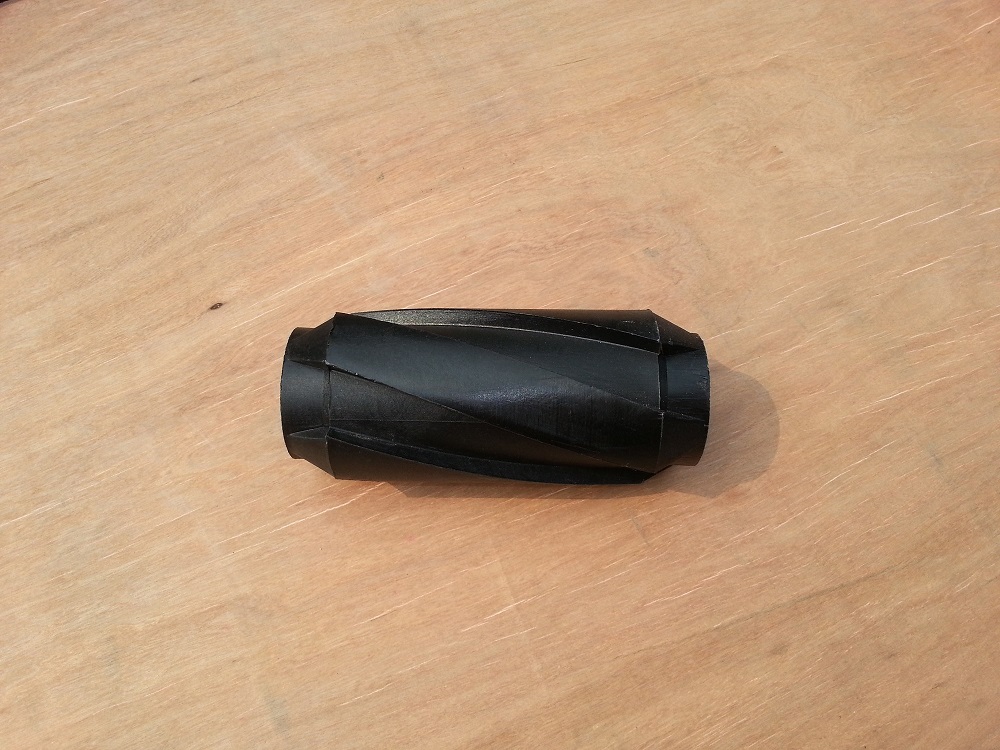

sleeve for sucker rod guide

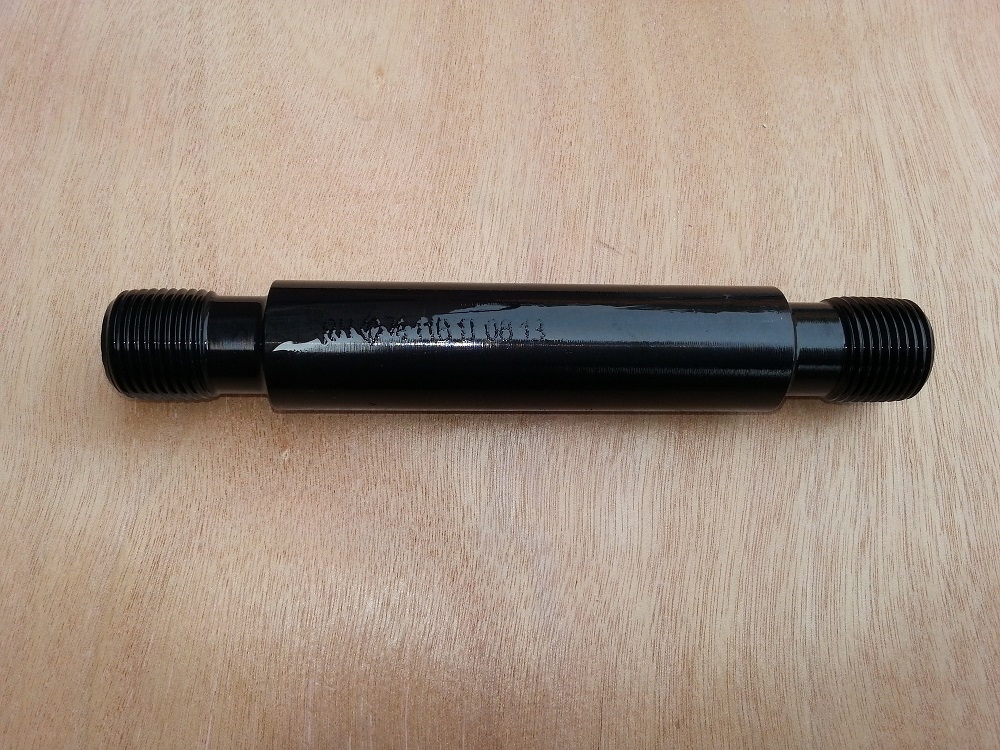

spindle for sucker rod guide

non-rotating sucker rod guide

non-rotating sucker rod centralizer

Packaging & Shipping

package
