Oilfield SXL Sucker rod Nylon centralizer/ Guides1
3 year ago

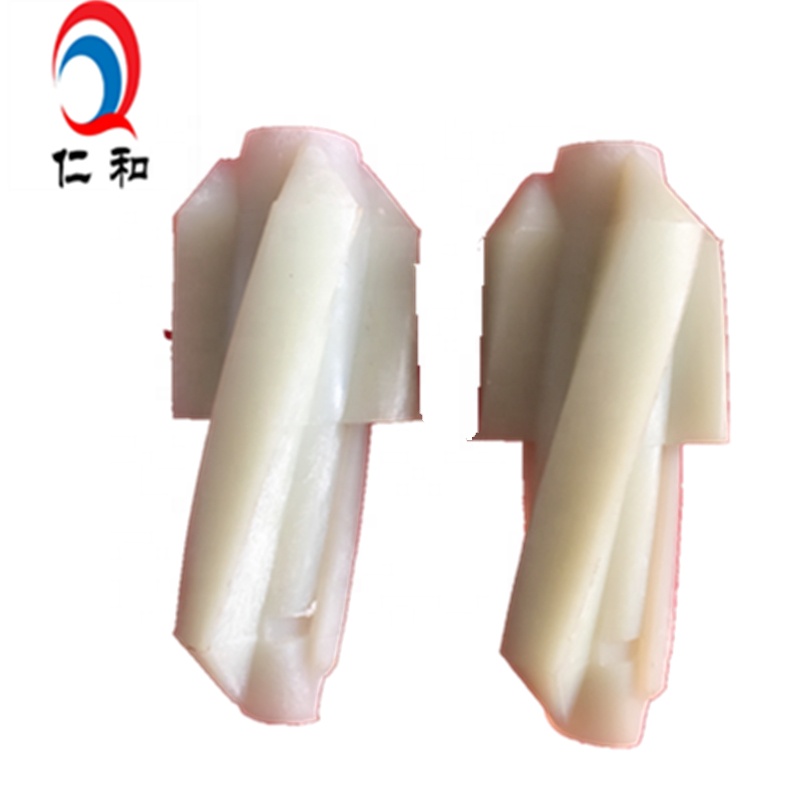

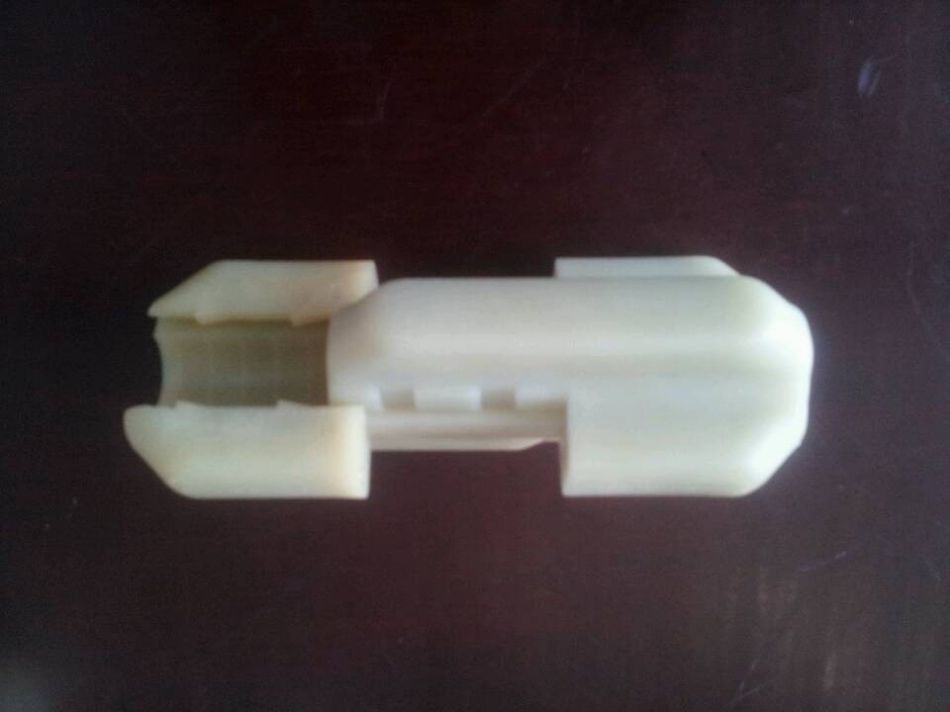

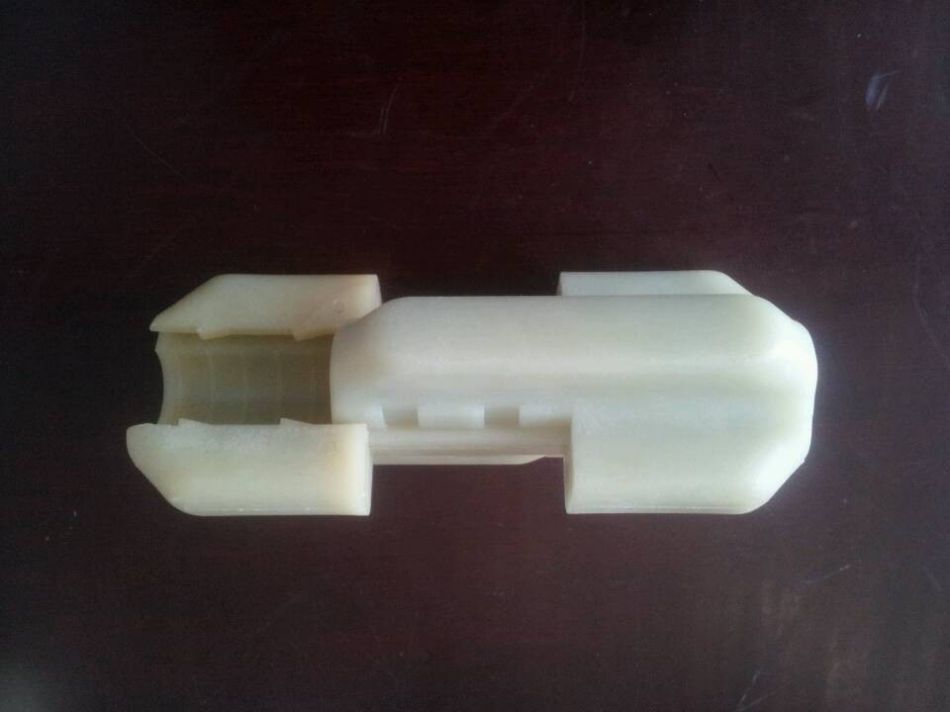

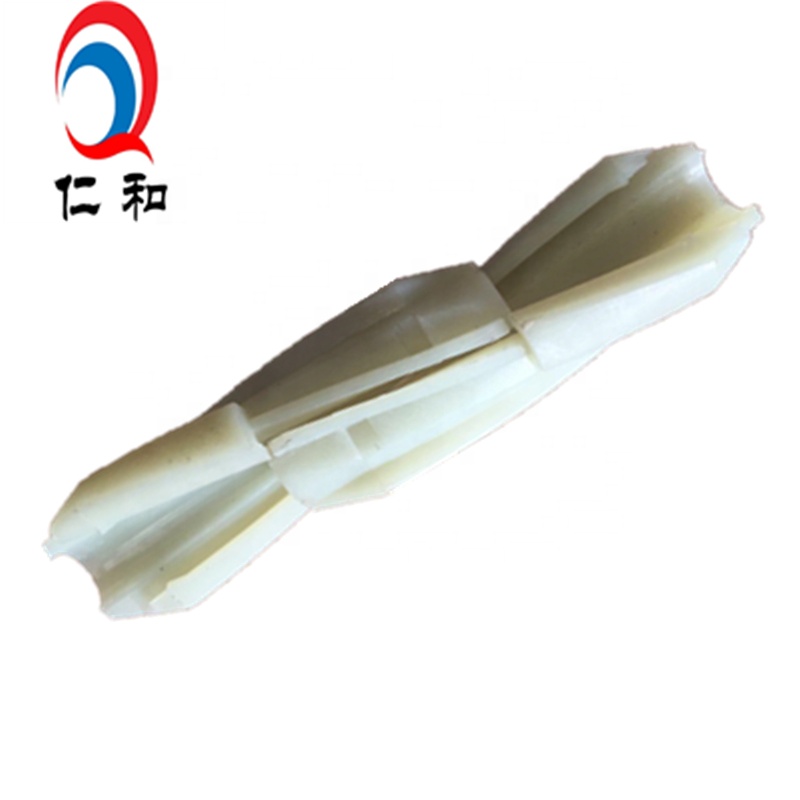

Oilfield SXL Sucker rod Nylon centralizer /Guides
1.
|
Type |
Centralizer I/D(inch) |
For Tubing diameter(inch) |
|
FZ3/4 |
3/4 |
2-3/8"/2-7/8" |
|
FZ7/8 |
7/8 |
2-3/8"/2-7/8" |
|
FZ1 |
1 |
2-7/8"/3-1/2" |
2.The major technical indicators
Rockwell hardness (HRC): M85 - M114
Compressive strength: 60 - 90 MPa
Impact Strength: 3.5 - 4.8 kJ/m2
Scope: 19mm, 22mm Sucker Rod
Maximum OD: 58 mm/72mm
Length: 135 mm
Medium temperature: 0-100 °C
3.Use principles
a.If it is little partial-wear well section, a set of this product will be installed on the middle of each sucker rod.
b.If it is less serious partial-wear well section, two sets of this product will be installed on the middle and one end of each sucker rod.
c.If it is serious partial-wear well section, three sets of this product will be installed on the middle and ends of each sucker rod.

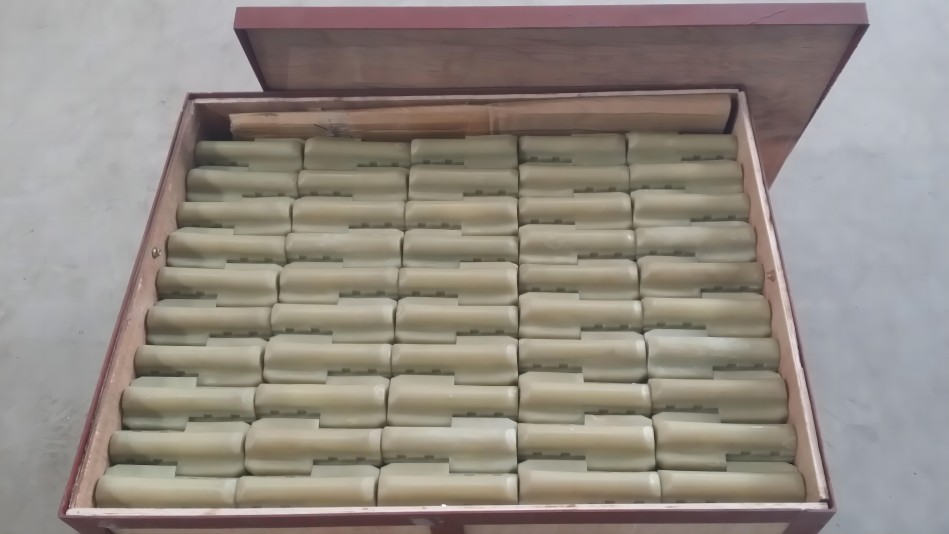

Packaging & Shipping
