5/8" 3/4" 1" sucker Rod Coupling for oilfield1
3 year ago

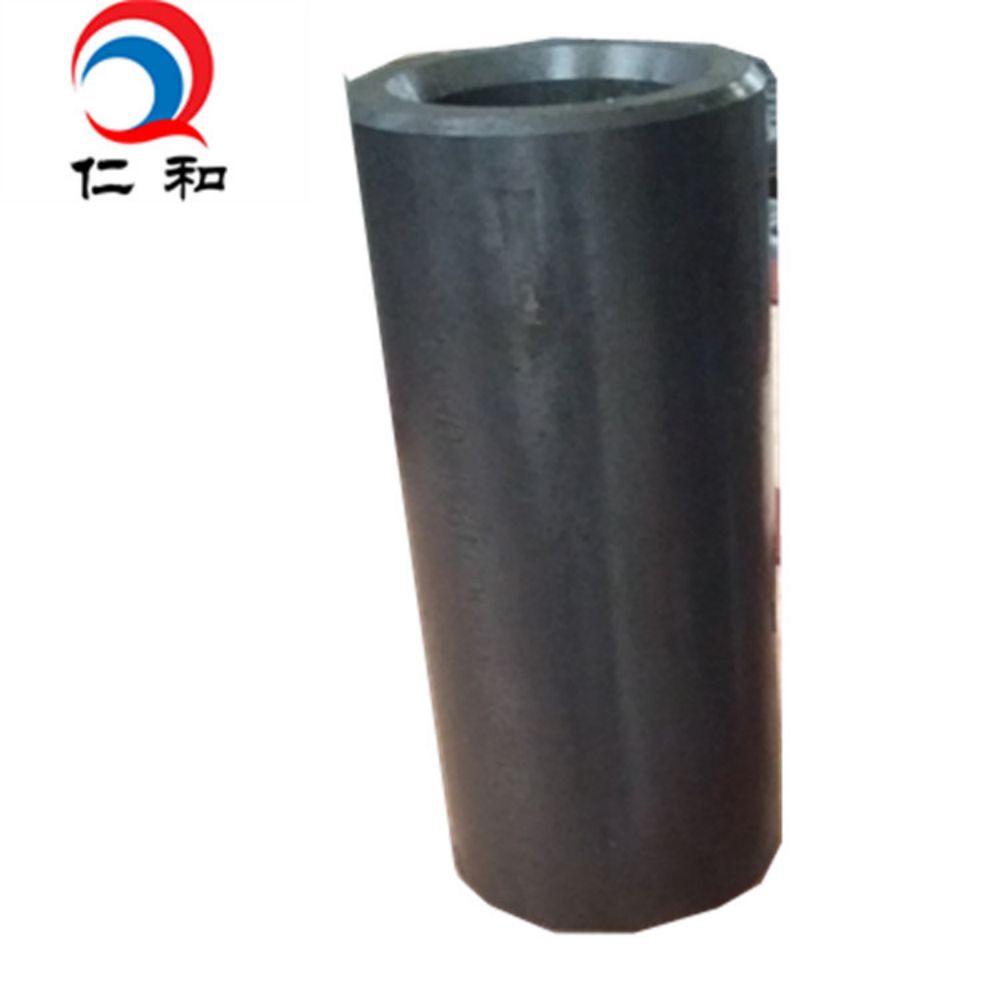

5/8" 3/4" 1"Sucker Rod Coupling for oilfield
Introduction
Sucker rod coupling is one of our flagship products. One sucker rod coupling must
be processed by a few fabrication procedures, such as, Blanking, drilling hole, boring hole, milling, thread tapping, and so on. At the last step, do the surface treatment.
The surface treatment includes black coating, phosphating or per the customers' requirments. Besides, it has good anticorrosion and anti-friction property. The following table shows the related information about the sucker rod coupling.
Specifications of Sucker Rod Coupling
|
Type |
Model |
OD mm |
Width of Wrench Square mm
|
Length of Wrench mm |
Rounding chamfer θ |
|
T Grade Coupling |
5/8 |
Φ38.1+0.13 -0.25 |
34.9 0 -0.8 |
31.8+0.62 0 |
45° |
|
3/4 |
Φ41.3+0.13 -0.25 |
38.1 0 -0.8 |
31.8+0.62 0 |
||
|
7/8 |
Φ46.0+0.13 -0.25 |
41.3 0 -0.8 |
31.8+0.62 0 |
||
|
1 |
Φ55.6+0.13 -0.25 |
47.6 0 -0.8 |
38.1+0.62 0 |
Mechanical Property
|
Grade |
Material |
Yield Point MPa |
Tensile strength MPa |
Extension Radio % |
Reduction of cross-section % |
Izod Impact toughness J |
|
D |
High Quality Alloy Steel |
≥620 |
793~965 |
≥10 |
≥50 |
≥60.8 |
We also provide Sub-coupling: 5/8-3/4 T(SM), 3/4-7/8T(SM), 7/8-1T(SM),
1-1 1/8 T(SM)
Please be free to cotactact us and we
look forward to cooperating with you!
