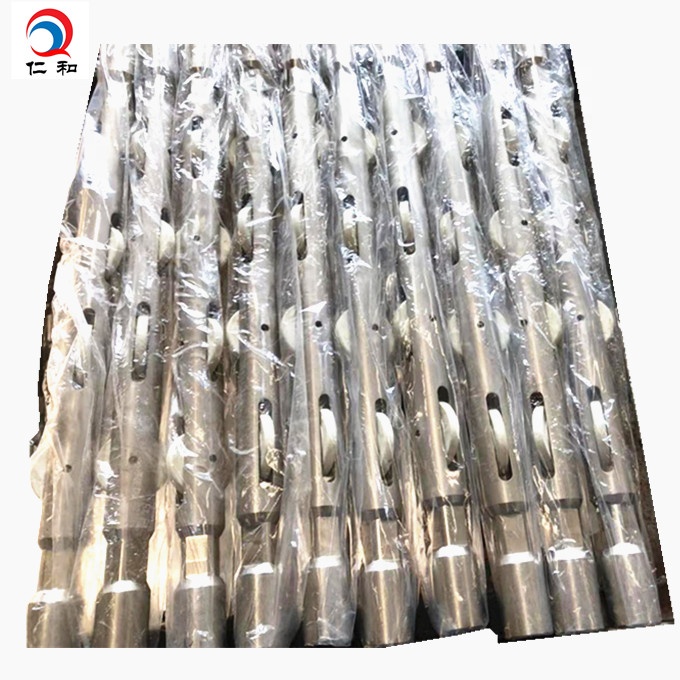

API11B Factory price Oilfield Wheeled Roller Guides for sucker rod
| NO | PART NO | NAME | QTY | MATERIAL |
| 1 | RG-01 | Wheel | 4 | Glass-fiber Reinforced Nylon 6 |
| 2 | RG-02 | Roll pin | 4 | Stainless steel |
| 3 | RG-03 | Coupling body | 1 | 35CrMo |
(1 ) Temperature Caution
Standard models are for applications in wellbore temperature up to 175°F. (fitted with glass-fiber reinforced nylon 6 wheels), For service in higher temperature, Special metal wheels are used.
|
APPLICATION |
DIMENSIONS(INCH) |
||
|
Diameter |
Length |
Length of the groove |
|
|
5/8”ROD/2-3/8”TUBING |
1.50 |
27 |
1.80 |
|
3/4ROD/2-3/8”TUBING |
1.50 |
27 |
1.80 |
|
5/8”ROD/2-7/8”TUBING |
1.50 |
27 |
2.25 |
|
3/4”ROD/2-7/8”TUBING |
1.50 |
27 |
2.28 |
|
7/8”ROD/2-7/8”TUBING |
1.625 |
27 |
2.28 |
|
1”ROD/2-7/8”TUBING |
2.0 |
29 |
2.28 |
|
3/4”ROD/3-1/2”TUBING |
1.50 |
31 |
2.75 |
|
7/8”ROD/3-12”TUBING |
1.625 |
31 |
2.75 |
|
1””ROD/3-1/2”TUBING |
2.0 |
31 |
2.75 |
MATERIALS OF GONETRUCTION
Guide/Coupling Body
Standard guide/coupling bodies are machined from cold rolled steel.
Special Material
Other metals such as steel are available on Special 'order to meet some
specifications for extra strength and/or corrosion resistance,
Wheel and Roll Pins
Wheels are set on stainless Steel journals and roll pine, Standard wheels, for applications up to 175°F are made of glass-fiber reinforced nylon 6.
