Product details

Korea brand sealant pump for silicone rubber sealant

Main feature

1. The machine's curing agent system is completely closed to prevent the agent from being exposed to the air and solidifying.

2. The main components of the pneumatic glue machine (including A, B component glue pump, glue gun and safety valve) are imported from South Korea or heat-treated with high-strength high-quality stainless steel. The reliability and durability of the machine are greatly improved. improve.

3. Ensure the flow stability of the glue and improve the mixing effect. The system is also equipped with a pipeline overload protection device to make it safer to operate.

4. The high pressure valves of the A, B component pumps and proportional pumps are made of ground special alloy.

5. Special and convenient mixing device to ensure high-precision mixing performance.

6. It adopts the internationally-used fixed reciprocating mixer with specially designed needle valve for excellent mixing effect. The dispensing nozzle is made of elastic special material, and the production of the insulating glass is more convenient and simple and generous.

7. The imported glue gun has reliable sealing performance.

8. The machine can be used to apply two-component polysulfide or silicone glue.

Main technical parameter

Mix rate	6:1~14:1 changeable
Max. amount of extruded glue	4L/min
Pump A platen diameter	50 gallon(190L) φ570mm
Pump B platen diameter	5 gallon (20L) φ280mm
Max. air consumption	0.8 CBM/min
Max. extruding pressure	19Mpa
Air pressure admission	0.5~0.8Mpa
Overall dimensions	1100 x 950 x 1630mm

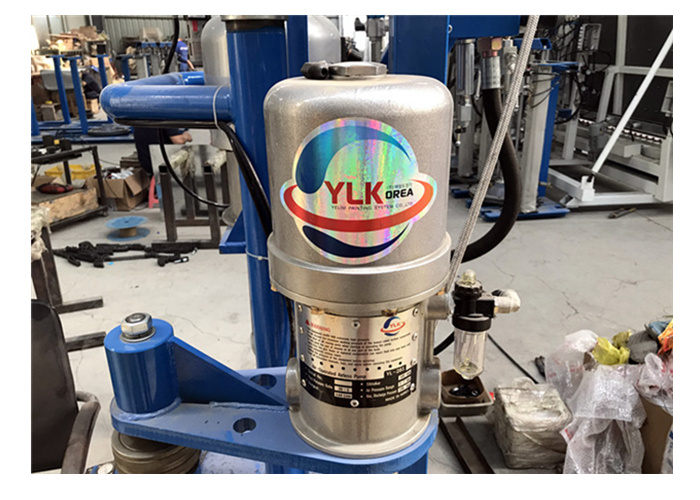

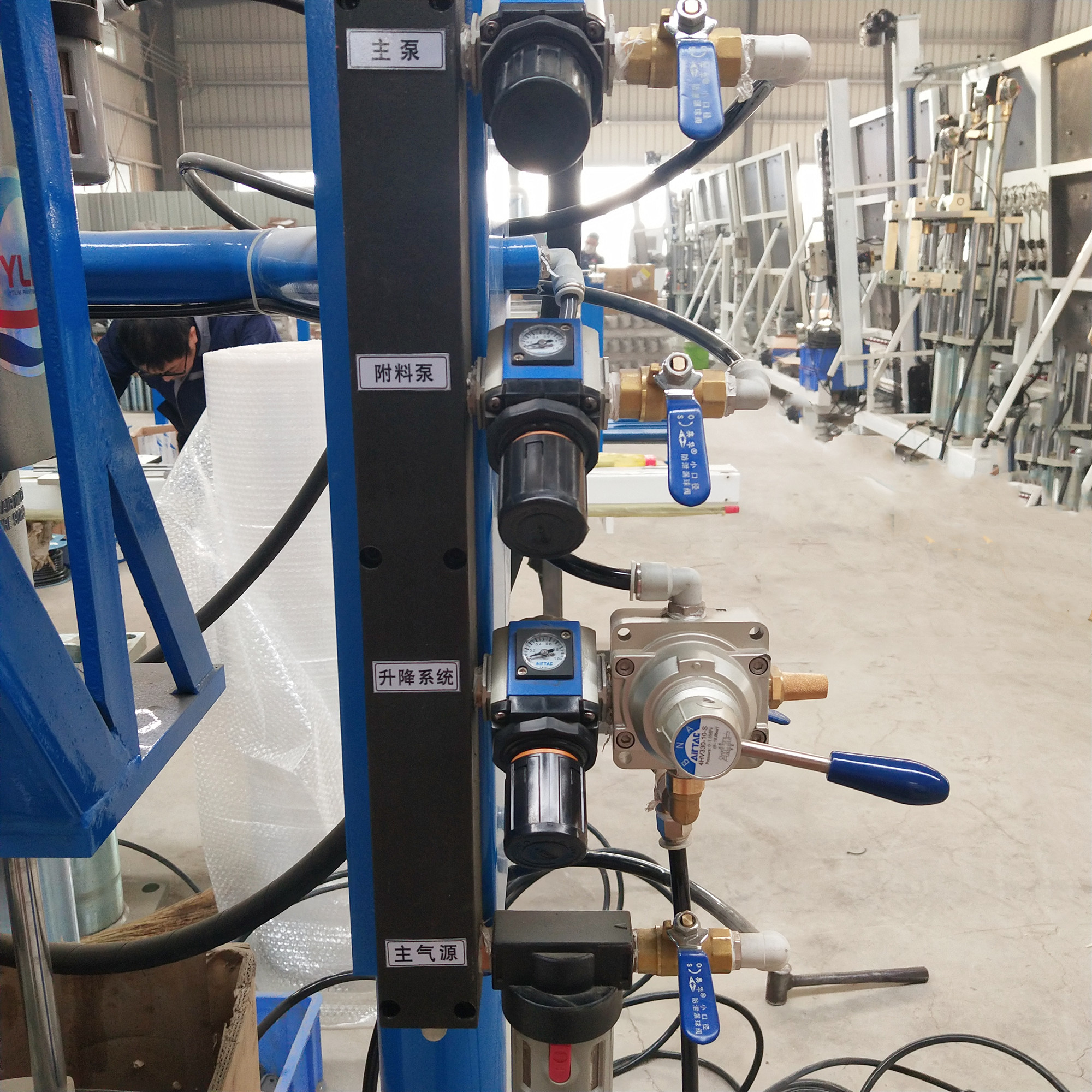

Detail Photos

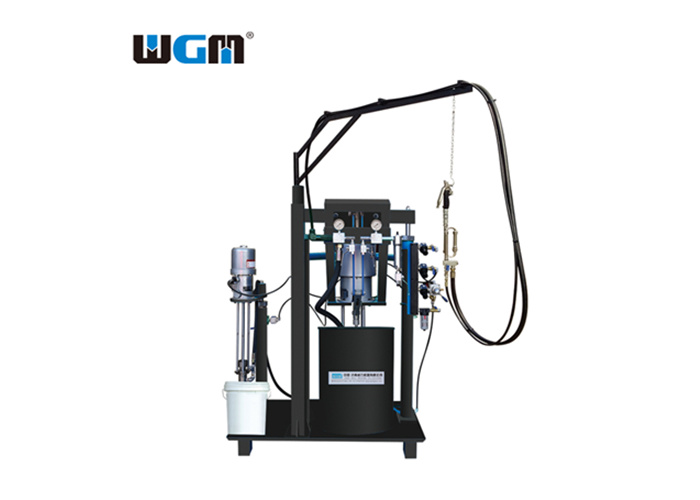

Silicone Extruder

Our related products:

Insulating Glass Machine

Double Glazing Machine

Auto Sealant Sealing Robot

Glass Washing Machine

CNC Vertical Glass Drilling and Milling Machine

Vertical Auto Gas Filling Production Line
