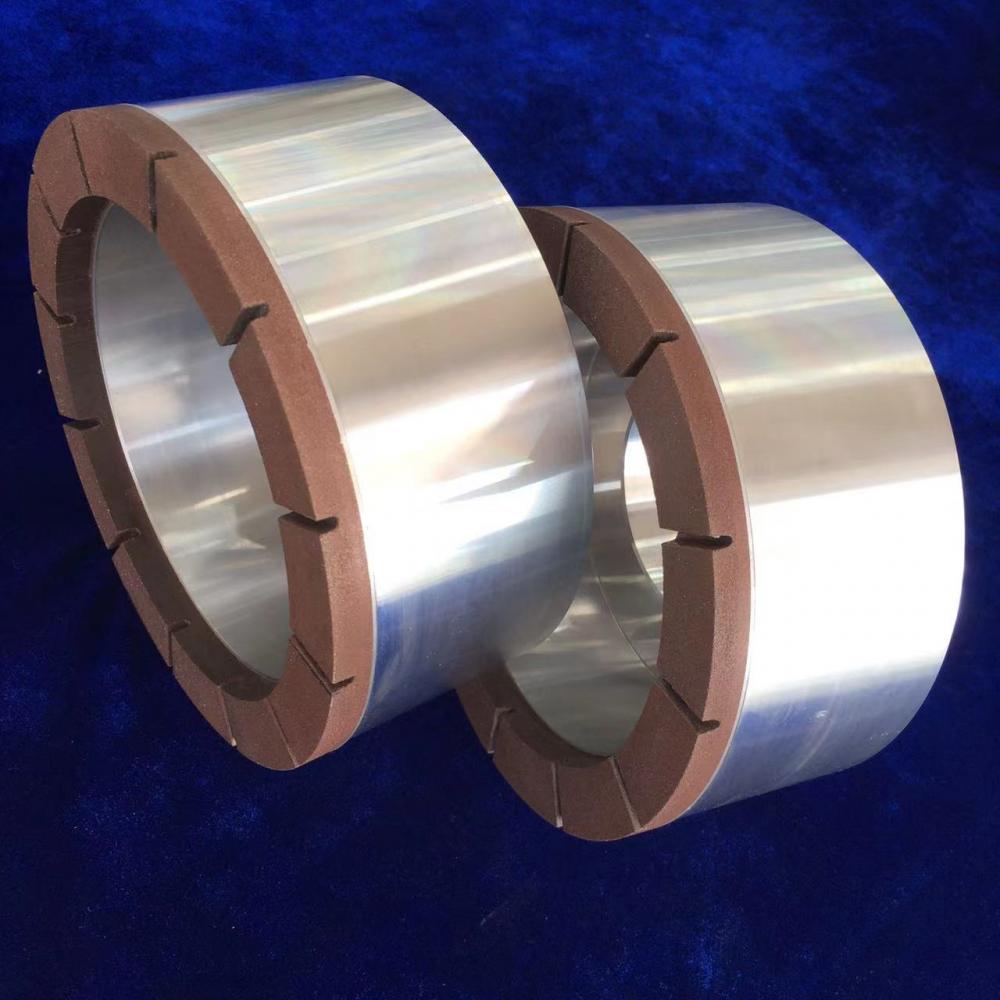

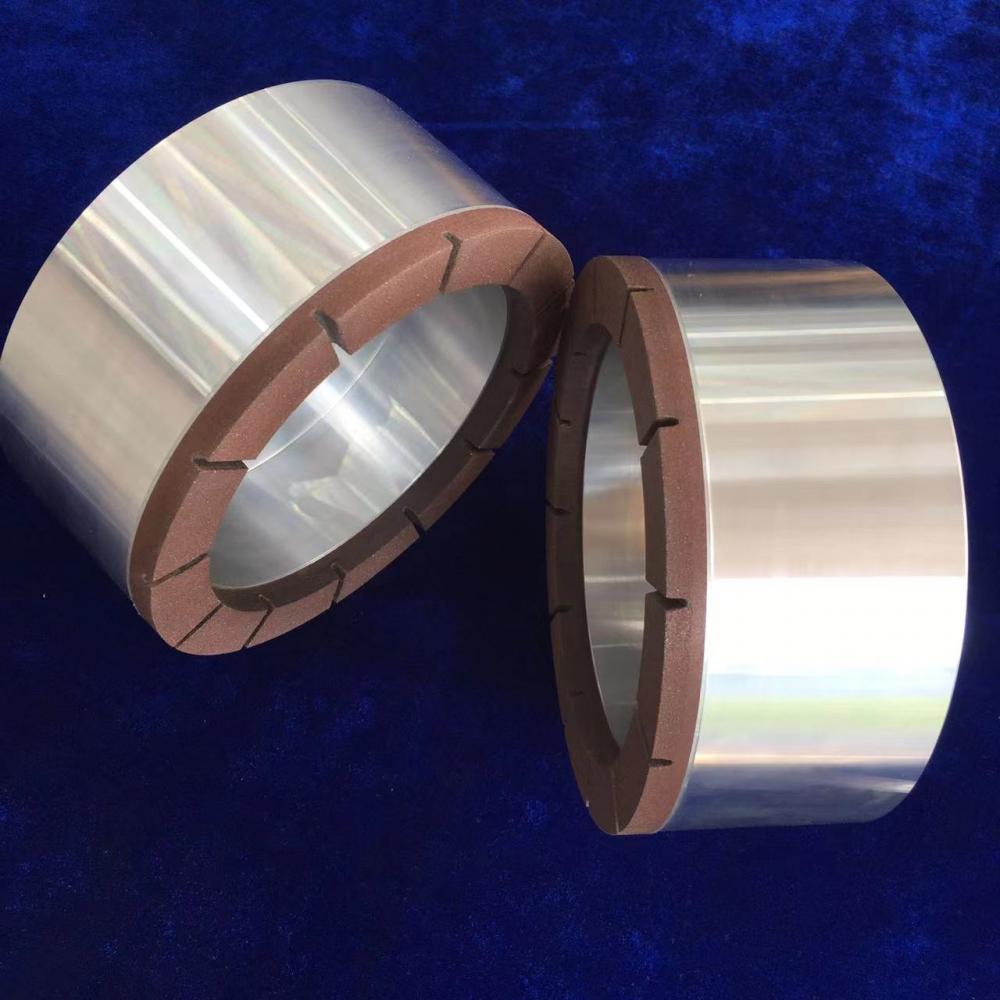

Resin Bond Diamond Bowl Grinding Wheel

Diamond grinding wheel is made of three parts, abrasive grain is uniform, so it has high grinding precision.Good roughness, less abrasive consumption and durable for use.Resin bond synthetic diamond cup grinding wheel is mainly used for surface grinding and external grinding.It is widely used in low-iron content metal and non-metal hard and brittle materials, such as hard alloy, high-aluminum porcelain, optical glass, agate gemstone, semiconductor material, stone, etc., which are difficult to process with ordinary abrasive tools.

Kemei produces all types of super abrasives grinding wheels, such as diamond grinding wheels, CBN grinding wheels, bench grinding wheel, knife grinding wheels. For any need in grinding, contact us.

Technical Parameters:

Product Name: Diamond Cup Grinding Wheel
Material: Diamond, Aluminum Alloy, Resin
Outside diameter:100mm/4 Inch
Overall depth:50mm/2 Inch
Inside diameter:31.75mm/1.25 Inch
Granularity:140/170 Grits
Type:cup shape, bowl shape

All size and grits can be cutomized, please contact us for more.
