MODEL:GC-B01

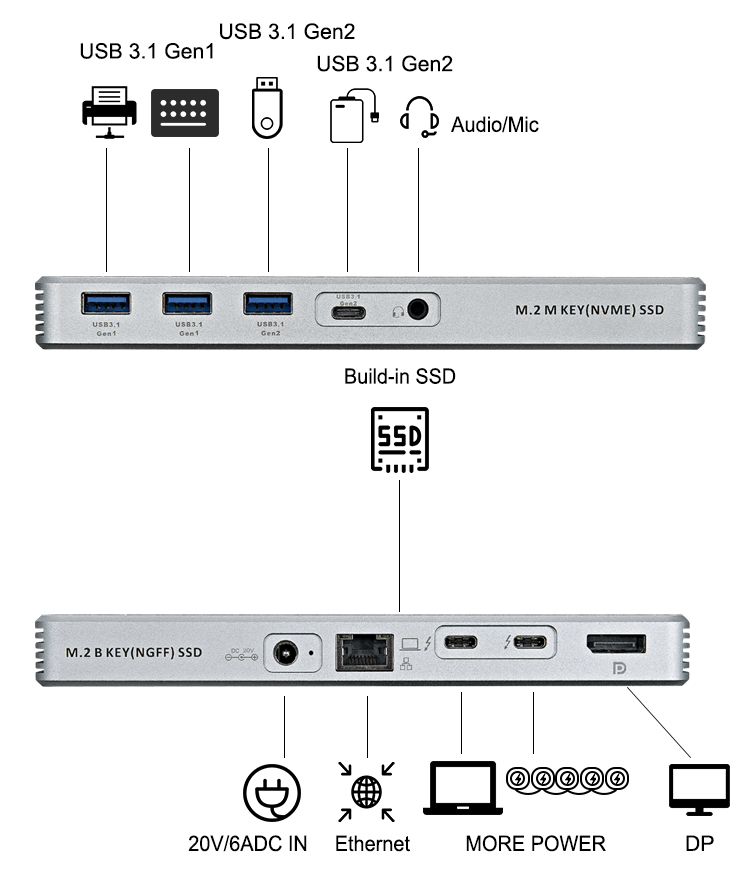

Interface
| A. | Thunderbolt 3 40Gbps x 2 |
| B. | Display Port 1.4 x 1 |
| C. |
USB3.1 Gen 2 10Gbps Type A x 1 |
| D. | USB3.1 Gen 1 5Gbps Type A x 2 |
| E. | USB3.1 Gen 2 10Gbps Type C x 1 |
| F. | 10/100/1000M Ethernet x 1 |
| G. | Headset/MIC Combo Jack x 1 |
| H. |
20V/6A DC IN x 1 |
Features
A. Intel Titan Ridge Universal docksupport both Thunderbolt Host and MFDP host PC
or Notebook.(Intel Alpine Ridge is old version, only support Thunderbolt3 host PC
or Notebook)

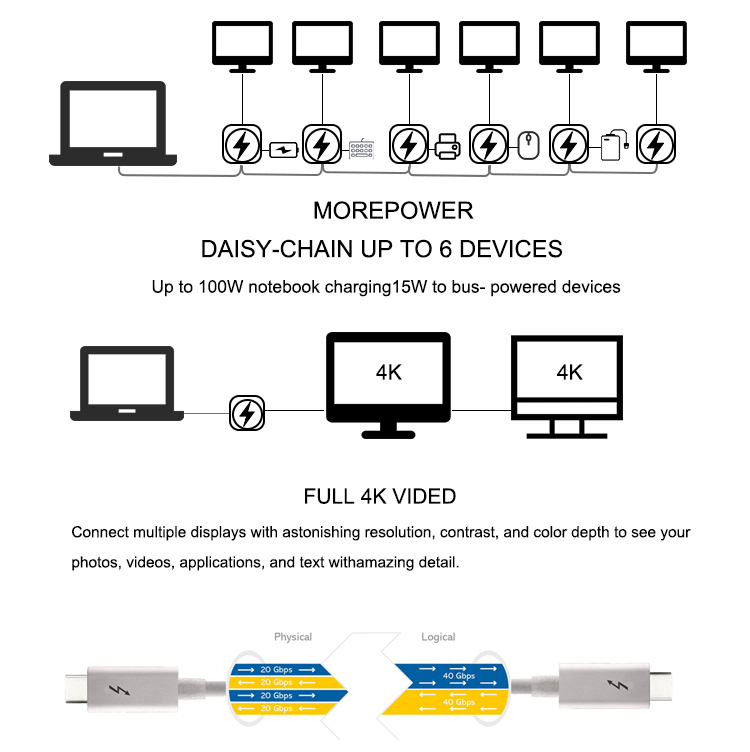

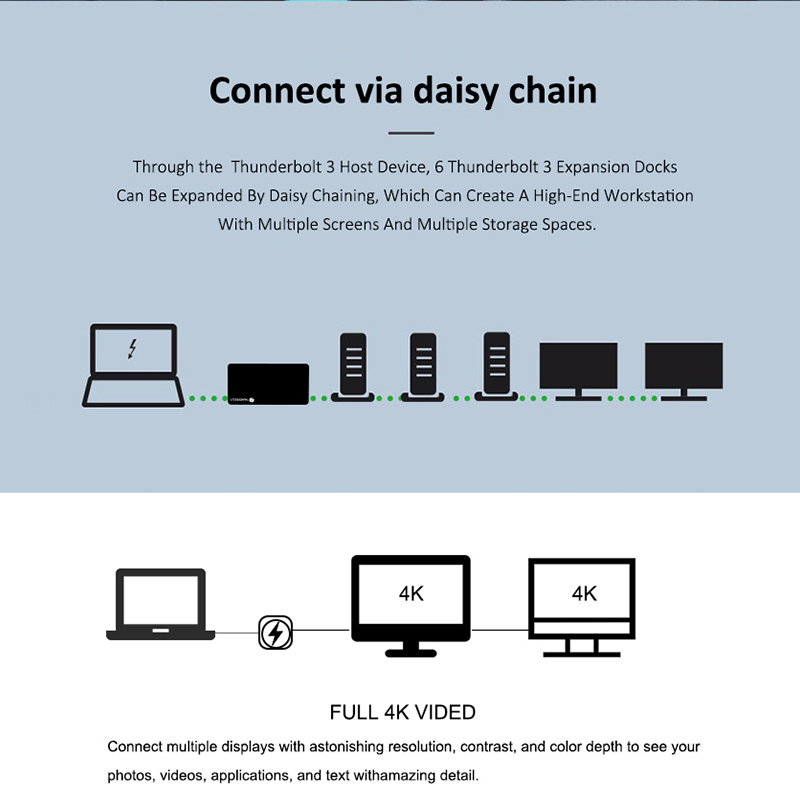

B. Supports 2x thunderbolt3 40Gbps and Thunderbolt3 daisy chain.
C. Supports single 8K60Hz(7680x4320),5K60Hz (5120x2880) UHD or dual
4K 60Hz display output.
D. Thunderbolt Port A support PD 60W charging(5V/9V/15V/20V 3A).
E. Thunderbolt Port B support PD 15W charging(5V3A);Supporting 40Gbps/S High Speed Data Transmission.
F. USB3.1 Gen 2 Type A supports 1000MB/S and 5V1.5A.
G. USB3.1 Gen 1 Type A supports 500MB/S and 5V1.5A.
H. USB3.1 Gen 2 Type C supports 1000MB/S and 5V3A.
I. Supporting built-in M.2 B KEY( NGFF) protocol with maximum 2T SSD hard disk 6Gbps/S
J. Supporting built-in M.2 M KEY(NVME) protocol with maximum 2T SSD hard disk 10Gbps/S
