FRP vinyl ester gelcoat resin for mould

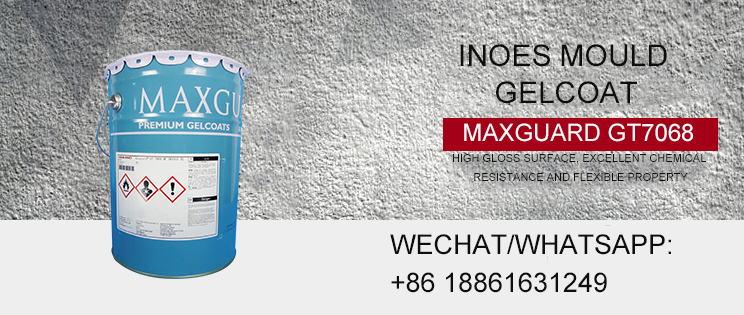

MAXGUARD GT 7068 is a commonly used fiberglass vinyl ester gelcoat resin for moulds. The GT 7068 S/H is an orange-red color with an H type for hand brushing and an S type for spraying. The base resin of GT mold gelcoat is epoxy modified vinyl ester resin. Special matrix resin and unique formula design make the final mold surface high brightness, chemical resistance and flexibility. The MAXGUARD GT resin includes a unique vinyl technology that allows the vinyl mold gelcoat to use standard methyl ethyl ketone peroxide without bubbling, greatly reducing the risk of pinholes in the mold gelcoat. The thermal deformation temperature of up to 110°C can withstand high product heat release without damage.
MAXGUARD GT 7068 vinyl ester gelcoat resin application
The MAXGUARD GT 7068 Gelcoat resin is suitable for high quality FRP moulds. Combined with Ashland's special mold resin Arotool 2001, we can produce high temperature and high strength molds.
MAXGUARD GT 7068 vinyl ester gelcoat resin application method
The MAXGUARD GT 7068 gelcoat should be stored away from light for a maximum of 3 months at temperatures below 25 ° C. Please stir the gelcoat resin thoroughly before use to avoid bubbles. The workshop, materials and moulds shall be kept at a temperature of 18-25℃ and relative humidity below 70%.
The dosage of MEKP(methyl ethyl ketone peroxide) catalyst is 1.5-2.5%, and the application thickness of gelcoat resin is controlled to 800-1000um according to the final use. See "Precautions for Using Vinyl Mold Gelcoat".
|
ITEMS |
NAME AND MODEL |
CHARACTERISTICS AND APPLICATIONS |
|
GELCOAT |
MAXGUARDTM GN XXXXX S ISO-NPG gelcoat |
Premium gelcoat, excellent UV resistance and hydrolysis resistance. It complies with Lloyds and D.N.V rules for construction of small crafts. |
|
MAXGUARDTM GX XXXXX S gelcoat |
Recommended for boat construction (shells and decks), excellent shock resistant, very good hydrolysis and UV resistance. |
|
|
ENGUARDTM GE XXXXXX S/H ISO gelcoat |
Good UV and hydrolysis resistance and complies with Lloyds rules for construction of small crafts. |
|
|
MAXGUARDTM GN XXXXX S Pearlescent Gelcoat |
ISO-NPG base, pearlescent. |
|
| RESIN |
AROPOLTM M105 Low Styrene Emission Resin |
Low emission, excellent wettability, reliable with long case history and complies with Lloyds and D.N.V rules for construction of small crafts. |
|
AROPOLTM G105-60RT Infusion Resin |
General purpose infusion resin.It complies with Lloyds and D.N.V rules for construction of small crafts. |
|
|
AROPOLTM F207 TPB Fire Retatdant Resin |
Non-filled fire retardant resin, complies with Llpyds rules for construction of small crafts and D.N.V rules for lifeboats. |
|
|
AROPOLTM K530TB Iso Resin |
Isophthalic, complies with Llyods rules for construction of small crafts and D.N.V rules for lifeboats. |
|
|
AME TM 5500 Modified Epoxy Vinyl Ester Resin |
High performance, low VOC, low shrinkage, excellent surface profile, excellent blister resistance, designed as high premium skin-coat resin for high performance boats. |
|
| BONDING PASTE |
NGUARDTM TH72 |
All around bonding paste assembling of parts . |
|
ENGUARDTM TH75 |
Thixotropic bonding paste containing fibers and catalyst indicator, good mechanical strength. |
