Input / Output (I/O) Modules

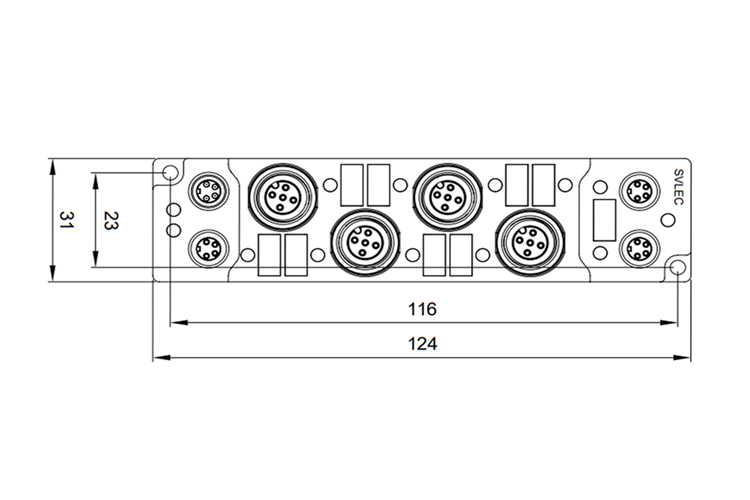

Sensor and Actuator of the compact I/O module can be connected with two types of connectors, M8 connector and M12 connector.

Advantages of the compact I/O modules:

1. Strong and durable

The structure is solid, and the fieldbus terminal box can be installed directly on the machine, so there is no need for a control cabinet and Distribution System.

2. Good sealing

It is all made of resin pouring, and the protection level is IP67. It is an ideal choice for harsh environments such as damp, dirty, and dusty.

3. Little Joe

The very small form factor makes them ideal for installation where there is little room left.

4. Fast wiring

Using pre-assembled cables, the wiring between the I/O terminal box and the signal becomes very simple, minimizing wiring errors and speeding up the system installation process.

5. High flexibility

In addition to pre-assembled cables, Field Wireable Connector and cables are also available for maximum installation flexibility.

6. Economy

Various hybrid I/O boxes and fine grain in signal processing reduce system cost. You only need to buy what you really need. Since the number of channels per io box is doubled, the 16-channel series also saves a lot of time and money on fieldbus wiring and power wiring.

7. Complete range of products

Due to the wide range of signal types that can be handled by the terminal boxes offered by SVLEC, it is possible to connect almost all types of sensors and actuators.

8. Install in place

Sensor and actuator mechanisms can use screw (M8 or M12) connections. Screw-type connectors have the advantage of high pull-out resistance.

9. Suitable for extreme climate conditions

Most I/O terminal boxes can be used in a wide temperature range of -25°C to +60°C (storage temperature is -40°C to +85°C).
