M12 male A-code connector
3 year ago

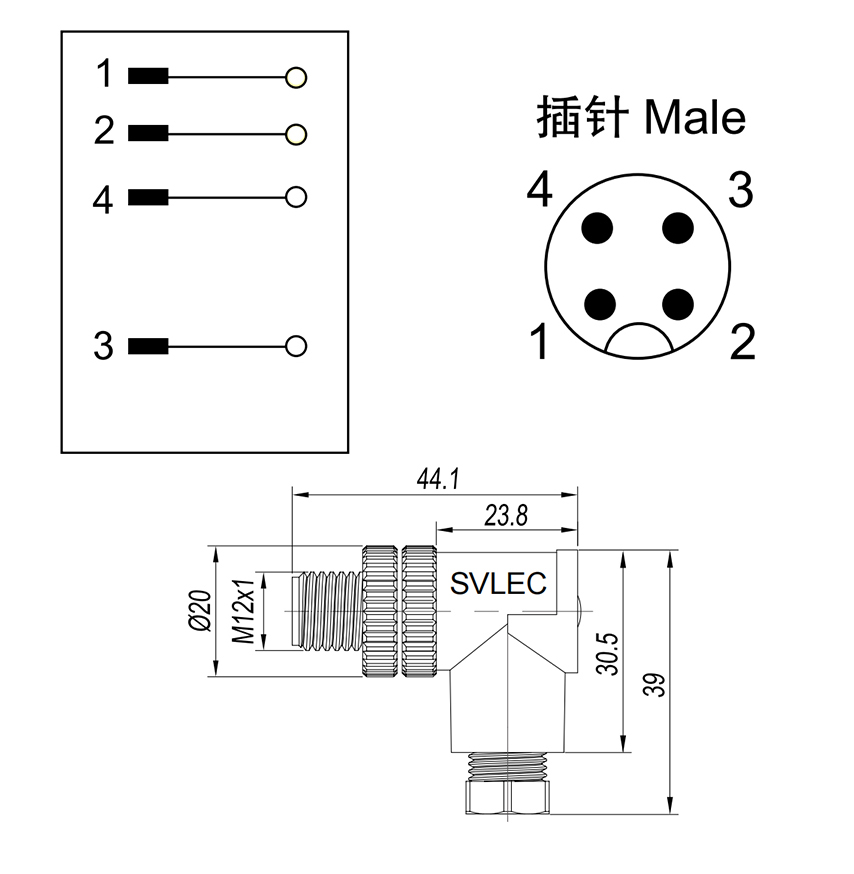

Field-wireable M12 Round Plug A-Code Connector
The M12 connector is made of M12 thread according to the IEC standard. The Right Angle Connector material is nickel-plated brass. The shell is made of IP67 PA66 reinforced nylon, and the tail is equipped with a locking seal. After locking, the protection can reach IP67, the applicable cable diameter is 4...6mm, the M12 Connector pin material is brass gold-plated, and the installation wiring is screw crimping, which is convenient and quick
| Name: |
M12 Round Plug A-Code Connector |
| Pin out: | 4-Pole |
| Gender: | Male |
| Supply voltage: | 250V AC/DC |
| Current per contact: | max. 4A |
| Connection diameter: | max. 0.75mm2 |
| Protection: | IP67 |
| Temperature: | -25...+85℃ |
| Housing material: | Flame retardant plastic |
| Cable outlet diameter: | 4...6mm |
