Intelligent pressure transmitter
2 month ago
Our main products are: Electromagnetic flowmeter, Energy meter, Vortex flowmeter, Pressure transmitters, Level gauge, Magnetic flap level gauge.
Typical application:
Food, beverage, medicine and health, papermaking and other health industry fields

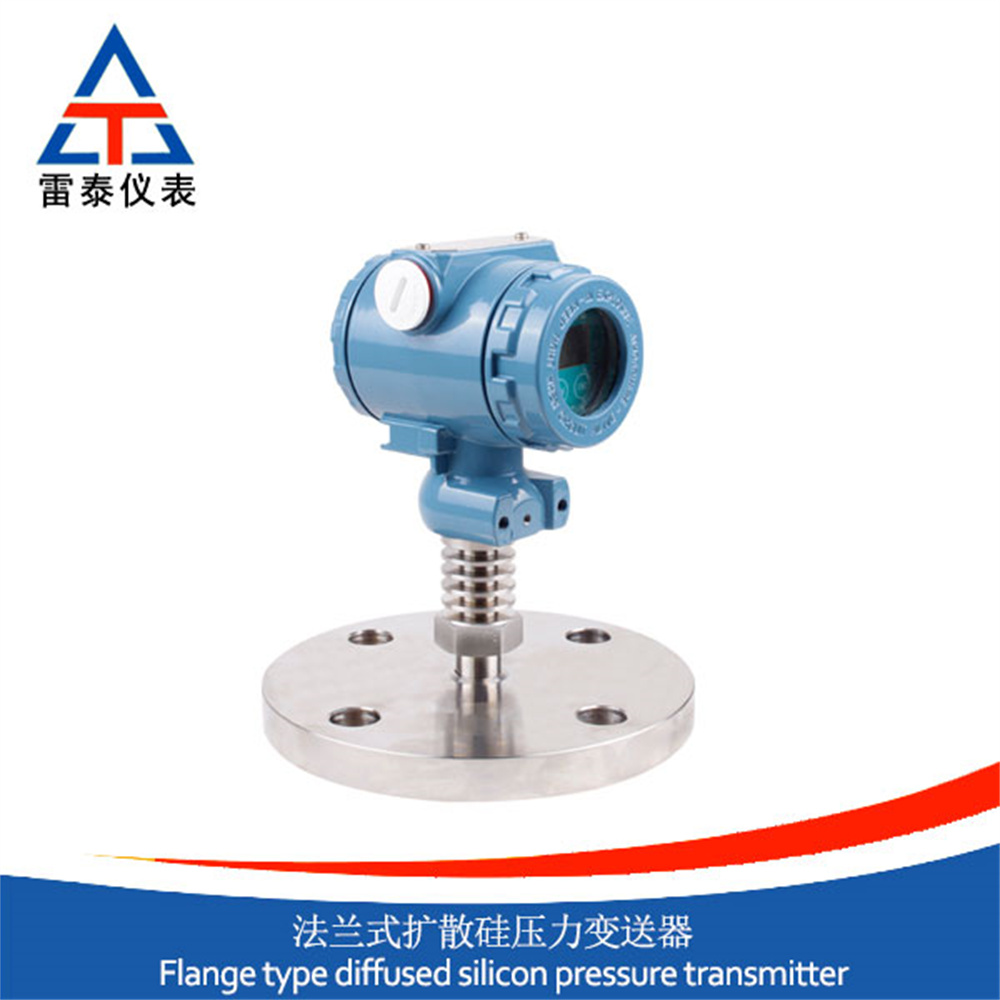

Technical performance of diffused silicon pressure transmitter:
Clean flat isolation diaphragm, in line with international 3A health standards
Using ceramic capacitive pressure sensor or diffused silicon pressure sensor
Measuring range: 0-4KPa~35MPa
Power supply: 15-36VDC
Temperature drift: 0.02%FS/°C
Accuracy:0.25%
Shell protection: IP65
Electrical connection: cable type\Horsman connector\2088 shell\waterproof box type optional
Temperature: Electronic circuit board works at -40~85℃; sensitive components work at -40~104℃; storage temperature -40~85℃; with digital display -25~65℃ (normal operation); -40~85℃ ( no damage);
Relative humidity: 0～95%
Stability: *±0.25% of large range/6 months
Vibration influence: in any axis direction, the frequency is 200Hz, the error is ±0.05%/g of the maximum range
Load influence: As long as the input voltage of the transmitter is higher than 12V, there is no load influence in the load working area.
Influence of installation position: The maximum zero position error may be no more than 0.25kPa. This error can be eliminated through correction and has no effect on the measuring range; the rotation of the measuring body relative to the flange has no effect.
Diffused silicon pressure transmitter description:
1) If the measured pressure is overloaded, please provide the overload pressure value.
2) If the temperature of the measured medium continues to be as high as 130°C or lower than -20°C, it is recommended to use a temperature isolator or capillary structure to ensure that the sensor is not damaged.
