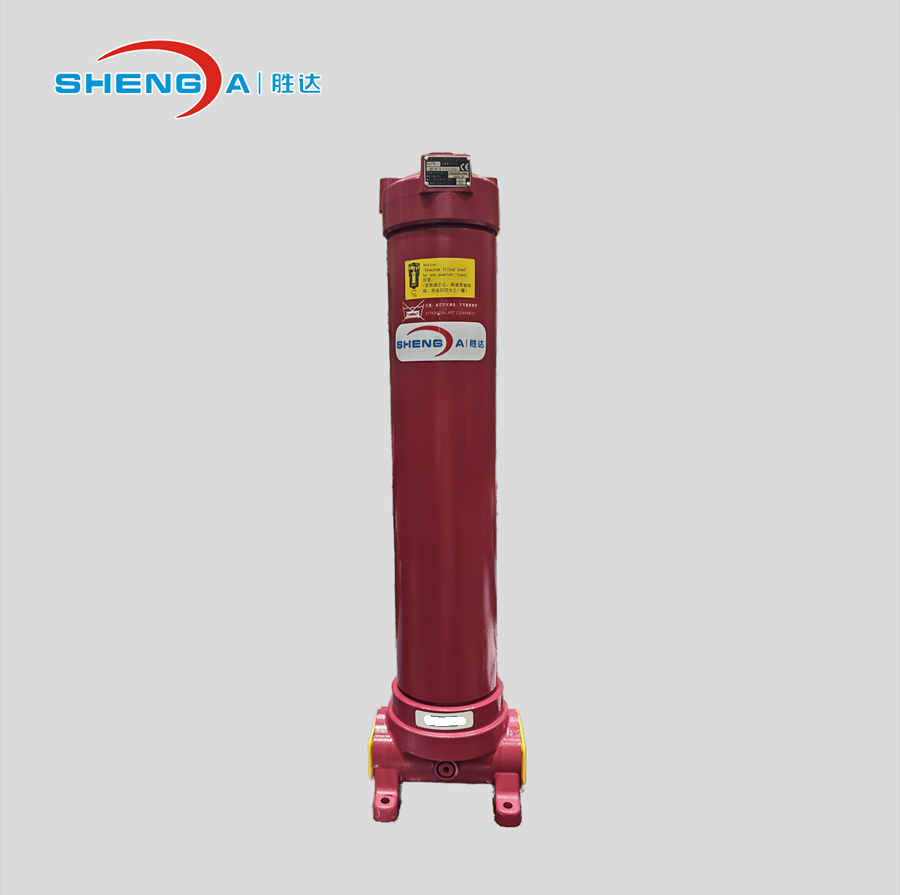

INLINE FILTER SDNF BNHC 750 DK 05 D 2.0-L24

4 week ago

0 0 

Xinxiang Shengda Filtration Technique Co., Ltd.

7 year

Product details

I. Overview

The core filtration element employs a multi-layer composite structure, effectively intercepting tiny particles, impurities, and contaminants, thus protecting the system from wear and clogging risks. Equipped with a pressure indicator and bypass valve, this filter facilitates real-time monitoring of the filtration status and ensures system safety.

Additionally, its robust and durable casing and sealing design cater to various harsh operating environments, extending service life and reducing maintenance costs. Widely used in engineering machinery, metallurgy, chemicals, and other fields, it is an ideal choice for enhancing hydraulic system performance and reliability.

II. Technical Features

High Filtration Efficiency: Equipped with precision filtration media, it effectively removes tiny particles, metal debris, moisture, and other contaminants from fluids, meeting stringent cleanliness requirements.

Large Capacity Design: With an optimized internal structure and larger filtration area, it offers exceptional dirt-holding capacity, reducing replacement frequency and maintenance costs.

Differential Pressure Indicator (Optional): Integrated differential pressure monitoring function visually indicates the degree of filter clogging, facilitating timely replacement and ensuring continuous and stable system operation.

III. Technical Specification

1. Filter Housing

Structure

The inline filter consists of a filter housing and a removable upper end cap.

2. Filter Element

Filter elements are available with the following pressure stability values:

Glass fiber (BN/HC): 20bar Paper (P/HC): 10bar

Wire Mesh (W/HC): 20bar Stainless steel fiber (V): 210bar

Compatibility of filter elements with media

It can be used for mineral oils, non-flame fluids, lubrication oils, rapidly biodegradable hydraulic media. For water or other application, please contact us.

3. General

Mounting: Oil tank-top or inline mounting

Temperature range: -10°C to +100°C

Flowrate: up to 3500L/min

Working Pressure: up to 25bar

Setting pressure for differential pressure clogging indicator: ΔPa=2bar-10% (Others on request)

Bypass cracking pressure: ΔPa=3bar+0.5bar(Others on request)

IV. Application Scope

Our products have been widely used in petrochemical, coal chemical, sewage treatment, nuclear power, agricultural machinery, steel plant, power plant metallurgic plant, paper mill, medicine and other industries.
