YZPST-2CL71S

4 week ago

3 0 

YANGZHOU POSITIONING TECH CO., LTD.

7 year

Product details

P/N: YZPST-2CL71S

SMA Fast Recovery High Voltage Diodes

lIF（AV）： 5mA

VRRM ：8KV

High reliability

Applications

High voltage power supply

Mechanical data

Epoxy meets UL 94V-0 flammability rating

Terminals: P u r e t i n p l a t e d l e a d s

Marking: Type number

Polarity:As Marked on Body

Lead Free: For RoHS /Lead Free Version

Maximum rating (Ta=25oC unless otherwise noted)

Fast Recovery High voltage diodes		Features
		l IF（AV） 5mA l VRRM 8KV l High reliability
		Applications
		High voltage power supply
		Mechanical data
		l Epoxy meets UL 94V-0 flammability rating l Terminals: P u r e t i n p l a t e d l e a d s l Marking: Type number l Polarity:As Marked on Body l Lead Free: For RoHS /Lead Free Version
Maximum rating (Ta=25oC unless otherwise noted)
Parameter		Symbol	71S	Unit
Repetitive peak reverse voltage		VRRM	8	kV
Non-Repetitive peak reverse voltage		VRSM	8.8	kV
Average forward current	AT Ta=25℃	IF(AV)	5	mA
Forward surge current	50HZ half- sine wave ， 1/2 cycle, Ta=25℃	IFSM	0.5	A
Peak forward voltage	IFM=10mA	V FM	20	V
Peak reverse current	VRM=VRRM Ta=25℃	IRRM1	2	µA
Peak reverse current	VRM=VRRM Ta= 100℃	IRRM1	5	µA
Reverse Recovery Time	IF=2mA:IRM=4mA,Ta=25℃	trr	80	nS
Virtual junction temperature		T(vj)	125	°C
Storage temperature		Tstg	-40 ~ +125	°C

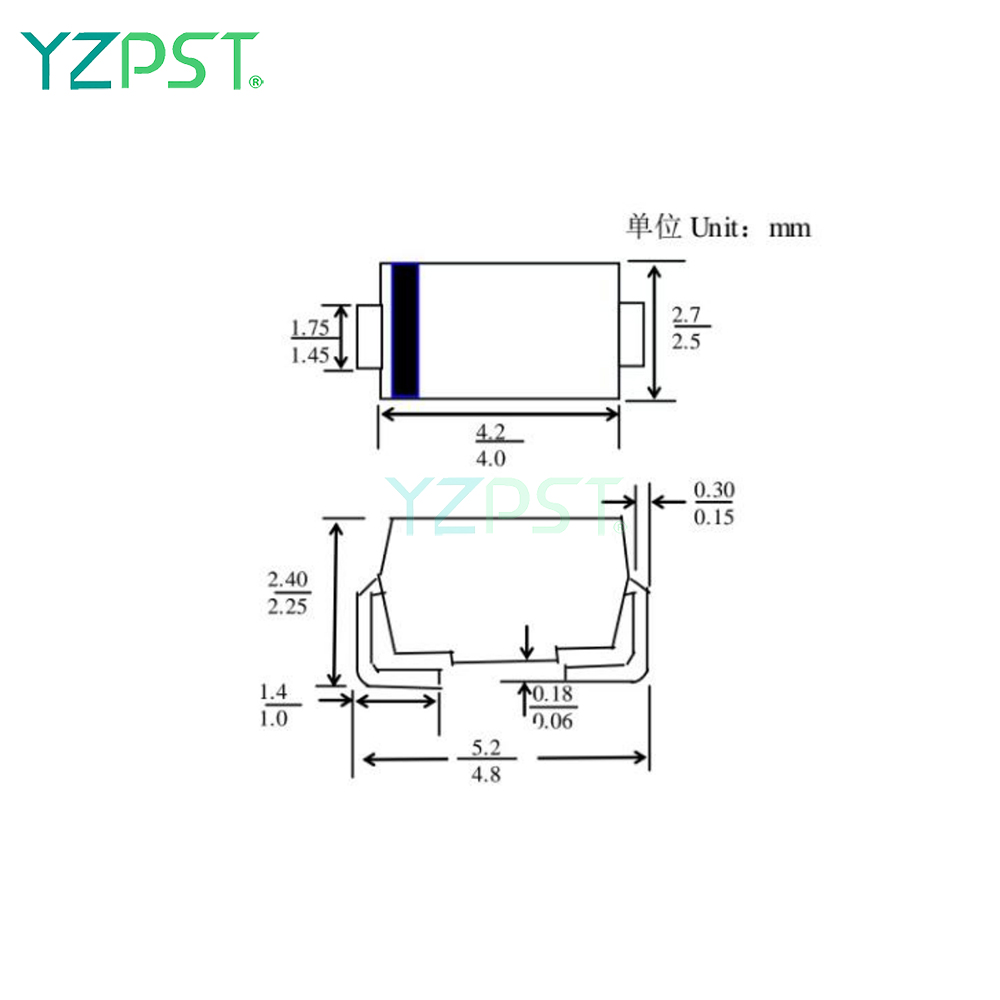

SMA Package outline dimensions
