SDRFLD BNHC 1320 CAM 20 D 1.X-L24

4 week ago

1 0 

Xinxiang Shengda Filtration Technique Co., Ltd.

7 year

Product details

-change-over valve can be ball change-over valve or segment change-over valve

-welded version/ carbon steel

-up to 15000 l/min

-up to 16 bar

1.Technical Specification

1.1 Filter Housing

Construction

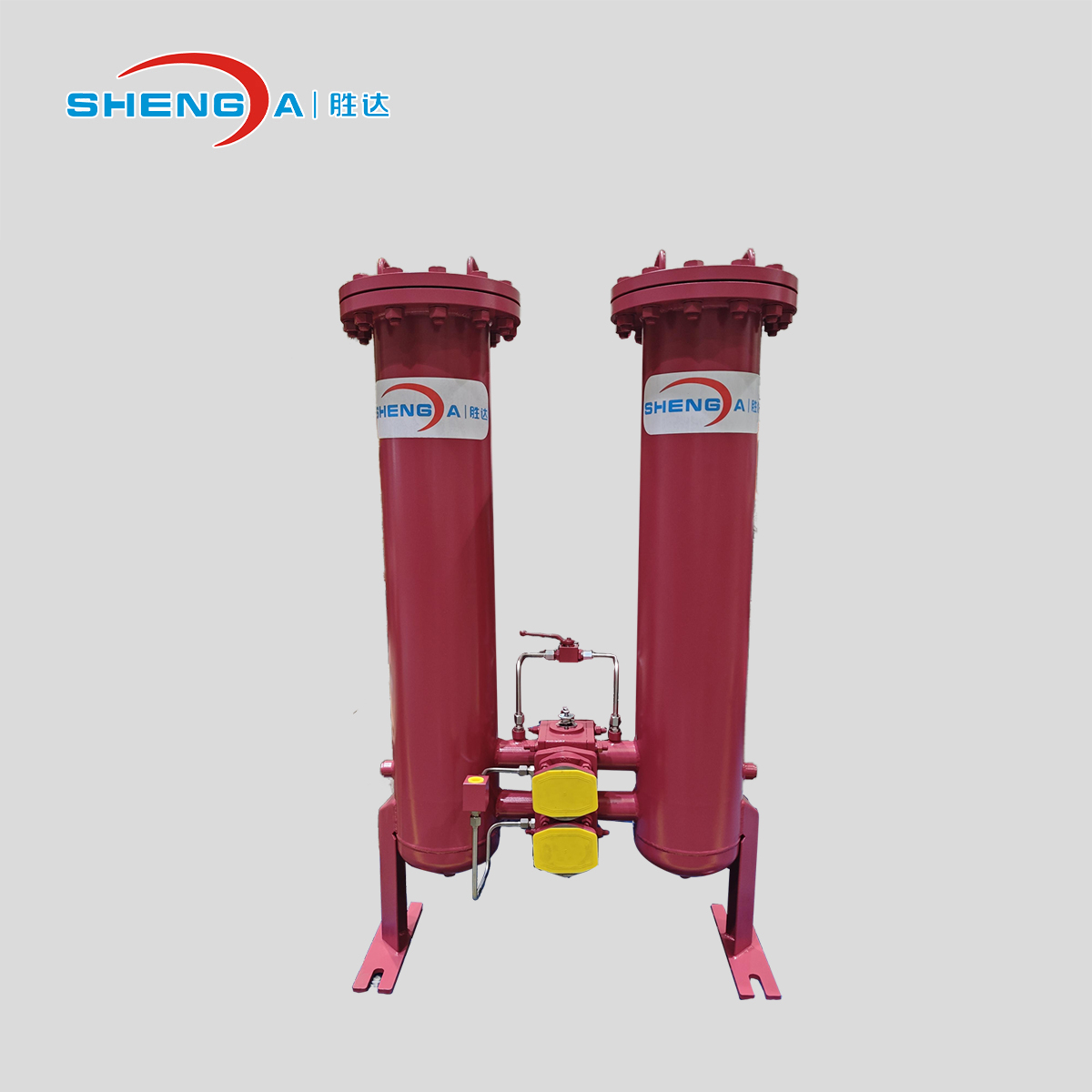

The filter housings are designed in accordance with international regulations. The two sections of the filter housing are connected by means of a ball change-over valve. There are two types, ball change-over valve and segment change-over valve. Pressure equalization line exists between two sections, to decrease pressure impulsion because of change. For standard type, there will be connection for venting, draining and a clogging indicator.

1.2 Filter Element

Filter elements are validated with all ISO standards.

The max allowable pressure drop:

BN/HC: 25 bar Paper(P/HC): 10 bar

Wire mesh(W/HC): 30 bar Stainless steel fiber(V): 30 bar

Compatibility

- mineral oils

- lubrication oils,

-non-flame fluids,

-synthetic and rapidly biodegradable fluids.

2.General

Mounting: Filters must be flexibly mounted and not fixed rigidly to the floor or used as a pipe support.

Flow Inlet: top

Outlet: bottom

Temperature range: -10℃~ 100℃

Setting pressure of clogging indicators

ΔPa=2bar-0.2bar

Bypass cracking pressure

ΔP0=3bar+0.5bar

3.Model

4. Application

The RFLD series filters are suitable for various hydraulic systems, including the filtration of mineral oils, fire-resistant oils, lubricating oils, and other media. They are widely used in sectors such as petroleum, chemicals, liquefied gas, water supply and drainage, food processing, pharmaceuticals, power generation, papermaking, urban construction, mining, boiler steam systems, and municipal utilities.
