200ton shipyard transporter
4 week ago
What is Shipyard transporter？
A Shipyard transporter is a piece of equipment or a tool used to transport a ship. It is typically used to move a ship from one location to another, such as from a shipyard to a seaport or a ship repair yard.A Shipyard transporter is typically powerful and maneuverable, accommodating ships of varying sizes and weights, and capable of maneuvering in confined spaces. It can be powered by hydraulics or other power sources in order to move or lift the vessel smoothly for operations such as maintenance, loading and unloading, or transportation.
Shipyard transporter main specification list
|
Model |
Dead weight (ton) |
Loading capacity (ton) |
Length x width(mm) |
Height (mm) |
Suspension/Axle lines |
Driving axle |
Brake axle |
Speed (empty load) |
Speed (full load) |
Loading capacity per axle(ton) |
|
75A |
24 |
72 |
11000X5000 |
1400+600 |
6/3 |
3 |
3 |
5km/h |
10km/h |
16 |
|
100A |
28 |
100 |
12000X5000 |
1400+600 |
8/4 |
4 |
4 |
5km/h |
10km/h |
16 |
|
125A |
32 |
125 |
14000X5000 |
1400+600 |
10/5 |
4 |
6 |
5km/h |
10km/h |
16 |
|
150A |
36 |
150 |
15800X5000 |
1400+600 |
12/6 |
5 |
6 |
5km/h |
10km/h |
16 |
|
175A |
41 |
175 |
19600X5000 |
1400+600 |
14/7 |
5 |
8 |
5km/h |
10km/h |
16 |
|
200A |
48 |
200 |
22000X5000 |
1400+600 |
16/8 |
6 |
10 |
5km/h |
10km/h |
16 |
|
100B |
24 |
100 |
10000X5100 |
1600+700 |
4/2 |
2 |
2 |
5km/h |
10km/h |
32 |
|
150B |
36 |
150 |
12000X5100 |
1600+700 |
6/3 |
2 |
4 |
5km/h |
10km/h |
32 |
|
200B |
43 |
200 |
14000X5100 |
1600+700 |
8/4 |
3 |
4 |
5km/h |
10km/h |
32 |
|
250B |
52 |
250 |
16000X6100 |
1600+700 |
10/5 |
4 |
6 |
5km/h |
10km/h |
32 |
|
320B |
60 |
320 |
18000X6100 |
1600+700 |
12/6 |
4 |
8 |
5km/h |
10km/h |
32 |
|
380B |
68 |
380 |
20000X6100 |
1600+700 |
14/7 |
5 |
8 |
5km/h |
10km/h |
32 |
|
420B |
85 |
420 |
22000X6100 |
1600+700 |
16/8 |
5 |
10 |
5km/h |
10km/h |
32 |
|
480B |
94 |
480 |
24000X6100 |
1600+700 |
18/9 |
6 |
12 |
5km/h |
10km/h |
32 |
|
530B |
110 |
530 |
26000X6100 |
1600+700 |
20/10 |
6 |
12 |
5km/h |
10km/h |
32 |
|
580B |
124 |
580 |
28000X6100 |
1600+700 |
22/11 |
7 |
14 |
5km/h |
10km/h |
32 |
|
630B |
135 |
630 |
32000X6100 |
1600+700 |
24/12 |
8 |
14 |
5km/h |
10km/h |
32 |
|
680B |
148 |
148 |
34000X6100 |
1600+700 |
26/13 |
8 |
16 |
5km/h |
10km/h |
32 |
|
All of model grade ability is 6%. Width of 100B, 150B and 200B is 5100-6100mm and other dimension needs to be customized. |
||||||||||

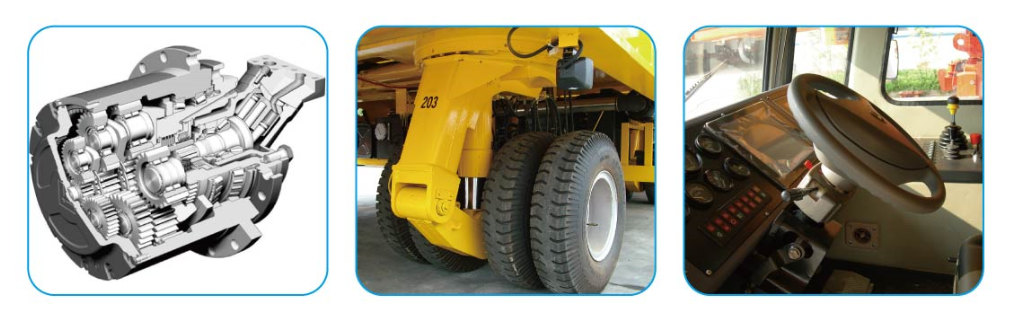

Main parts
The main pars and componets equipped to the shipyard transporter, such as suspension, axle, automatic control system, hydraulic system, are strictly selected and purchased from reliable overseas and domestic reliable brands of mature technology. For example, the automatic system
The main pars and componets equipped to the shipyard transporter, such as suspension, axle, automatic control system, hydraulic system, are strictly selected and purchased from reliable overseas and domestic reliable brands of mature technology. For example, the automatic system adopts complete technology and parts of German Rexroth, avoids problems like bad compatibility caused by non-uniform of different parts and technology and reduces risk in R&D of new products and guarantees the stability and reliability of performance.
|
Itme name |
Brand |
Country |
|
Engine |
Commins / Deuta |
America / Germany |
|
Drive pump |
Rexroth / Sauer |
Germany |
|
Turning and lift pump |
Rexroth / Sauer |
Germany |
|
Retarder |
Recroth / RR |
Germany / Italy |
|
Motor |
Rexroth / Sauer |
Germany |
|
Valve |
Hawe / Rexroth |
Germany |
|
Control system |
Interconcrol / Rexroth |
Germany |
|
Torsional damping aggangement |
KTR |
Germany |
|
Cooler |
AKG |
Germany |
|
Filter |
Argo |
Germany |
|
Tube union |
Eaton |
America |
|
Rubber duct |
Sunflex |
Italy |
|
Oil cylinder |
Hengli |
China |
|
Slew axletree |
FLT |
China |
