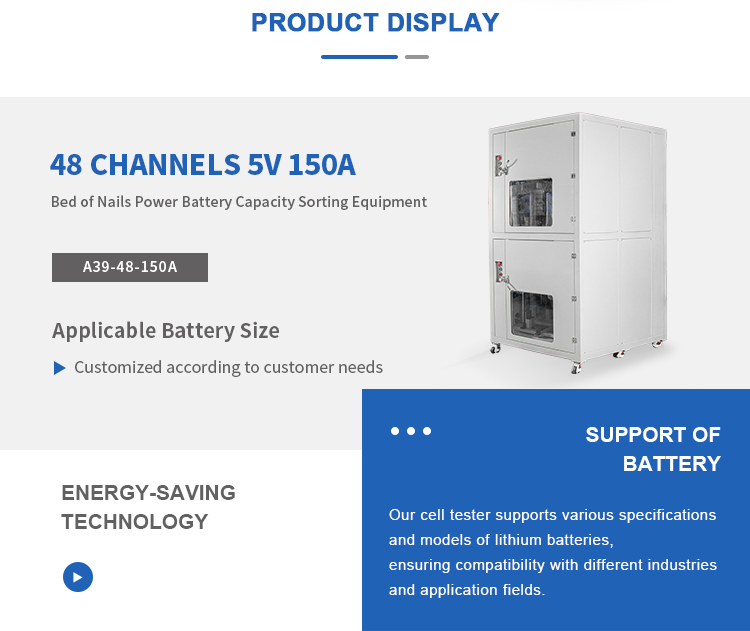

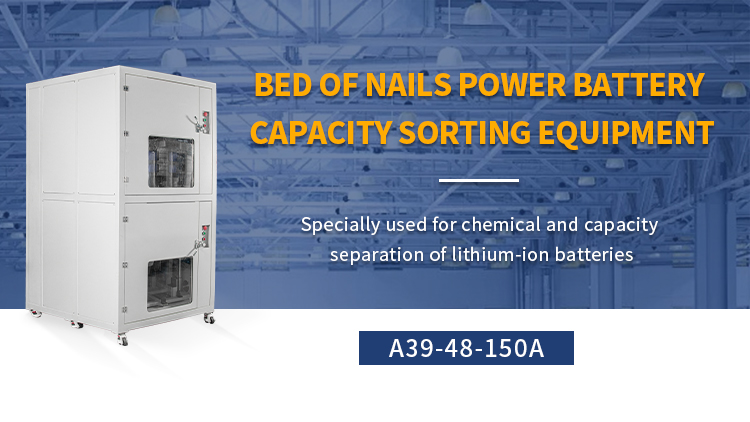

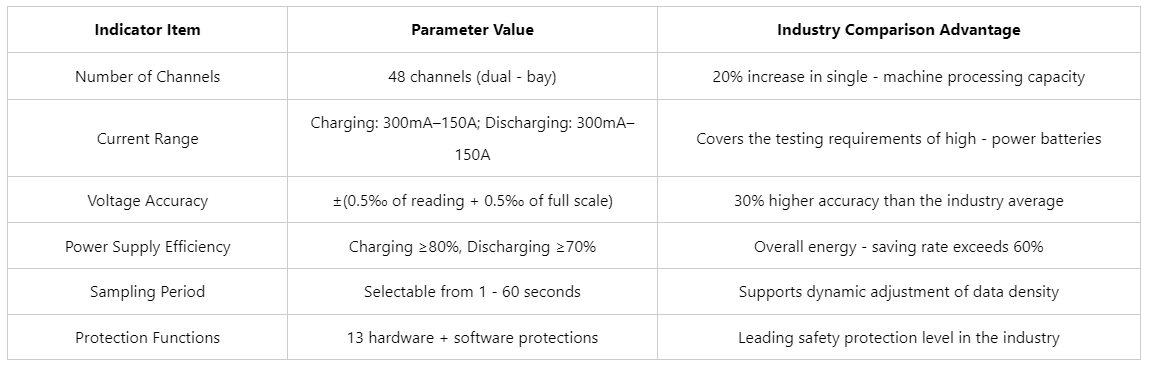

The A39-48/150A Bed-of-Nails Type Aluminum-Cased Power Battery Capacity Grading Equipment, is a highly precise automated device used specifically for the Li Ion Battery Capacity Tester. It is capable of testing 48 channels synchronously. Its main functions are to detect dynamically the parameters (voltage and capacity) of the battery during capacity grading, grade intelligently, and share data in the cloud. Using a bed-of-nails structure, the equipment can support customizable fixtures and trays to accommodate varying battery sizes (thickness: 5 - 16mm, tab spacing: 20 - 130mm). In the Battery Charge Discharge Test Equipment mode, through an independent constant-current and constant-voltage source, and a four-wire interface, this device can provide voltage/current accuracy (±0.5‰) and programming (for charging) 64 steps including constant-current and constant-voltage charging. In addition, the product has an energy feedback system, boasting a charging efficiency of ≥80% and an overall power-saving rate of greater than 60% energy consumption costs.



High Compatibility Bed-of-Nails Design: Customized fixtures refine the compatibility to aluminum-cased batteries, supporting 5 - 16 and a tab spacing of 20 - 130mm to meet the needs of any model of Lithium lon Battery Tester.Intelligent Safety Protection: 13 types of protection functions (reverse-connection protection and capacity outlier protection) combined with a smoke alarm, temperature monitoring on each layer to ensure the safe operation of the device. Efficient Data Management: Support docking with the MES system and automatically generate Excel reports, that can record in real-time voltage, current and other data, calculating the discharge efficiency, enhancing the efficiency of production traceability.







Power Battery Production Line: The synchronous test ability of 48 channels increases production efficiency in the power battery production line. Combined with high-precision capacity grading, it enhances the production consistency and yield rate in a lithium-ion battery formation equipment.Energy Storage System Intelligence: The broad specification compatibility supports fast screening of aluminum cased batteries, and the energy feedback technology aids in reducing the testing cost of energy storage battery packs.Laboratory R&D: The device is programmable up to 64 steps and in-depth data analysis functions will help craft battery optimization and verification of new materials, thus shortening research and development process time.
