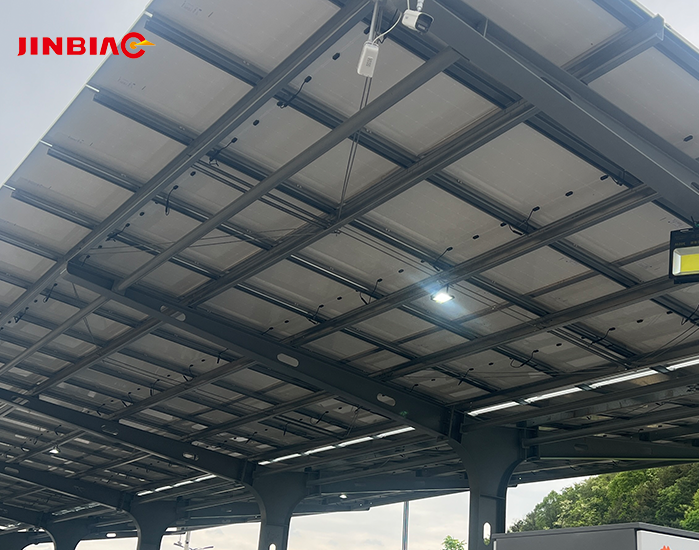

Solar carport top detail
4 week ago
1. Main Influencing Factors
*Vehicle passage requirements
Ordinary cars: It is recommended that the minimum height be 2.2-2.5 meters (including the support structure).
SUVs/medium-sized vehicles: The height needs to be 2.5-3 meters.
Trucks/buses: If parking is allowed, it needs to be 3.5 meters or more (depending on the actual needs of the shopping mall).
Fire lanes: It needs to comply with local fire regulations (usually ≥ 4 meters).
*Solar panel installation requirements
Tilt angle: Adjust according to the local latitude (the higher the latitude, the greater the tilt angle). For every 10° increase in the tilt angle, the carport height needs to be increased by an additional 0.5-1 meter.
Maintenance space: A 0.3-0.5 meter maintenance passage needs to be reserved at the top.
Shadow blocking: Avoid shading by adjacent carports or buildings, and calculate the solar altitude angle on the winter solstice.
*Structural safety and stability
Wind load/snow load: In areas with high wind pressure or heavy snowfall, the support structure needs to be reinforced, which may increase the overall height.
The distance between the columns: The greater the span, the higher the supporting structure may need to be (for example, a 6-meter span requires a stronger crossbeam).
