25 Metre Straight Boom Lift

2 week ago

1 0 

3 month

Product details

GK25 MAIN SPECIFICATION

Chassis parameters

Engine	WP2.3Q140E62
Rearview mirror	Left/right frame type new national standard rearview mirror (four mirror type)
Suspension	3/5+3HJ
Transmission case	WLY8GS46
Cab style	Classic Dream Chaser
Tank	Fuel urea integrated system (120L+25L)
Interior of the driver's cabin	Fully equipped driver's cab
BS+ASR	Equipped with ABS+ASR (including ASR switch)
Rear axle	3.5t (standard wheelbase) (drum)/4.875

Chassis parameters

Other standard equipment	Standard rear lower protection, car sticker (M3), parking wedge, central locking and electric doors and windows+remote key, automatic brake clearance adjustment device, triangular warning sign, VIN engraved on the right front of the frame, lightweight front lower protection, front and rear axle wear alarm device, aluminum alloy air cylinder, air dryer, adjustable headlights, National VI emission monitoring terminal, reflective vest, electric control air horn, color screen instrument panel, N2 (non city vehicles)
Paint	Ordinary paint for the cab
Clutch power assist	Equipped with clutch power assist
Spring brake	Equipped with spring brakes
Tyre	7.00R16 10PR high-strength steel wheel vacuum tire
The front axle	2.0t (drum type)

Aerial work platform parameters

Maximum homework

height

21m

Maximum working range

16m

Platform rated load

200KG

Arm rotation angle

360°

Platform size

1500mm*700mm*1100mm

Platform rotation range

±180°

Arm

7-section arm, 6-section synchronous extension and contraction,

with a spare wire rope for the wire rope exit arm. Even if the main

wire rope breaks, it can smoothly lower the person down

Operating system

A well-known domestic electronic control system equipped with

wireless remote control and third-party operation

Hydraulic system

Electro hydraulic proportional valve, capable of infinite speed

regulation, equipped with emergency power source

Hydraulic support leg

H-shaped legs, 4 telescopic legs, individually adjustable; Fully

enclosed legs for greater stability

Safety device

Get on/off interlock, limit protection, emergency power source,

bidirectional hydraulic balance valve

Crane parameters

Maximum lifting capacity	5000kg
Main winch	5T
Lifting arm	7 sections of upper arm
Maximum lifting height	21m
Rotating structure	360 degree arbitrary rotation
ower pump	Single pump

Transport vehicle parameters

Tablet size	3300mm*2100mm
Operation method	Medium operation

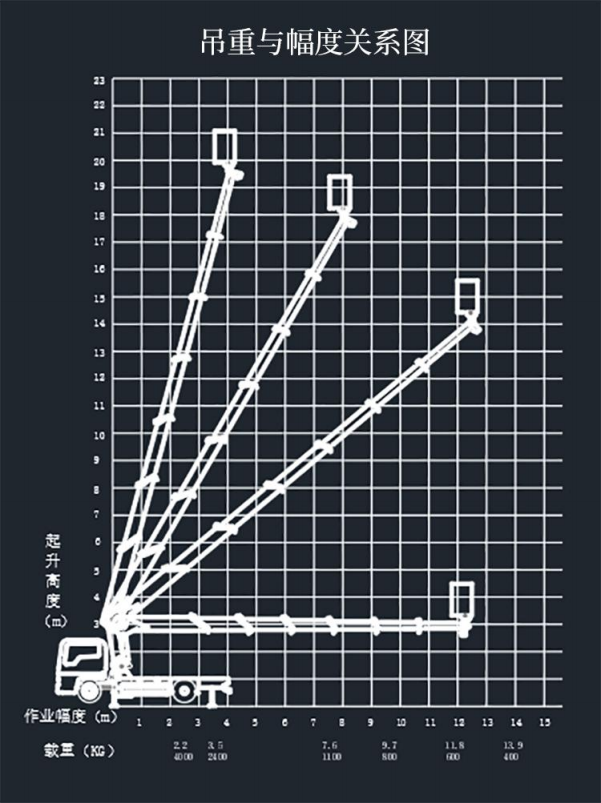

Lifting performance curve chart

Efficient and Safe Aerial Work

GK25 type straight-arm aerial work truck is a kind of engineering machinery and equipment designed for efficient and safe aerial work, which is widely used in construction, municipal engineering, power maintenance, bridge repair and other fields. Its maximum working height reaches 25 meters, which can meet the needs of high-altitude operation under a variety of complex working conditions. The telescopic arm design of the equipment makes it more stable and fast in the process of extension and contraction, greatly improving the working efficiency, ensuring the stability and safety of the equipment when carrying heavy objects, which is enough to meet the load requirements of most high-altitude operations.

Advanced control system

In terms of operational performance, the GK25 model straight-arm aerial work vehicle is equipped with an advanced control system, which greatly reduces the difficulty and labor intensity of operation. The device also has a number of safety protection features to ensure the safety of operators and equipment. Its compact body design and good passability enable it to move flexibly in narrow construction sites and complex road conditions, further improving the applicability and convenience of the equipment. With its excellent performance, reliable quality and excellent safety, the GK25 straight-arm aerial work vehicle has become the ideal choice in the field of aerial work, providing efficient and safe solutions for various aerial work tasks.

We independently design and manufacture the following four major product categories:Lifting Machinery: Truck crane, folding boom and straight boom truck-mounted crane, spider crane, rough-terrain crane, and fast-erecting tower crane.
