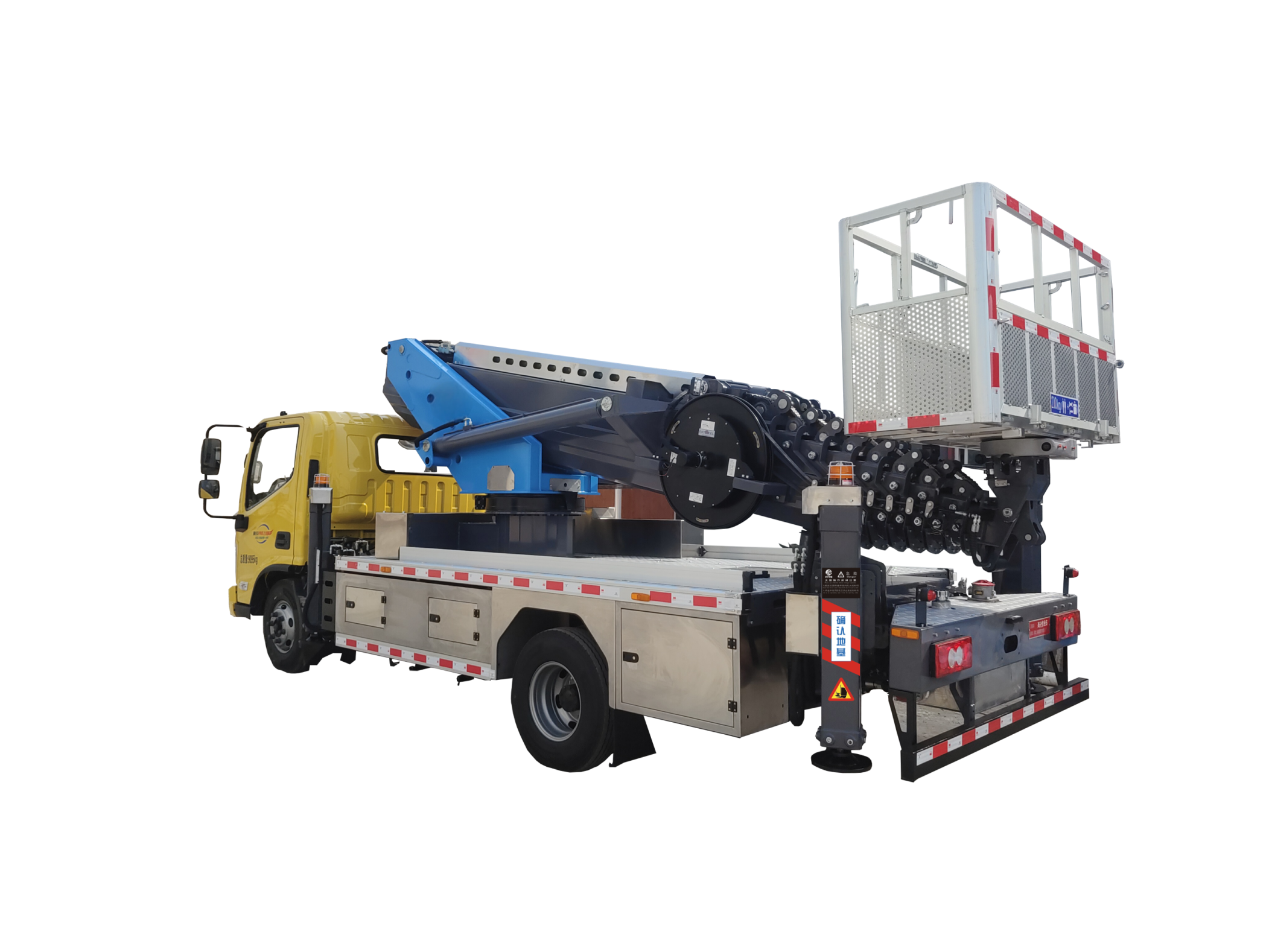

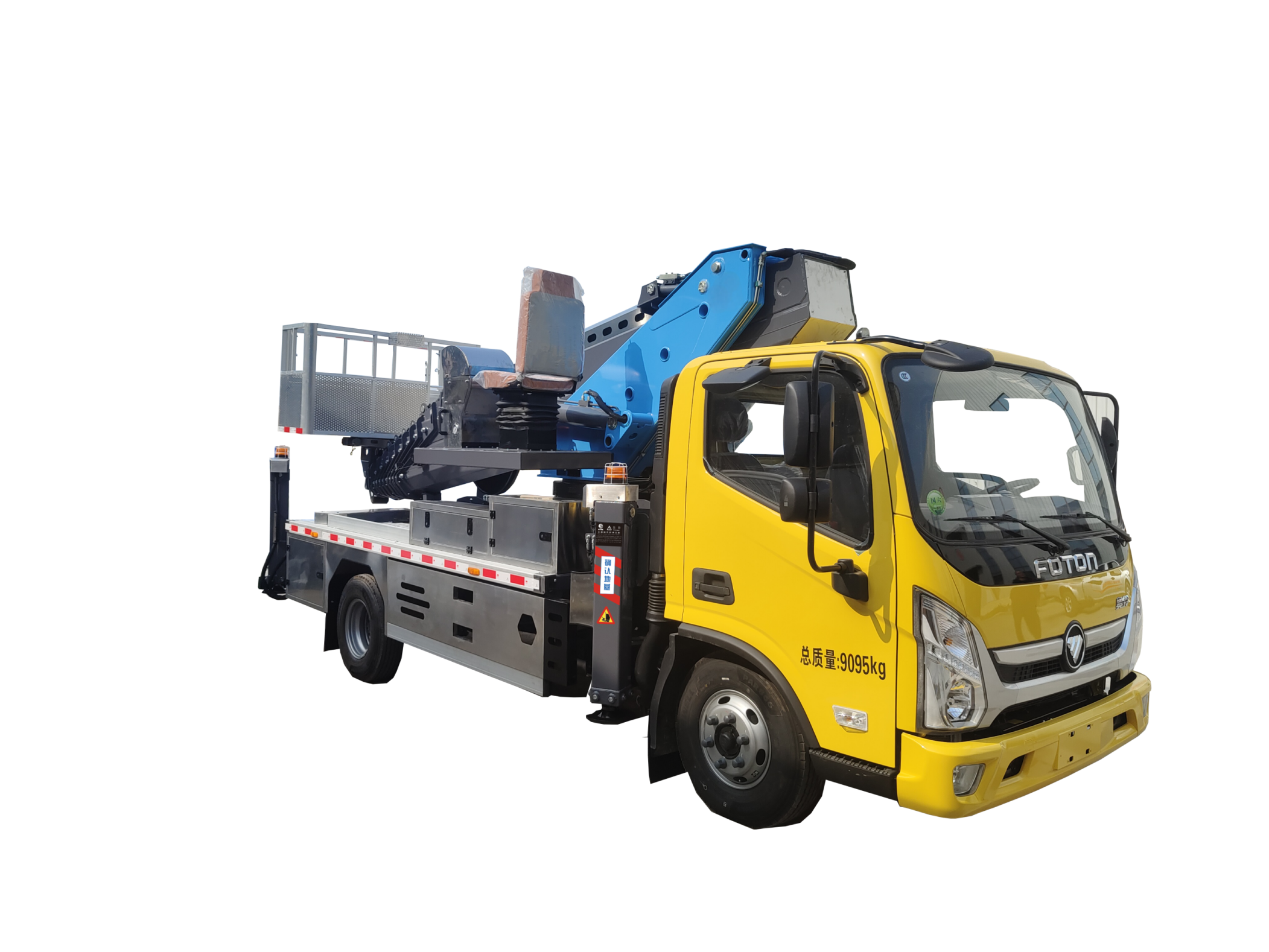

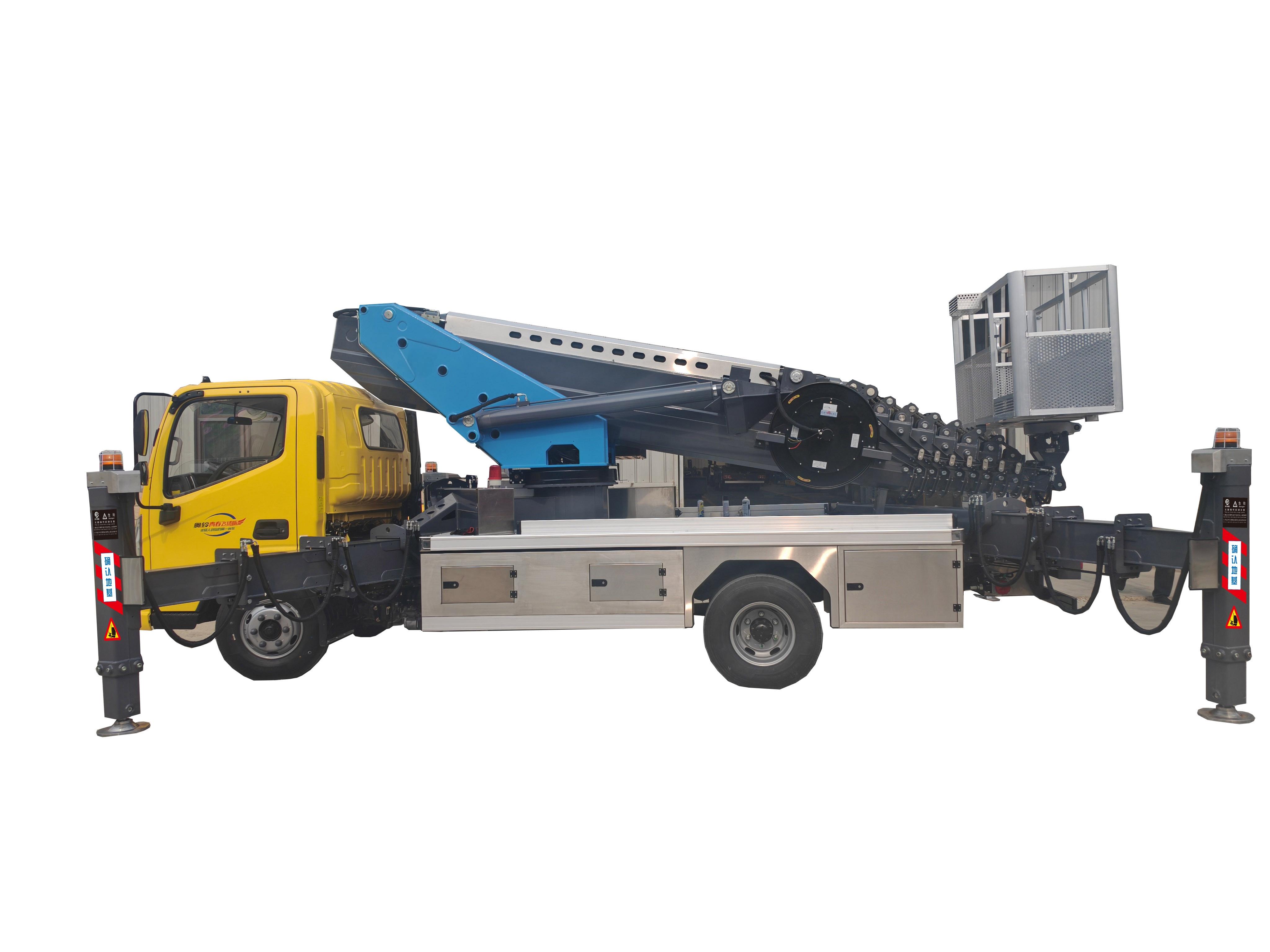

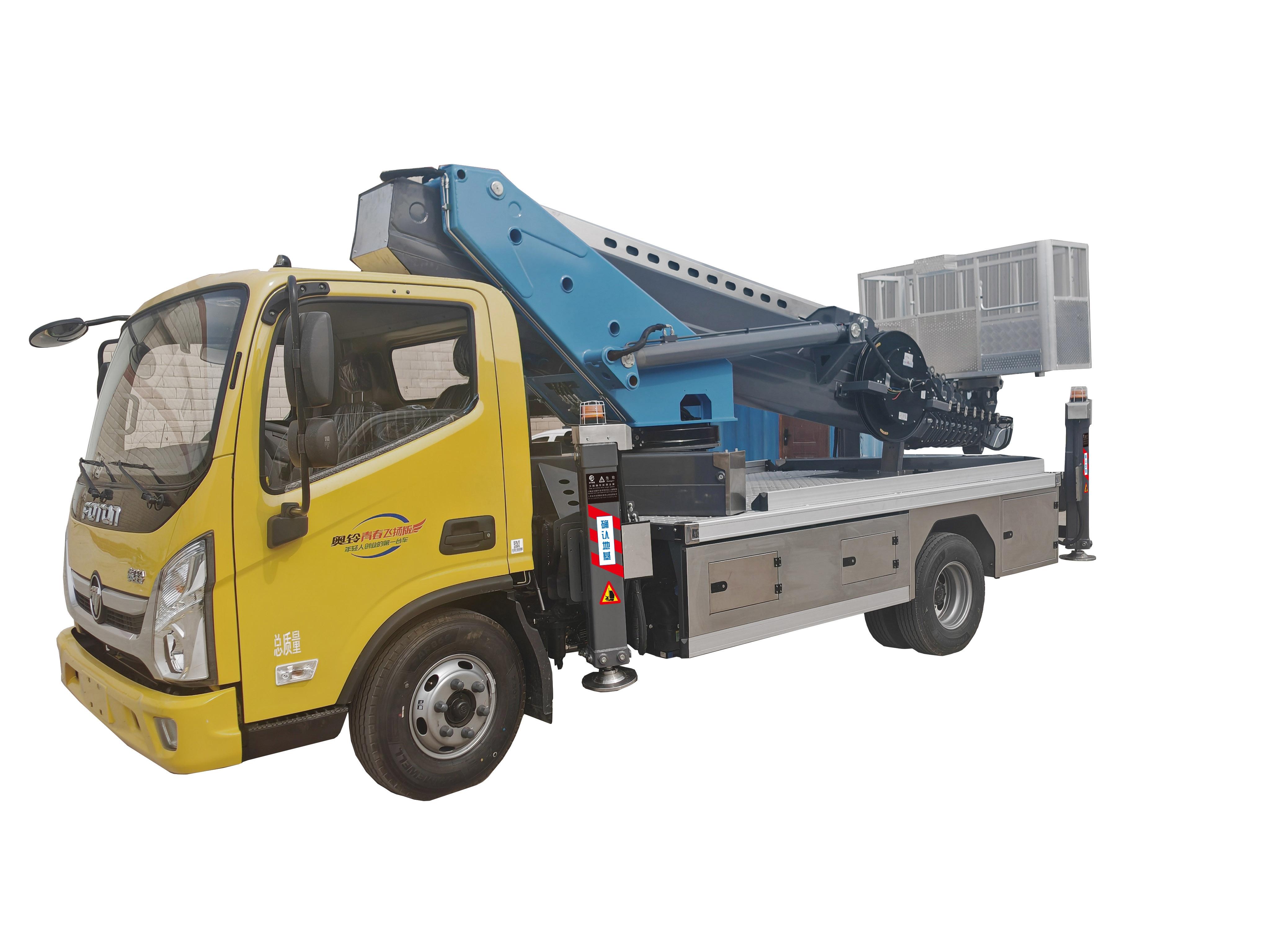

38 Metre Aerial Work Platform

                                                                                      Gk38 main specifications

Chassis and Engine:
Chassis: National VI Foton Olin special chassis
Engine: Cloud 150 HP turbocharged engine
· Braking system: air braking + air cutoff braking
Transmission: Fast 5 speed high/low speed transmission
· Steering system: power steering, multi-functional steering wheel
• Cabin features: Luxury widebody cab, ABS, power Windows, factory installed air conditioning (hot and cold)
★ Wheelbase: 3600mm
Vehicle weight: 9.7 tons
· License type: Yellow card, 9.1 tons notice

Boom System:
· Arm segment: 10 arm segments, 9 extended at the same time
· Boom mechanism: double chain extension design
· Structural design: 15 ridge design (patent), working deflection of 18°
Material: Baosteel E960S high strength steel
Vehicle size: 7200 × 2250 × 2860mm (length × width × height)
· Industry-leading height: allows smooth entry and exit under height restrictions
◆ Coating: full electrophoretic electrostatic powder spraying process

Leg system:
● Type: "X-shaped" overhang arm, span 7400/7700mm
· Soft leg protection: equipped with soft leg protection
· Telescoping system: three-stage synchronous telescoping

Rotation control system:
· Main rotating platform: 25 inch worm wheel 360° rotation, smooth and stable
· Turntable rotation: 9-inch large turntable, 360° infinite rotation
· Standard wind speed sensor
 explosion-proof system:
All hydraulic cylinders are equipped with explosion-proof valves
o Imported American SUN hydraulic balance valve (with Xugong)
Unique unloading valve technology
Control System:
Cyber/Beijing Shengweihua electronic control system
Electro-hydraulic proportional control
Lower car LCD display
O150m remote control with real-time working status display

Hydraulic components:
Xuzhou black and white dragon slider
Xuzhou Yanhua/Haixia hydraulic cylinder (XCMG supplier)

Basket System:
Size: 1600 × 700 × 1050mm (length × width × height) aluminum alloy
Load capacity: 300kg
· Rotation: 9 inches 360° unlimited rotation
· Power supply: Equipped with 220V power supply
· Self-leveling technology: hydraulic self-balancing system is adopted

ACEDO's 38m aerial work platform offers industry-leading technology, safety and efficiency, making it the ideal solution for high-altitude work.
