M51 125°wide angle opening and 5° buffering soft close hinge

3 week ago

1 0 

Foshan Nanhai Ranming Lijiali Hardware Co., Ltd

11 month

Product details

Product Introduction

The LIJIALI 125° wide-angle hinge represents a new standard in cabinet hardware—combining user safety, structural stability, and superior performance. Designed with an advanced 5° micro-buffering mechanism, it effectively prevents accidental finger pinching during operation, ensuring a safer and more user-friendly experience.

This two-way opening and closing hinge allows greater flexibility for various cabinet configurations, while its smooth and silent soft-close function enhances the overall quality and comfort of use. Manufactured with exceptional precision, each hinge undergoes strict quality control to guarantee consistent performance and extended product life, even after 50,000 open-close cycles—surpassing international durability standards.

Product Highlights:

•125° Extra-Wide Opening

Offers enhanced accessibility, allowing contents to be fully visible and easily reachable.

•5° Soft Close Buffering

Triggers a gentle slow-down at a small angle to protect users from accidental hand injuries.

•Premium Materials & Finish

Constructed from 2mm thick cold-rolled steel and zinc alloy cast components for superior strength and durability. Finished with an electroplated coating for excellent corrosion resistance.

•High Corrosion Resistance

Passes 48-hour neutral salt spray testing, ensuring reliable performance even in high-humidity environments such as kitchens and bathrooms.

•Quiet Hydraulic Damping

Features a built-in imported POM damper, delivering a smooth and quiet closing experience every time.

•Advanced Structural Stability

Seven-rod linkage design enhances load-bearing capacity and long-term reliability.

•3D Adjustment Mechanism

Integrated screw-nut system allows for three-dimensional adjustment, simplifying installation and ensuring a precise, flush fit between cabinet door and frame.

•Wide Compatibility

Suitable for cabinet doors ranging from 18mm to 30mm in thickness, meeting diverse application requirements.

Engineered for Excellence

With its sleek, modern design and superior mechanical performance, the LIJIALI 125° hinge not only enhances the functionality of the cabinet but also elevates its aesthetic appeal—making it the ideal choice for high-end residential and commercial furniture applications.

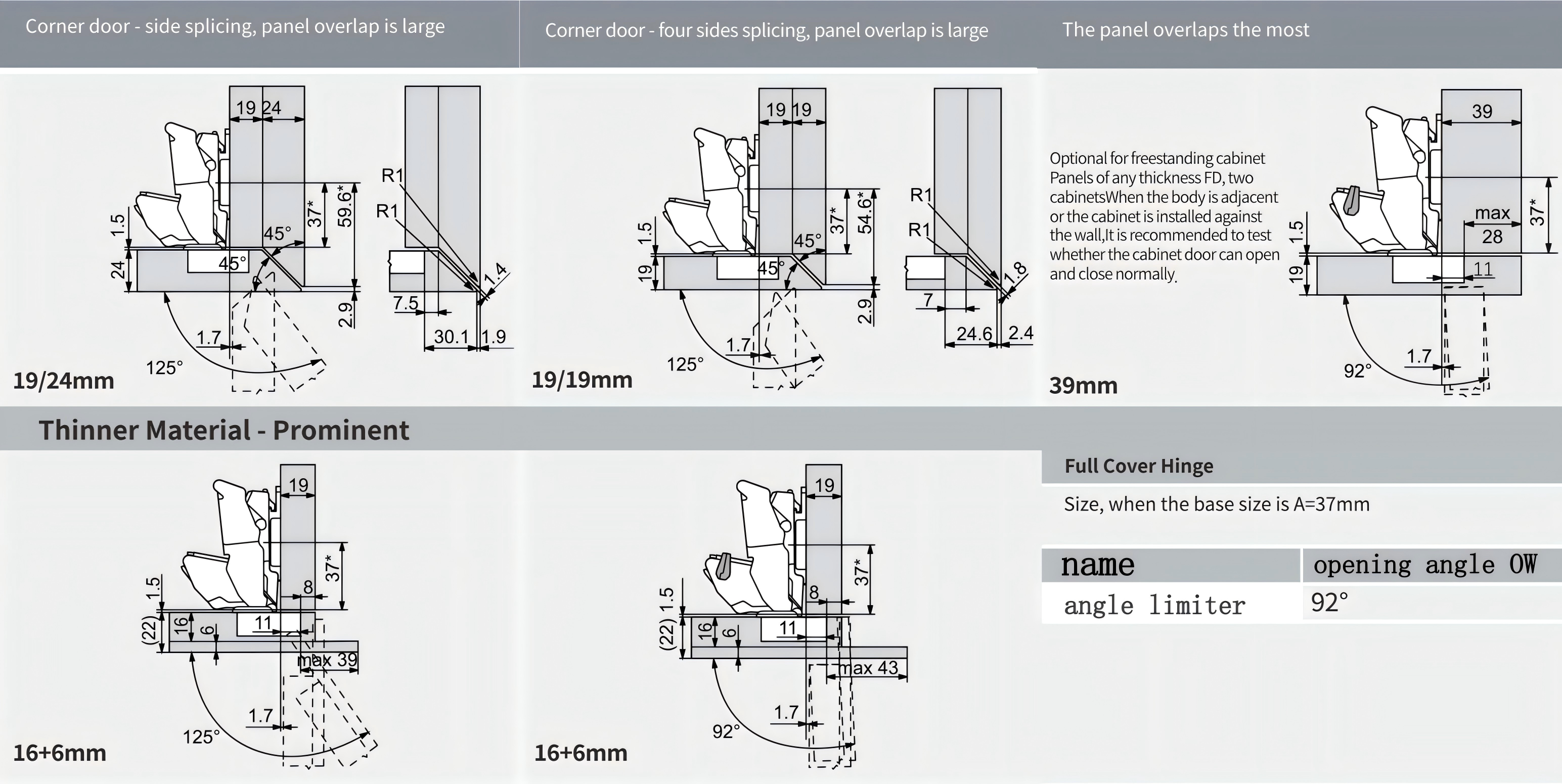

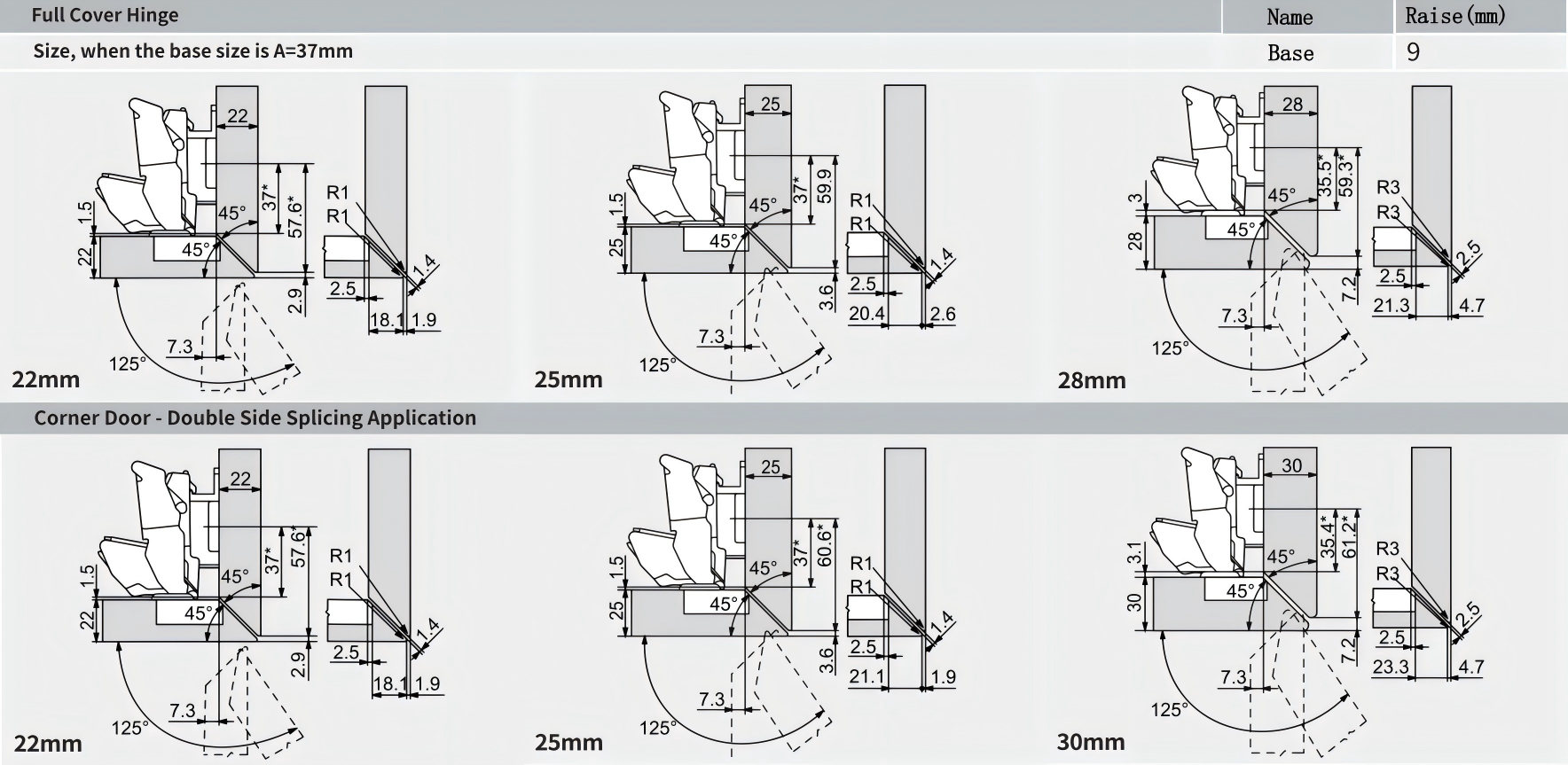

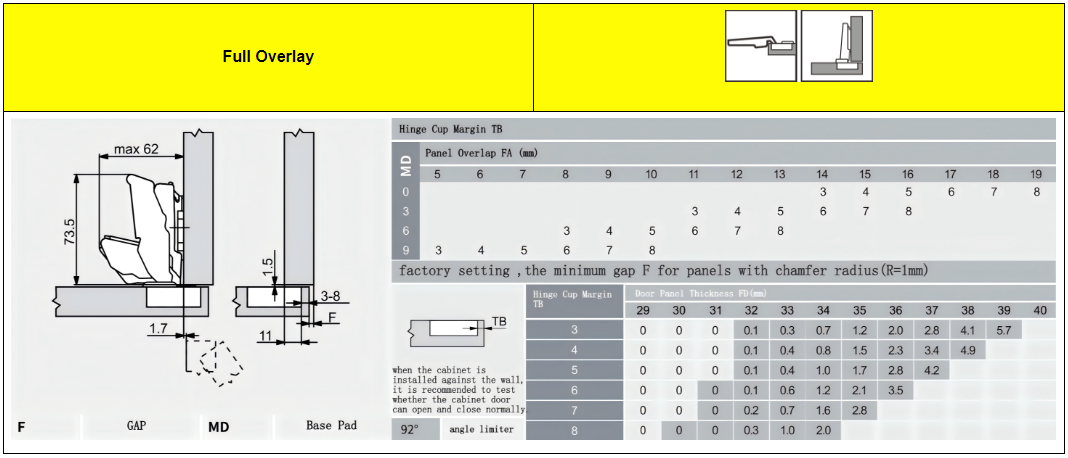

Product Parameters

125°wide angle opening and 5° buffering soft

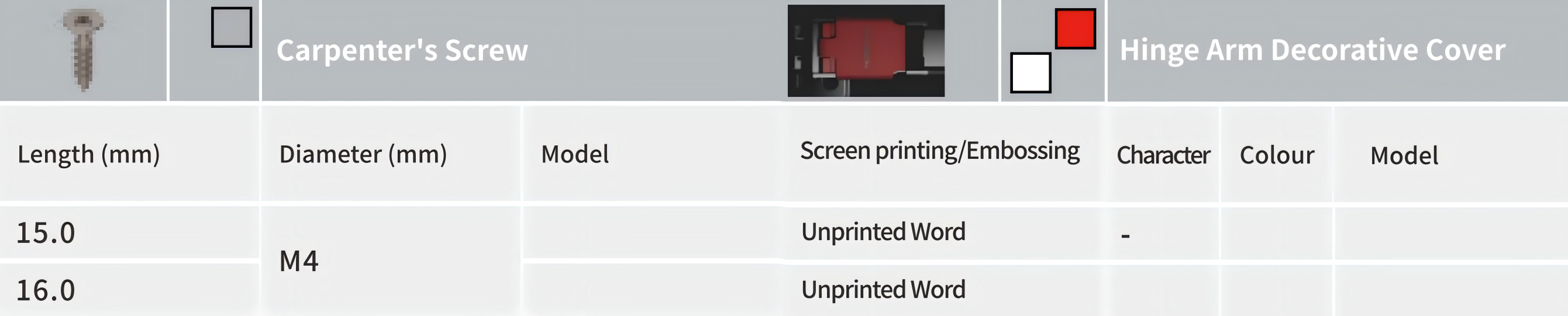

Optional Accessories

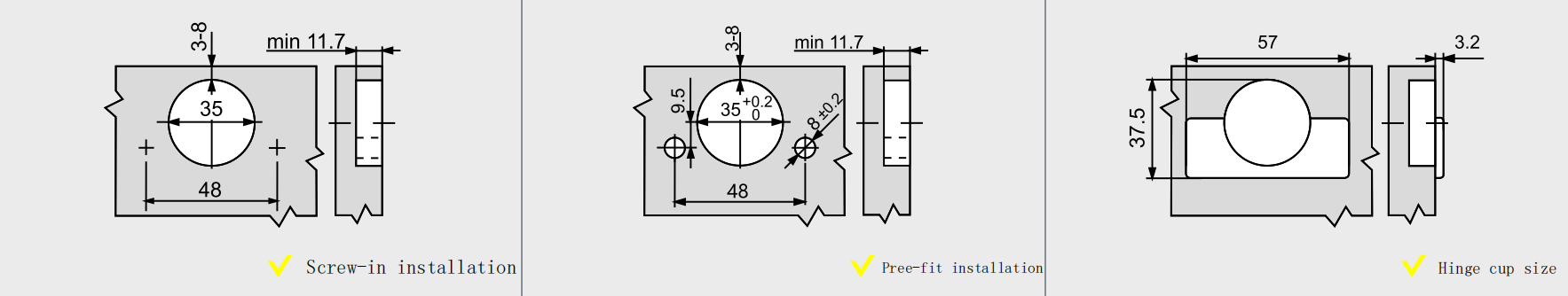

Opening Size Of Hinges Cup

Special Application

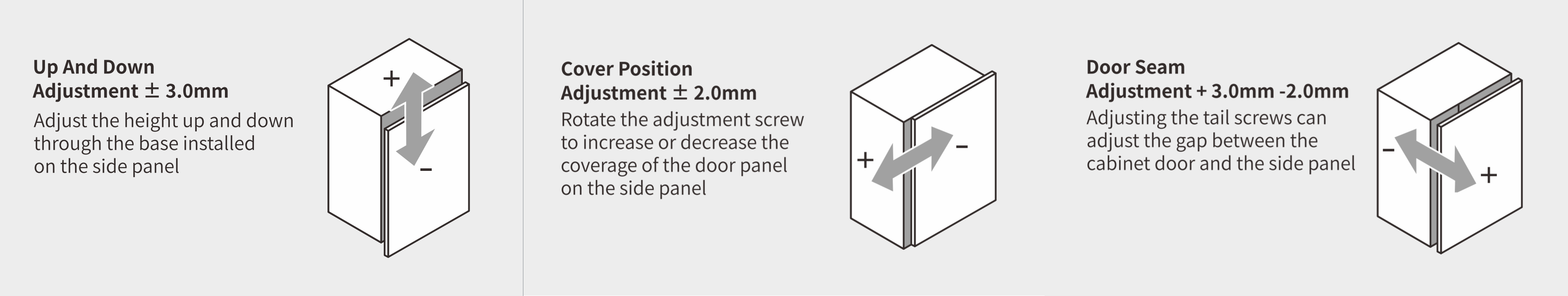

Adjustable Range

For more detail information or get access to the latest design of our products, feel free to contact us. We have more other options such as furniture dampers, furniture hinges, rebound device, soft close drawer slides, furniture hardware, welcome to contact for more!
