12/10 STAH Horizontal Pumps for Abrasive Fluids

Naipu Pump produce the slurry pump which is the cantilever, horizontal and centrifugal ones. Corrosion Slurry Pumps are designed for a wide range of erosive and corrosive applications. Coal Mine Slurry Pump are generally used for slurries containing high concentrations of erosive solids or where an extremely robust and heady duty pump is required.

Horizontal Centrifugal Pump, Coal Mine Slurry Pump, Corrosion Slurry Pump, Slurry Pump Impeller, Pump Spare Parts, OEM Slurry Pump, OEM Pump Parts.

AH slurry pumps

AH Slurry Pump Construction

AH Mining Pump

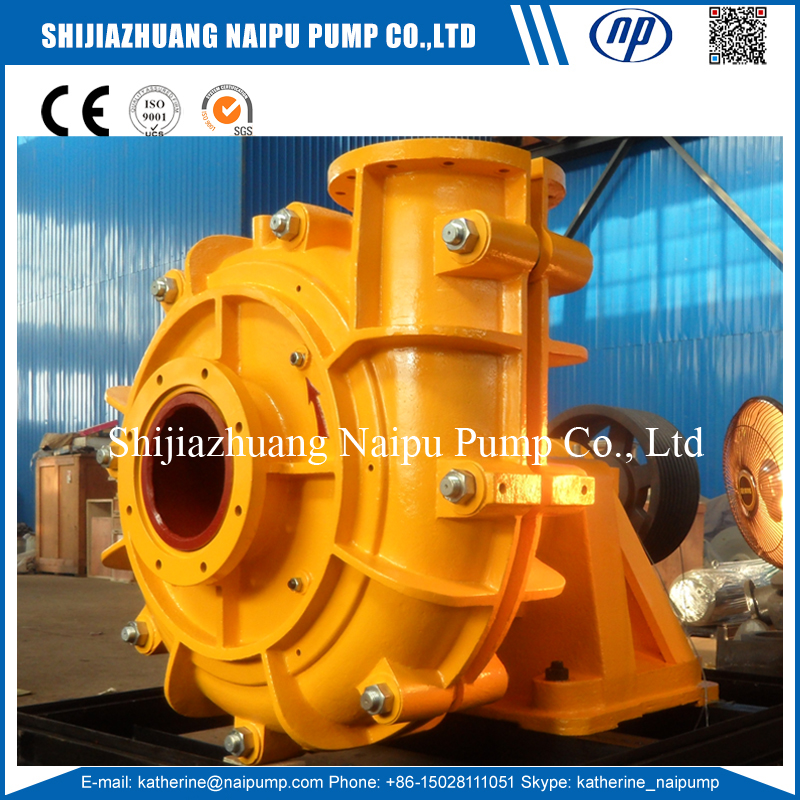

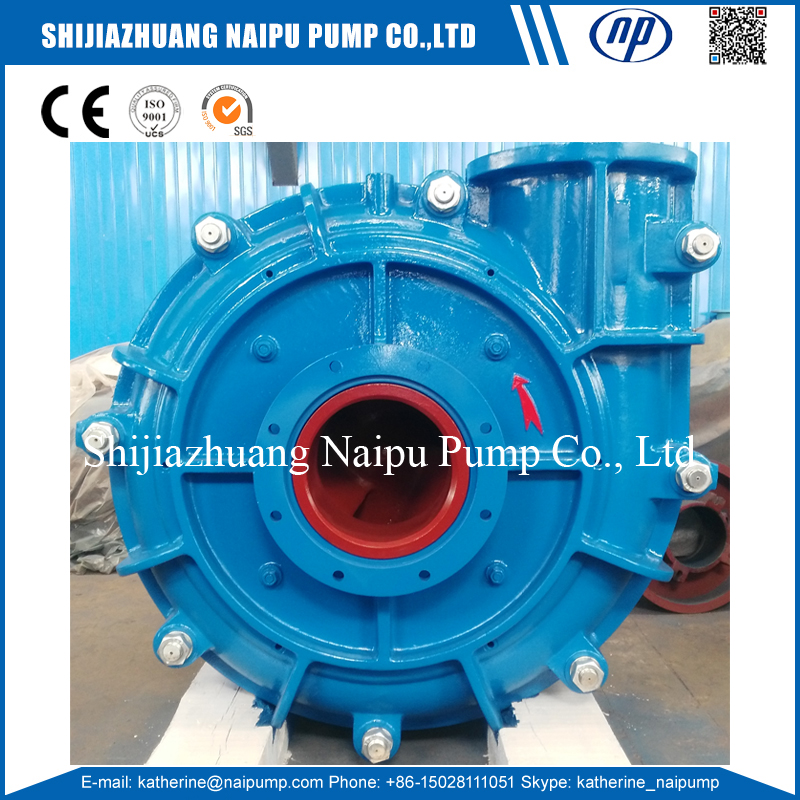

12/10 ST-AH Horizontal Slurry Pump

Index	Value
Products Name	12/10 ST-AH Horizontal Centrifugal Pump
Inlet Dia (mm)	300
Outlet Dia (mm)	250
Flow (m3/h)	936-1980
Head (m)	7-68
Max Power(kw)	560
Material	High Chrome A05
Drive Type	CV / ZVz / CRz/ DCz
Drive Engine	Motor or Diesel
Seal Type	Packing Seal , Expeller Seal, Mechanical Seal
Payment Term	TT , LC, or Negotiate
Original	ShiJiaZhuang , Hebei China
Supply Range	Slurry Pump , Motor , Base Plate,Guard, v-belt , Pulley
Weight	4318 kg

10 inch pump

NP-AH Horizontal Slurry Pump Performancce Parameters

Type	Max Power (Kw)	Clear Water Performance					Impeller
		Capacity /m³/hr	Head /m	Speed/rpm	Max Efficiency /%	NPSH /m	Nos of Vane	Diameter /mm
1.5/1 B-AH	15	12.6-28.8	6-68	1200-3800	40	2-4	5	152
2/1.5 B-AH	15	32.4-72	6-58	1200-3200	45	3.5-8	5	184
3/2 C-AH	30	39.6-86.4	12-64	1300-2700	55	4-6	5	214
4/3 C-AH	30	86.4-198	9-52	1000-2200	71	4-6	5	245
6/4 D-AH	60	162-360	12-56	800-1550	65	5-8	5	365
8/6 E-AH	300	360-828	10-61	500-1140	72	2-9	5	510
10/8 F-AH	560	612-1368	11-61	400-850	71	4-10	5	686
12/10 ST-AH	560	936-1980	7-68	300-800	82	6	5	762
14/12 ST-AH	560	1260-2772	13-63	300-600	77	3-10	5	965
16/14 TU-AH	1200	1368-3060	11-63	250-550	79	4-10	5	1067
20/18 TU-AH	1200	2520-5400	13-57	200-400	85	5-10	5	1370
