40A 12/24V automatic switch manual pwm solar charge controller MPPT with fashion design big scream controller1

3 year ago

2 0 

GuangZhou HanFong New Energy Technology Co. , Ltd.

3 year

Product details

40A 12/24V automatic switch manual pwm solar charge controller MPPT with fashion design big scream controller

Product Details

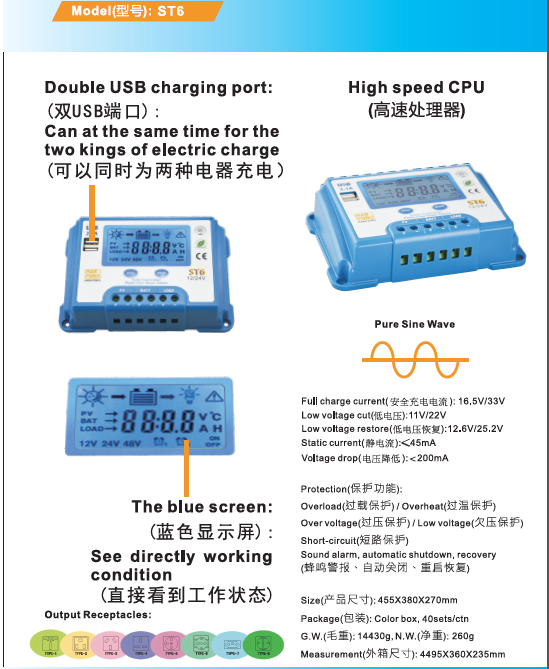

ST6 Series Solar Charge Controller

12V 40A PWM Solar Charge Controller, housing appearance, innovative design, using a big screen digital display with blue back light and double USB charging port. 40A 12/24V automatic switch manual pwm solar charge controller MPPT with fashion design big scream controller is suitable for all types of solar panels, various types of batteries, MCU (micro-controller) with a PWM (Pulse Width Modulation) 0 ~ 100% variable duty cycle process. To provide fast, optimum charging voltage and current according to the actual charging situation and the type of battery. Real-time display (LED lights) battery capacity.40A 12/24V automatic switch manual pwm solar charge controller MPPT with fashion design big scream controller Safe, reliable and efficient.

Product Introduction

we can do car inverter , power inverter ,solar inverter

Product Parameters

Model	ST5-30	ST5-40
Rated voltage	12V/24V Automatic voltage recognition
Max charge current	30A	40A
Max discharge current	30A	40A
Full charge cut	16.5V/33V
Low voltage cut	11V/22V
Low voltage restore	12.6V/25.2V
Temperature compensation	-3mv/℃/cell
Static current	≤45mA
Voltage drop	<220mv
Wire area max	6mm2
Net Weight	620g
Gross Wight	18.27kg
Size	194.10133.6760.18mm
Packing quantity	24pcs/carton
Carton size	450420310mm

Product Details Show

Why Choose Us

About us

1, the company professional to do carbon and solid fuels.

Equipment & technology

2, the quality of solid fuel and production is the biggest supplier in

Service

3, stable product quality , supply, the good faith management

Product Processing

Product Packing
