5mm red led with clear lens
3 year ago
- 5mm Red Through-Hole LED -
503FRC62D3L14

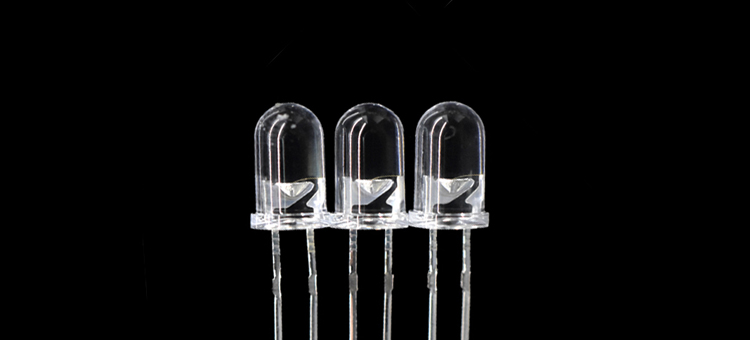

503FRC62D3L14 is a brightest red thoruhgh-hole LED with 5mm lens size in the LED industry. If you need some ultra bright red LED lamp, this one is dope. On the other hand, the viewing angle of the LED lamp can also effect the emitting light. In this case, you can also ask for different viewing angle for your application, normally, the more small angle you got, the longer emitting distance you get in this 5mm red LED lamp.
These awesome LED not only application in the LED lighting application but also with some LED lighting fiber ect. Do you need some ultra bright red LED lamp？ Please contact us for more information.
- Size: 5mm Diameter 8.7mm High
- Pin length: 29mm
- Color: Red LED
- Type: Red Clear
- Chip brand: Epistar
- Different color are available
- Different wavelength are available
- Warranty: 5 Years
- RoHS, REACH, EN62471
- Uniform light output
- Long life-solid state reliability
- Low Power consumption
-Anti UV epoxy resin package
-High temperature resistance

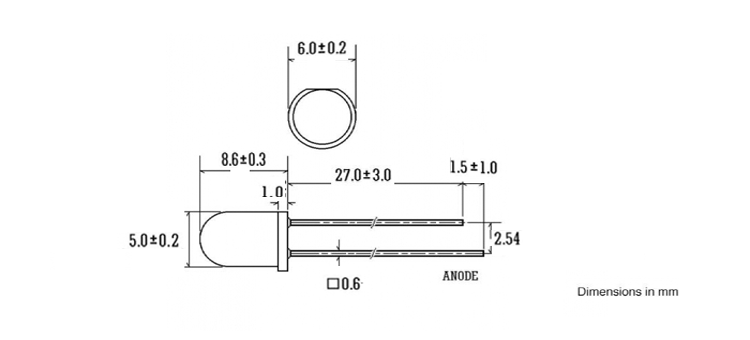

-Dimension Parameters -
*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.
These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.
- Electrical Parameters -
Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
70
mW
Pulse Forward Current
IFP
100
mA
Forward Current
IF
≤70
mA
Reverse Voltage
VR
5
V
Junction Temperature
Tj
100
°C
Operating Temperature
Topr
-40 ~ +80
°C
Storage Temperature Range
Tstg
-40 ~ +100
°C
Soldering Temperature
Tsol
260
°C
Electro Static Discharge(HBM)
ESD
2000
V
Service life under normal conditions
Time
80000
H
Warranty
Time
2
Years
Antistatic bag
Piece
1000
Bag
Parameter
Symbol
Min
Typ
Max
Unit
Test
Condition
Forward Voltage
VF
1.8
2
2.4
V
IF=20mA
Luminous Intensity
IV
20000
30000
mcd
IF=20mA
Peak Wavelength
λP
633
nm
IF=20mA
Dominant Wavelength
λd
620
625
630
nm
IF=20mA
Half Width
Dl
14
nm
IF=20mA
Viewing Half Angle
2q1/2
±10
deg
IF=20mA
Reverse Current
IR
5
uA
VR=5V
- Golden Wire Connection -
*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection
- Packing -
*We package this LED with 1000pcs in a bag Normally. We also can package it as your requirement.
- Application -
- Related Red LED -
- Production -
- Use -
